Sell your Mazak SLANT TURN 500MII/3000U today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

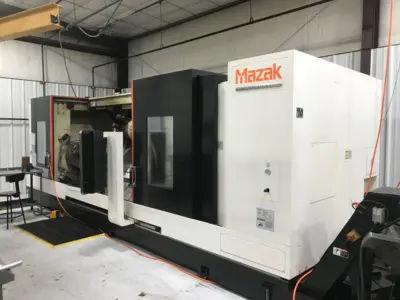

Make: Mazak
Model: SLANT TURN 500MII/3000U
Year: 2012
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak SLANT TURN 500MII/3000U Specifications

Swing Over Bed: 40.9"
Turning Diameter: 36"
Machining Length: 126.38"
Distance Between Centers: 126.38"
Chuck Size: 18"
Spindle Nose: A2 - 15
Spindle Bore Diameter: 7.28"
Spindle Bar Capacity: 7.2"
Spindle Speeds: 1600 RPM
Spindle Horsepower: 60 HP
Spindle Torque: 5163 FT. - LBS.
X - Axis Travel: 18.25"
Z - Axis Travel: 129.875"
C - Axis Travel: .001 DEGREE
Rapid Traverse Rates X1: 787 IPM
Rapid Traverse Rates Z1: 945 IPM
Turret Configuration: 24
Turret Rotary Tool Spindle Speed: 4000 RPM
Turret Rotary Tool Horse Power: 15 HP AC
Tailstock Quill Diameter: 8"
Tailstock Taper: MT 6
Programmable Tailstock: YES
Tailstock Travel: 126.75"
Machine Weight: 41,667 LBS.

Do you have a Mazak SLANT TURN 500MII/3000U to sell?

We are actively seeking a 2012 MAZAK SLANT TURN 500MII/3000U 2-Axis CNC Lathe. This impressive machine features a swing over bed of 40.9 inches and a turning diameter of 36 inches, making it suitable for a variety of machining tasks. With a machining length and distance between centers of 126.38 inches, it provides ample space for larger components. The lathe also boasts an 18-inch chuck size and a spindle nose of A2 - 15, ensuring secure workpiece clamping. The MAZAK SLANT TURN 500MII/3000U is equipped with a powerful spindle that operates at speeds of up to 1600 RPM and delivers 60 horsepower.

Its spindle torque of 5163 ft-lbs ensures that it can handle demanding machining operations with ease. The X-axis travel measures 18.25 inches, while the Z-axis travel is an impressive 129.875 inches, allowing for versatile machining capabilities. Additionally, the C-axis travel is precise to .001 degrees, enhancing the machine's accuracy. For rapid movements, this lathe features rapid traverse rates of 787 IPM on the X-axis and 945 IPM on the Z-axis, significantly reducing cycle times. The turret configuration includes 24 stations, with a rotary tool spindle speed of 4000 RPM and a 15 HP AC motor, which adds to its versatility and efficiency in a production environment.

The tailstock is also programmable, with a quill diameter of 8 inches and a taper of MT 6, providing additional support for longer workpieces. Many sellers choose to part with their machines like the MAZAK SLANT TURN 500MII/3000U due to various reasons such as upgrading to newer technology, downsizing operations, or even closing down facilities. If you own a 2012 MAZAK SLANT TURN 500MII/3000U or a similar model, we invite you to reach out. Let us help you turn your equipment into cash quickly and efficiently.
