Direct procurement2012 Model

Sell your Mazak SLANT TURN NEXUS 500M today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

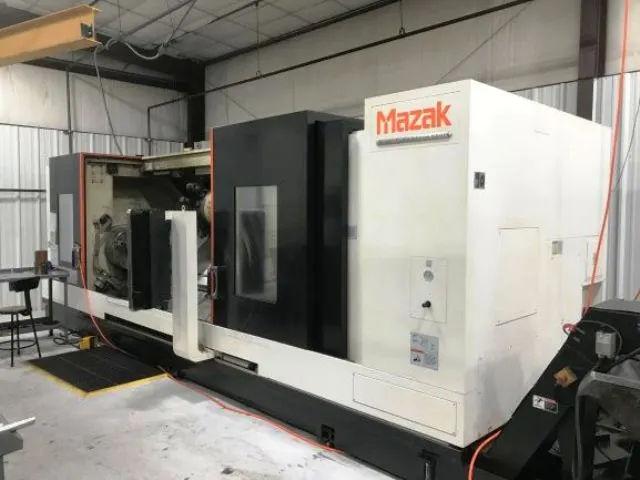

Make: Mazak
Model: SLANT TURN NEXUS 500M
CNC Control: CNC (MAZATROL MATRIX)
Year: 2012
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak SLANT TURN NEXUS 500M Specifications

Maximum Swing: 40.9"
Max Turning Diameter: 36"
Main Spindle Bore/Max Bar Capacity: 7.28/ 7.28
Distance Between Spindles: 126.38"
X-Axis Travel: 18.25"
Z-Axis Travel: 129.9"
C-Axis Indexing: .001
Main Spindle Chuck Size: 18"
Main Spindle Speed: 1,600 RPM
Main Spindle Horsepower: 60
Turret Tool Positions: 24
Turret Rotary Tool Spindle Speed: 4000
Turret Rotary Tool Horse Power: 15
Steady Rest: Yes
Chip Conveyor: Yes
Tool Eye Automatic Front Spindle: Yes
Coolant Thru Milling Head: No
Control: CNC (MAZATROL MATRIX)
Weight: 41,667 LBS
Tail Stock/Sub Spindle: Tail Stock
Main Spindle Chuck Type: Air
Main Spindle Bore Diameter: 7.28"
Main Spindle Maximum Bar Work: 7.28"
Turret Configuration: 24
Tailstock Quill Diameter: 8"
Tailstock Taper: MT 6
Programmable Tailstock: YES
Tailstock Travel: 126.75"
Spindle Nose: A2 - 15
Spindle Torque: 5163 FT. - LBS.
Rapid Traverse Rates: 787 IPM, 945 IPM
Machine Weight: 41,667 LBS.

Do you have a Mazak SLANT TURN NEXUS 500M to sell?

We are actively seeking a 2012 MAZAK SLANT TURN NEXUS 500M Slant Bed Lathe. This impressive machine features a maximum swing of 40.9 inches and a turning diameter of 36 inches, making it a robust choice for various machining tasks. With a distance between spindles of 126.38 inches, it allows for extensive workpieces, and the main spindle bore diameter of 7.28 inches enables handling of substantial bar work. The MAZAK SLANT TURN NEXUS 500M is equipped with a powerful 60 HP spindle that operates at a maximum speed of 1,600 RPM, ensuring efficient material removal and precision machining. The turret tool positions, offering 24 stations, allow for diverse tooling options, while the turret rotary tool spindle speed of 4,000 RPM enhances productivity for complex machining operations.

Additionally, the machine's design includes a steady rest and a chip conveyor, which streamline the machining process and maintain workplace cleanliness. The CNC control system, featuring the MAZATROL MATRIX, provides ease of use and programming capabilities that many shops appreciate. With an X-axis travel of 18.25 inches and a Z-axis travel of 129.9 inches, this lathe is versatile enough for various applications. Sellers often part with machines like the MAZAK SLANT TURN NEXUS 500M for several reasons. Many are upgrading their equipment to newer models to improve efficiency or take advantage of advanced technology.

Others may be downsizing their operations or closing facilities altogether, leading to the need for liquidating assets. In some cases, machines are underused and no longer meet the current production demands of the shop. At Superior Machine Tools, we are committed to making the selling process as smooth and beneficial as possible for our clients. If you have a 2012 MAZAK SLANT TURN NEXUS 500M or similar equipment, reach out to us today to get an offer and see how we can assist you in your selling journey.
