Direct procurement2004 Model

Sell your Mazak NEXUS 250MS today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

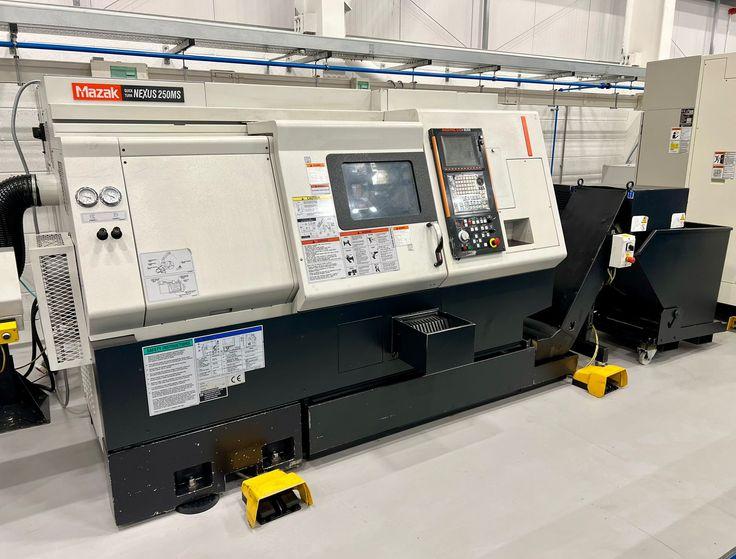

Make: Mazak
Model: NEXUS 250MS
Year: 2004
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak NEXUS 250MS Specifications

Swing Over Bed: 26.57''
Max Cutting Diameter: 14.75''
Max Cutting Length: 21.28''
Spindle Bore: 3.46''
Chuck Size: 10''
Main Spindle Speed: 4000 RPM
Main Spindle Power: 35 HP AC
Second Spindle Speed: 6000 RPM
Second Spindle Power: 10 HP AC
Second Spindle W-axis: 23''
X Axis Travel: 9''
Z Axis Travel: 22.625''
Rapid Traverse Rate X: 1181 IPM
Rapid Traverse Rate W: 1181 IPM
Rapid Traverse Rate Z: 1299 IPM
C Axis Travel Main: 400 RPM
Turret Positions: 12 TRT
Boring Bar Type: 1.25''
Rotary Tool Speed: 25-4500 RPM
Rotary Tool Power: 7.5 HP AC
Machine Weight: 13,330 lbs.

Do you have a Mazak NEXUS 250MS to sell?

We are actively seeking a 2004 MAZAK NEXUS 250MS Live Tooling Lathe. This advanced CNC lathe is designed to elevate your machining capabilities with its robust features and impressive specifications. Capable of handling a swing over bed of 26.57 inches and a maximum turning diameter of 14.75 inches, this model is ideal for precision work. With a maximum machining length of 21.28 inches and a spindle bore of 3.46 inches, the NEXUS 250MS provides versatility and efficiency in various machining tasks. Equipped with a 10-inch chuck size, this lathe features a main spindle with C-axis control capable of .0001 N/C for meticulous operations.

The main spindle speeds reach up to 4000 RPM powered by a 35 HP AC motor, ensuring you get the performance needed for demanding projects. Additionally, the second spindle operates at speeds of 6000 RPM with a 10 HP AC motor, providing substantial support for complex machining processes. With an X-axis travel of 9 inches and Z-axis travel of 22.625 inches, this machine allows for significant movement and adaptability during operations. With rapid traverse rates of 1181 IPM for the X and W axes and 1299 IPM for the Z axis, you can expect swift and efficient cycles. The turret positions, featuring a modified VDI design, allow for 12 tool placements, enhancing your operational efficiency.

The rotary tool speed ranges from 25 to 4500 RPM, powered by a 7.5 HP AC motor, making it suitable for a variety of applications. Sellers often part with machines like the MAZAK NEXUS 250MS for various reasons, including upgrading to newer models, downsizing operations, or due to plant closures. If you're ready to sell your 2004 MAZAK NEXUS 250MS Live Tooling Lathe, reach out to us today, and let us help you through the selling process with ease and confidence.
