Make: Mazak
Model: INT300IVST
Year: 2006
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

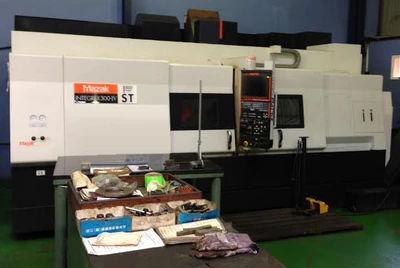

Mazak INT300IVST Specifications

Swing Over Bed: 30.0''
Maximum Machining Diameter: 30.0''
Maximum Cutting Length: 60''
Spindle Bore Main: 3.46''
Spindle Nose: A2-8
Bar Capacity: 3.0''
Spindle Speeds: 4000 RPM
Sub Spindle Speeds: 4000 RPM
Spindle Bore Sub Spindle: 3.46''
Tool Magazine Capacity: 40 ATC
Max Tool Dia. / Adjacent: 3.54''/4.92''
Max Tool Length: 15.75''
Rotary Tools Spindle Nose: CAPTO STYLE
Rotary Tool Spindle Speeds: 12,000 RPM
X - Axis Travel: 24.8"
Z - Axis Travel: 62.41"
Y - Axis Travel: +/- 4.53"
B - Axis Travel: 225 Degrees
W - Axis Travel Sub Spindle: 53.11"
Rapid Traverse Rates X, Z, W, Y: 1496, 1496, 1181, 591 IPM
Rotary Tool Motor: 25 HP
Maximum Tool Weight: 22 LBS.
Main Motor / Second Spindle: 40 HP / 35 HP
Rapid Traverse Rate B, C: 555, 555 RPM
Lower Turret: 9 Positions
C - Axis Travel Main Spindle: .0001 Degree

Do you have a Mazak INT300IVST to sell?

We are actively seeking a 2006 MAZAK INT300IVST Live Tooling Lathe. This exceptional machine, known for its robust performance and versatility, features a swing over bed of 30.0 inches and a maximum machining diameter of 30.0 inches, making it ideal for a wide range of applications. With a maximum cutting length of 60 inches, this lathe is well-equipped to handle various machining tasks with ease. The spindle bore of 3.46 inches combined with a spindle nose of A2-8 allows for efficient work with larger materials, while the 3.0-inch bar capacity adds to its capabilities. The MAZAK INT300IVST operates at spindle speeds of up to 4000 RPM, with the sub-spindle also reaching the same speed, ensuring high productivity and precision.

This machine's advanced features include a C-axis sub-spindle with a minimum indexing of 0.0001 degrees, allowing for intricate machining operations that require high levels of accuracy. The tool magazine capacity of 40 ATC enables quick tool changes, enhancing operational efficiency, while the maximum tool diameter of 3.54 inches and maximum tool length of 15.75 inches provide flexibility in tooling options. Additionally, the rotary tools spindle nose utilizes CAPTO STYLE, with spindle speeds reaching up to 12,000 RPM, making it suitable for a variety of tasks from turning to milling. The X-axis travel of 24.8 inches and Z-axis travel of 62.41 inches ensure that this lathe can accommodate larger workpieces, while the Y-axis travel of +/- 4.53 inches and B-axis travel of 225 degrees add to its versatility. With rapid traverse rates of 1496 IPM for the X and Z axes, and 1181 IPM for the W axis, this machine promises efficiency in every operation.
