Direct procurement2015 Model

Sell your Mazak QTN 350-II /60 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

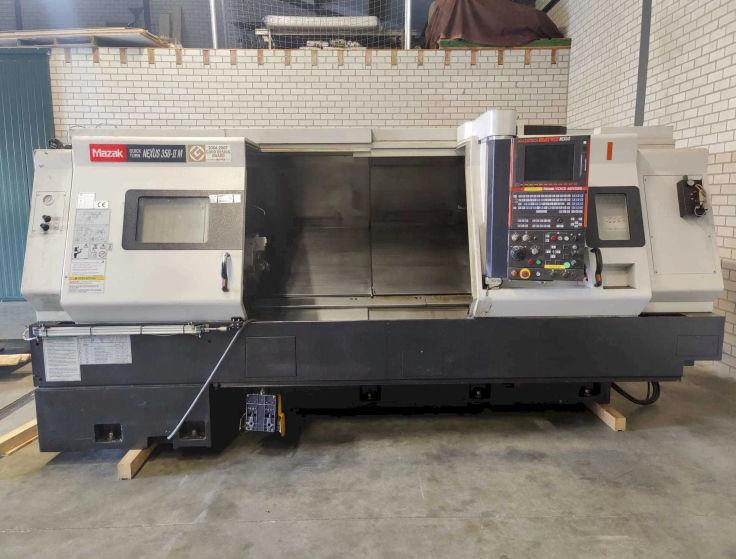

Make: Mazak
Model: QTN 350-II /60
CNC Control: CNC (Mazatrol Matrix Nexus 2)
Year: 2015
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak QTN 350-II /60 Specifications

Chuck Size: 12"
Spindle Motor: 40 HP
Spindle Speeds: 3300 RPM
Spindle Bore/Bar Capacity: 4.4"
Max Bar Capacity: 4"
Turret Tool Positions: 12
Tailstock: Yes
High Pressure Coolant System: 118 PSI
Chip Conveyor: Yes, Side
Control: CNC (Mazatrol Matrix Nexus 2)
Dimensions: 159" x 80" x 78.73"
Weight: 16,777 lbs
Other: Chuck Type: Hydraullic
Spindle Nose: A2-11
Turret Type: Drum Turret
Number Of Tools: 12
X-Axis Travel: 8.85"
Z-Axis Travel: 63.8"
Rapid Traverse Rates: X-Axis 1181 IPM, Z-Axis 984 IPM
Tailstock Center: MT. No.5
Floor Space: 120" x 80" x 78.73"
Maximum Swing: 26.77"
Standard Machining Dia: 10.39"
Maximum Machining Dia: 16.5"
Machining Length: 60"
Rapid Traverse Rates: X-Axis 1181 IPM, Z-Axis 984 IPM.

Do you have a Mazak QTN 350-II /60 to sell?

We are actively seeking a 2015 MAZAK QTN 350-II /60 2-Axis CNC Lathe. This exceptional machine boasts a maximum swing of 26.77 inches and a standard machining diameter of 10.39 inches, providing the versatility and precision that modern shops demand. With a maximum turning diameter of 16.5 inches and a machining length of 60 inches, this lathe is well-equipped to handle a variety of projects. The powerful 40 hp spindle motor, combined with a spindle speed of 3,300 RPM, ensures efficient and effective machining processes. Equipped with a 12-inch Kitagawa chuck featuring a 4-inch through hole, this lathe allows for efficient work on larger components.

The spindle bore measures 4.4 inches, accommodating a maximum bar capacity of 4 inches, making it suitable for various applications. The turret includes 12 tool positions, providing the flexibility needed for complex machining tasks. With X-axis travel of 8.85 inches and Z-axis travel of 63.8 inches, you can expect high precision and accuracy in your operations. The MAZAK QTN 350-II /60 also features a high-pressure coolant system operating at 118 PSI, ensuring optimal cooling and chip removal during machining processes. The machine's design includes a chip conveyor for efficient waste management, while the integrated parts catcher enhances productivity by automating the collection of finished components.

The tailstock adds further versatility, making this lathe an excellent choice for various machining applications. Sellers may consider parting with their MAZAK QTN 350-II for a variety of reasons. Some may be upgrading to newer models, while others might be downsizing their operations or closing facilities altogether. If you own a 2015 MAZAK QTN 350-II /60 or a similar machine and are ready to sell, we invite you to reach out to us. Let us take care of the details while you focus on your next venture.
