Direct procurement2008 Model

Sell your Mazak PMU3000N/10.2 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

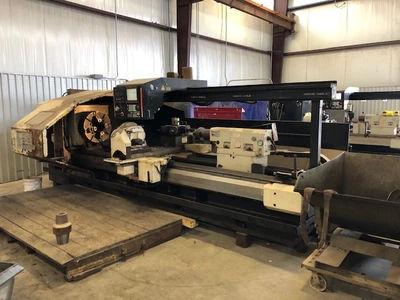

Make: Mazak
Model: PMU3000N/10.2
Year: 2008
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak PMU3000N/10.2 Specifications

Swing Over Bed: 34"
Turning Diameter: 21.65"
Distance Between Centers: 122.5"
Chuck Size: 24"
Spindle Nose: A2 - 20
Spindle Bore Diameter: 10.2"
Spindle Bar Capacity: 10.2"
Spindle Speeds: 2 - 750 RPM
Spindle Horsepower: 60 HP
X - Axis Travel: 25.79"
Z - Axis Travel: 123"
Rapid Traverse Rates X1: 472 IPM
Rapid Traverse Rates Z1: 472 IPM
Turret Configuration: 8, 6 POSITION TURRET
Tailstock Quill Diameter: 5.9"
Tailstock Taper: MT 5
Tailstock Quill Travel: 6.2"
Tailstock Travel: 100"
Machine Weight: 28,800 LBS.

Do you have a Mazak PMU3000N/10.2 to sell?

We are actively seeking a 2008 MAZAK PMU3000N/10.2 2-Axis CNC Lathe. This robust machine features a swing over bed of 34 inches and a turning diameter of 21.65 inches, making it ideal for a variety of machining tasks. With a generous distance between centers of 122.5 inches, this lathe can handle large workpieces with ease. Equipped with a 24-inch chuck size, it offers stability and precision for your projects. The spindle nose, rated at A2-20, along with a spindle bore diameter of 10.2 inches, provides the necessary support for heavy-duty operations.

Additionally, the spindle speeds range from 2 to 750 RPM, powered by a 60 HP spindle horsepower, ensuring that you can achieve the desired output for various materials. The MAZAK PMU3000N/10.2 also boasts impressive travels, with an X-axis travel of 25.79 inches and a Z-axis travel of 123 inches, allowing for extensive machining capabilities. Its rapid traverse rates of 472 IPM for both the X and Z axes enhance productivity, enabling quick repositioning between cuts. This model features an 8-position turret configuration, ensuring versatility and efficiency in tool changes, as well as a tailstock quill diameter of 5.9 inches that adds to its functionality. The tailstock taper is MT 5, offering reliable support during operations, and the quill travel of 6.2 inches combined with tailstock travel of 100 inches provides additional flexibility when working with larger components.

Weighing in at 28,800 lbs, this machine is built to last and withstand the rigors of daily use in demanding environments. Sellers often part with their machines for various reasons, whether it's upgrading to newer models, downsizing operations, or closing facilities altogether. If you have a 2008 MAZAK PMU3000N/10.2 ready for sale, we would love to discuss how we can assist you in getting the best value for your equipment.
