Direct procurement2003 Model

Sell your Mazak NEXUS QTN350/1200 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Mazak

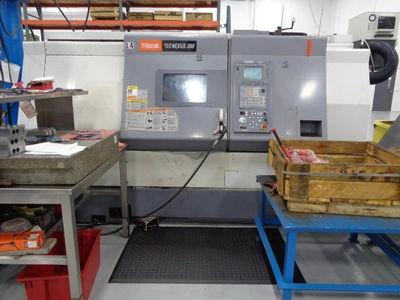

Model: NEXUS QTN350/1200
Year: 2003
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak NEXUS QTN350/1200 Specifications

Spindle Speeds: 3300 RPM
Main Motor: 40 HP
Turret Positions: 12 TRT
Tool Size: 1'' X 1'' X 6''
Turret Clamping Force: 11,700 LBS.
Machine Weight: 15,873 LBS.
X - Axis Travel: 10.63"
Z - Axis Travel: 49.125"
Rapid Traverse Rate X: 1181 IPM
Rapid Traverse Rate Z: 984 IPM
Swing Over Bed: 26.8''
Max. Cutting Diameter: 16.5''
Max. Cutting Length: 46.2"
Spindle Nose: A2-11''
Spindle Bore Main: 4.4''
Spindle Torque: 530 FT-LBS.
Tailstock Quill Dia.: 3.94''
Tailstock Center: MT # 5
Stroke Of Tail Body: 47.875''
Turret Positions: 12 TRT.

Do you have a Mazak NEXUS QTN350/1200 to sell?

We are actively seeking a 2003 MAZAK NEXUS QTN350/1200 2-Axis CNC Lathe. This impressive machine is known for its robust specifications and reliability, making it a valuable asset for any machining operation. With a swing over the bed of 26.8 inches and a maximum cutting diameter of 16.5 inches, it is well-equipped to handle a variety of tasks. The cutting length of 46.2 inches allows for the machining of longer workpieces, providing versatility that shops often require. The MAZAK NEXUS QTN350/1200 boasts a spindle nose of A2-11 inches and a spindle bore main of 4.4 inches, which contributes to its capability in producing high-quality parts.

With spindle speeds reaching up to 3300 RPM and a spindle torque of 530 FT-LBS, this lathe delivers the power needed for demanding operations. Additionally, the main motor is rated at 40 HP, ensuring that this machine can handle challenging materials and complex cuts with ease. The turret positions on this model number 12 TRT, with a tool size of 1 inch by 1 inch by 6 inches, offering flexibility in tooling options. The turret clamping force of 11,700 lbs guarantees secure tool holding, which is crucial for precision work. The tailstock features a quill diameter of 3.94 inches and a center of MT #5, providing additional support for longer parts, while the stroke of the tail body reaches 47.875 inches.

With X-axis travel of 10.63 inches and Z-axis travel of 49.125 inches, along with rapid traverse rates of 1181 IPM in the X-axis and 984 IPM in the Z-axis, this machine is designed for efficiency and productivity. Sellers often part with machines like the MAZAK NEXUS QTN350/1200 for various reasons, including upgrading to newer technology, downsizing operations, or even closing facilities. Regardless of your reason, we understand and respect your decision to sell. If you have a 2003 MAZAK NEXUS QTN350/1200 or similar machinery you'd like to sell, don't hesitate to reach out. We are here to help you get the best value for your equipment.
