Direct procurement1998 Model

Sell your Mazak 35Y/1000 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

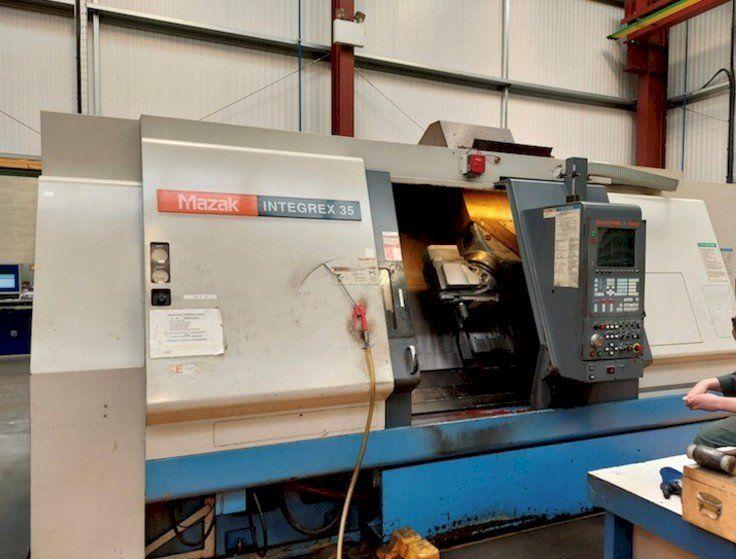

Make: Mazak
Model: 35Y/1000
Year: 1998
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Mazak 35Y/1000 Specifications

Swing Over Bed: 22.5''
Maximum Machining Diameter: 22.5''
Maximum Cutting Length: 40.2''
Spindle Bore Main: 3.46''
Spindle Nose: A2-8
Bar Capacity: 3.0''
Spindle Speeds: 35-2800 RPM
W - Axis Travel Sub Spindle: 11.81''
Rapid Traverse Rate C, B: 100 IPM
Rapid Traverse Rate C, B: 1181 IPM
Rapid Traverse Rate C, B: 591 IPM
Min. Spindle Indexing: .001 DEGREE
Tool Magazine Capacity: 80 ATC
Type Of Turret: 2 POSITION W/ATC
Max Tool Dia. / Adjacent: 3.54''/4.72''
Max Tool Length: 11.8''
Rotary Tool Spindle Speeds: 6000 RPM
Rotary Tool Motor: 10 HP
Maximum Tool Weight: 22 LBS.
Z - Axis Thrust: 5810 LBS.
Tail Stock Center: MT # 5
Tail Stock Stroke: 55.4''
Accuracy Of The Cross Section Diameter: 5.1''
Other: 2Nd Spindle RPM:
Other: 2Nd Spindle Speed:

Do you have a Mazak 35Y/1000 to sell?

We are actively seeking a 1998 MAZAK 35Y/1000 Big Bore Lathe. This impressive CNC lathe features a swing over bed of 22.5 inches and a maximum machining diameter of the same size, making it an excellent choice for a variety of machining tasks. With a maximum cutting length of 40.2 inches, this machine is well-suited for larger workpieces. The MAZAK 35Y/1000 is equipped with a spindle bore of 3.46 inches and an A2-8 spindle nose, providing the necessary capacity for robust machining operations. One of the standout features of this machine is its spindle speed range, which spans from 35 to 2800 RPM.

This versatility allows for precise control over the machining process, accommodating a wide range of materials and applications. Additionally, the machine includes a bar capacity of 3.0 inches, enabling it to handle various bar stock sizes efficiently. The rapid traverse rates are impressive as well, with rates of 100 IPM for the C and B axes and up to 1181 IPM for other axes, allowing for quick movement between cuts. The MAZAK 35Y/1000 also boasts a substantial tool magazine capacity of 80 ATC, which is essential for high-production environments where tool changes are frequent. The turret type is a 2-position with ATC, and it can accommodate a maximum tool diameter of 3.54 inches, or 4.72 inches for adjacent tools.

The maximum tool length is 11.8 inches, ensuring that you can utilize a variety of tools to meet your machining needs. As machine owners, you may find yourself considering selling your MAZAK due to various reasons, such as upgrading to a newer model, downsizing operations, or even closing a facility. Whatever the reason, we understand that parting with your equipment can be a significant decision. If you own a 1998 MAZAK 35Y/1000 Big Bore Lathe, or similar models, we are eager to hear from you and discuss how we can help you get the best value for your equipment.
