Direct procurement2011 Model

Sell your Hyundai WIA L400LMC today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

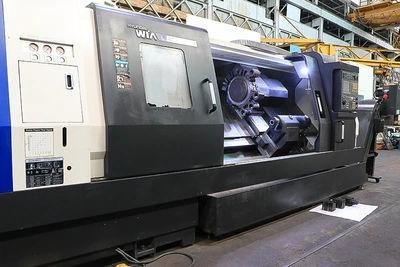

Make: Hyundai WIA
Model: L400LMC
Year: 2011
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Hyundai WIA L400LMC Specifications

Swing Over Bed: 28.5"
Turning Diameter, Shaft Diameter: 22.4"
Machining Length: 83.1"
Chuck Size: 15"
Spindle Nose: A2-11
Spindle Bore Diameter: 5.1"
Spindle Bar Capacity: 4.5"
Spindle Speeds: 2000 RPM
Gear Ranges: 2
Spindle Horsepower: 50 HP
X - Axis Travel: 12.6"
Z - Axis Travel: 86.6"
C - Axis Travel: .001 Degree
Rapid Traverse Rates X: 787 IPM
Rapid Traverse Rates Z: 787 IPM
Turret Configuration: 12
Turret Rotary Tool Spindle Speed: 4000 RPM
Turret Rotary Tool Horse Power: 10 HP
Tailstock Quill Diameter: 5.9"
Tailstock Taper: MT #5
Tailstock Quill Travel: 5.9"
Tailstock Travel: 82.7"
Machine Weight: 22,100 Lbs.

Do you have a Hyundai WIA L400LMC to sell?

We are actively seeking a 2011 HYUNDAI WIA L400LMC CNC lathe. This impressive machine combines the capabilities of 2-axis and 3-axis machining, making it an ideal choice for various turning applications. With a generous swing over the bed of 28.5 inches and a turning diameter of 22.4 inches, it allows for precision machining of large parts. The machining length of 83.1 inches provides ample space for extended projects, while the 15-inch chuck size ensures secure gripping of workpieces. Equipped with a robust A2-11 spindle nose, the L400LMC features a spindle bore diameter of 5.1 inches, accommodating a spindle bar capacity of 4.5 inches.

This lathe operates at spindle speeds of up to 2000 RPM, enabling efficient material removal and superior surface finishes. The two gear ranges enhance versatility, while the powerful 50 HP spindle horsepower ensures consistent performance. For precise movements, the X-axis travel measures 12.6 inches, and the Z-axis travel reaches an impressive 86.6 inches. The C-axis travel of 0.001 degrees allows for intricate machining tasks, making this lathe suitable for complex components. Rapid traverse rates of 787 IPM in both X and Z directions contribute to reduced cycle times, enhancing overall productivity.

The L400LMC also features a 12-station turret configuration, with rotary tool spindle speeds of up to 4000 RPM and a turret horsepower of 10 HP. This allows for versatile tooling options and quick changeovers. Additionally, the tailstock quill diameter of 5.9 inches and taper of MT #5, combined with a tailstock travel of 82.7 inches, further enhance its functionality. Weighing in at 22,100 pounds, the 2011 HYUNDAI WIA L400LMC is a robust machine that meets the demands of any busy shop floor. If you're looking to sell your used CNC lathe, contact us today for a competitive offer!
