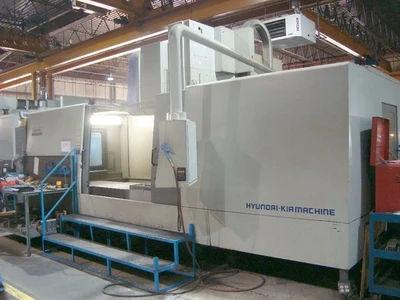

Make: Hyundai WIA
Model: KV90L
Year: 2005
Category: CNC Vertical Machining Centers (VMC)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Hyundai WIA KV90L Specifications

Table Size: 102'' X 37.4''
Cutting Feedrate: 0.04'' - 197 IPM
Spindle Nose To Table Top: 6.3''- 39.76''
Table Load Capacity: 6173 LBS.
Spindle Nose: CAT 50 TAPER
Spindle Speed: 8000 RPM
Number Of Gear Ranges: 2
Max. Spindle Torque: 669 FT-LBS.
Number Of Tool Change Position: 30
Maximum Tool Diameter: 4.9''
Maximum Tool Length: 11.8''
Maximum Tool Weight: 44.1 lbs.
Tool To Tool Change Time: 3.5ecs.
Machine Weight: 53,681 LBS.
Y - Axis Travel: 35.4"
Z - Axis Travel: 33.4"
Rapid Traverse Rate X, Y, Z: 394, 394, 472 IPM
Main Motor: 35 HP
X - Axis Travel: 96.5"

Do you have a Hyundai WIA KV90L to sell?

We are actively seeking a 2005 HYUNDAI WIA KV90L Vertical Machining Center. This robust machine is designed for high-performance machining with a table size of 102'' x 37.4'', making it ideal for handling larger workpieces. With a cutting feedrate ranging from 0.04'' to an impressive 197 inches per minute, the KV90L ensures efficient material removal and precision cutting. The spindle nose to table top distance of 6.3'' to 39.76'' provides versatility for various setups and applications. Equipped with a CAT 50 taper spindle, this machine achieves spindle speeds of up to 8000 RPM, allowing for a wide range of machining operations.

The maximum spindle torque of 669 FT-LBS ensures that the KV90L can handle tough materials with ease. With two gear ranges and a tool change capacity of 30 positions, this machine is designed for high productivity. The maximum tool diameter of 4.9'' and maximum tool length of 11.8'', along with a tool weight capacity of 44.1 lbs, further enhances its versatility. Tool to tool change time is just 3.5 seconds, which significantly reduces downtime during operation. The Y-axis travel reaches 35.4'', and Z-axis travel is 33.4'', while the rapid traverse rates for X, Y, and Z axes are 394, 394, and 472 IPM respectively, ensuring fast and efficient movement.

With a substantial machine weight of 53,681 lbs and a powerful 35 HP main motor, the HYUNDAI WIA KV90L is built for stability and performance. If you have a 2005 HYUNDAI WIA KV90L Vertical Machining Center that you are looking to sell, we invite you to contact us today. At Superior Machine Tools, we offer competitive prices and a seamless process for selling your used CNC machines. Let us help you turn your unused equipment into cash!
