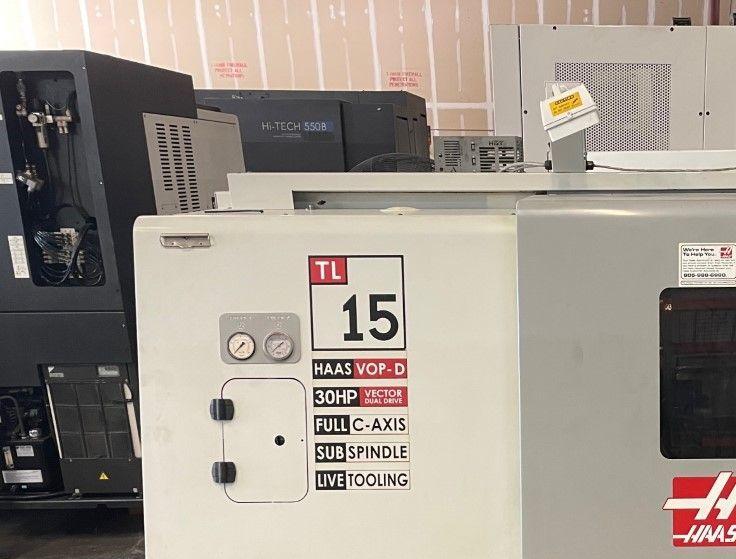

Make: Haas
Model: TL15
Year: 2005
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Haas TL15 Specifications

Chuck Size: 2"
Spindle Speed: 5,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.5"
Z Axis Travel: 17.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 787 IPM
Max Turning Dia: 8.2"
Max Turning Length: 21.65"
Max Swing: 21.65"
Sub Spindle Travel: 17.90"
C Axis: 360° (0.001°)
Both Spindle Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Main Spindle Bore: 2.0"
Sub Spindle Bore: 1.18"
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 45-4000 RPM
Sub Spindle Speed: 40-4000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 8 HP
Turret Capacity: 12 Live Stations
Turret Index Time: 0.2 Second
Dimensions: 138" x 77" x 72"
Weight: 10,500 LBS.

Do you have a Haas TL15 to sell?

We are actively seeking a 2005 HAAS TL15 CNC Lathe. This exceptional horizontal lathe combines precision engineering with robust performance, making it a valuable asset for any machining operation. With a chuck size of 2 inches and a spindle speed of up to 5,000 RPM, the HAAS TL15 provides the versatility needed for a variety of turning applications. The powerful 20 HP spindle motor ensures efficient operation, while the X and Z axis travels of 7.5 inches and 17.5 inches respectively allow for the machining of parts with maximum turning diameters of 8.2 inches and a turning length of up to 21.65 inches.

This machine features a 12-station turret, capable of holding live tools, which enhances productivity through quick tool changes with an index time of just 0.2 seconds. The rapid rates for both the X and Z axes are impressive, reaching 787 IPM and 945 IPM, respectively, ensuring high-speed operations without sacrificing accuracy. The C axis capability allows for precise positioning with a resolution of 0.001 degrees, making it ideal for complex machining tasks. The HAAS TL15 is designed for durability and precision, featuring a main spindle bore of 2.0 inches and a sub spindle bore of 1.18 inches.

Its dimensions stand at 138 inches by 77 inches by 72 inches, and it weighs approximately 10,500 pounds, making it a substantial addition to any workshop. If you have a 2005 HAAS TL15 CNC Lathe to sell, we are ready to make you a competitive offer. Contact us today to discuss your machine and get the best value for your equipment. Don't miss out on this opportunity to sell your used CNC lathe to a trusted buyer!
