Direct procurement2023 Model

Sell your Haas ST-55 USED today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

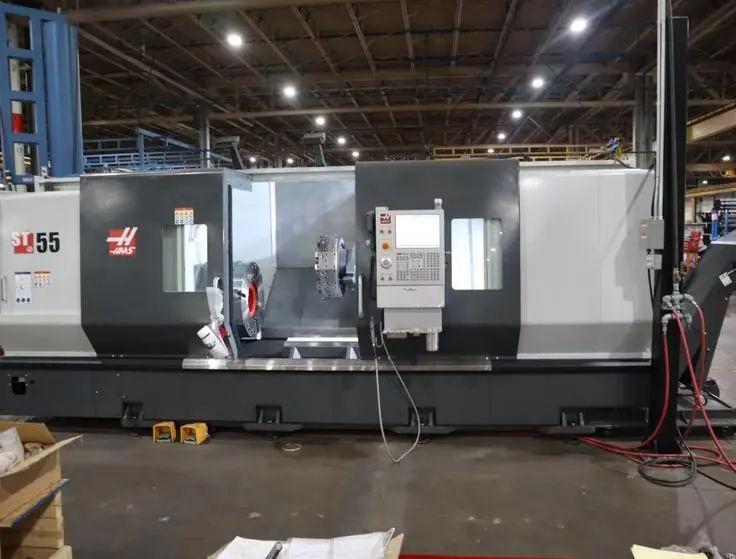

Make: Haas
Model: ST-55 USED
Year: 2023
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Haas ST-55 USED Specifications

Other: Swing
Other: Machining Length
Other: Chuck Size
Other: Bar Capacity
Other: Power
Other: Max RPM
Other: Turning Dia
Other: Tailstock
Other: Live Tooling
Other: Sub Spindle
Other: Control
Other: Dimensions
Other: Weight
Other: Max Swing Over Bed
Other: Max Swng Over Saddle
Other: Max Turning Diameter
Other: Max Turning Length
Other: Spindle Nose
Other: Front and Rear Headstock Spindle Speeds
Other: Number of Steps
Other: Turret Capacity
Other: Turret Travels
Other: Rapid Traverse Rate
Other: Tailstock Quill Diameter / Taper
Other: Spindle Motor
Electrics Value: 34.5" 876.3 mm
Other: 80" 2,032 mm
Other: 26" 660.4 mm
Other: 12.5" 317.5 mm
Other: 55 hp 41 kW
Other: 1,000 RPM 1,000 RPM
Other: 25.5" 647.7 mm
Other: Yes Yes
Other: No No
Other: CNC (Haas) CNC (Haas)
Other: 265" x 102" x 99"
Other: 31,000 lbs 31,000 lbs
Other: 34.5"
Other: 25.5"
Other: 80"
Other: A1-20
Other: 1,000 Max RPM
Other: 2-Speed Gearbox
Other: 12 Stations
Other: (X,Z) 17.0" x 8.0"
Other: (X/Z) 710 / 320 IPM
Other: #6MT
Other: 55 HP
Other: 440 Volt, 3 Phase, 53 Full Load Amps

Do you have a Haas ST-55 USED to sell?

We are actively seeking a 2023 Haas ST-55 CNC Lathe to purchase for our inventory. This exceptional turning center, with only 10 spindle hours, is designed for high precision and is ideal for various machining applications. The ST-55 features a swing of 34.5 inches and a machining length of 80 inches, making it suitable for larger workpieces. With a robust 26-inch chuck size and a bar capacity of 12.5 inches, this machine is versatile enough to handle a wide range of materials and sizes. Powered by a 55 hp spindle motor, the Haas ST-55 boasts a maximum RPM of 1,000, ensuring efficient and effective machining operations.

Its turning diameter reaches up to 25.5 inches, allowing for substantial material removal. The tailstock adds further flexibility, while the 12-station turret provides the capability to execute multiple operations in a single setup. The turret travels in the X and Z axes measure 17.0 inches and 8.0 inches, respectively, contributing to the machine's impressive performance. The ST-55 is equipped with a 2-speed gearbox and a rapid traverse rate of 710 IPM in the X direction and 320 IPM in the Z direction, enhancing productivity. With dimensions of 265 inches by 102 inches by 99 inches and a weight of 31,000 lbs, this CNC lathe is built to endure the rigors of a busy machine shop while maintaining accuracy.

If you are considering selling your 2023 Haas ST-55 CNC Lathe, now is the perfect time to reach out. We offer competitive prices and can facilitate a smooth transaction. Contact us today to discuss your machine and receive an offer!
