Direct procurement2023 Model

Sell your Haas MINI MILL USED today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

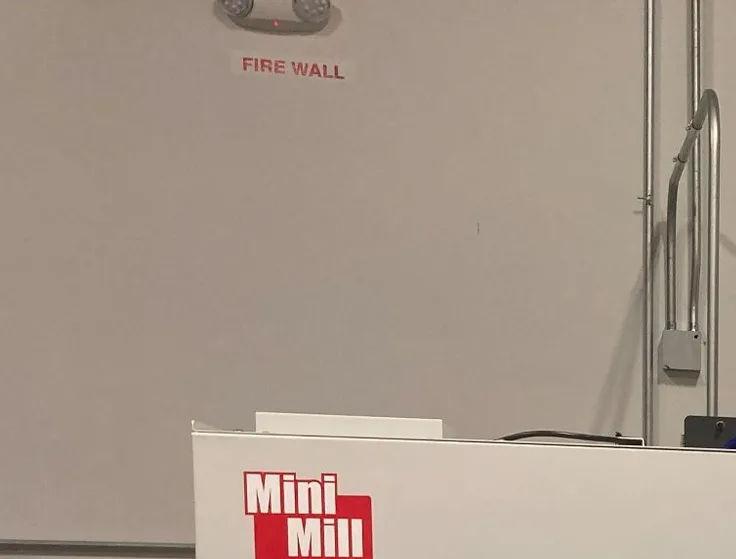

Make: Haas
Model: MINI MILL USED
Year: 2023
Category: CNC Vertical Machining Centers (VMC)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Haas MINI MILL USED Specifications

X: 16" 406.4 mm
Y: 12" 304.8 mm
Z: 10" 254 mm
Power: 7.5 hp 5.6 kW
RPM: 8,000 RPM
# ATC: 10
Taper: CAT-40
Table-W: 12" 304.8 mm
Table-L: 36" 914.4 mm
Travels X Axis: 16.00 in 406 mm
Y Axis: 14.00 in 356 mm
Z Axis: 15.00 in 381 mm
Spindle Nose to Table (~ max): 19.0 in 483 mm
Spindle Nose to Table (~ min): 4.0 in 102 mm
Spindle Max Rating: 10.0 hp 7.5 kW
Max Speed: 8000 rpm
Max Torque: 45.0 ft-lbf @ 500 rpm 61.0 Nm @ 500 rpm
Drive System: Taper CT 40
Bearing Lubrication: Grease Packed
Cooling: Air Cooled
T-Slot Width: 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance: 4.33 in 110 mm
Number of Std T-Slots: 3
Max Weight on Table (evenly distributed): 500 lb 227 kg
Feedrates Max Cutting: 650 ipm 6.5 m/min
Rapids on X: 800 ipm 20.3 m/min
Rapids on Y: 800 ipm 20.3 m/min
Rapids on Z: 800 ipm 20.3 m/min
Axis Motors Max Thrust X: 2000 lbf 8896 N
Max Thrust Y: 2000 lbf 8896 N
Max Thrust Z: 2000 lbf 8896 N
Tool Changer Type: Carousel Capacity 20
Max Tool Diameter (full): 3.5 in 89 mm
Max Tool Length (from gage line): 12 in 305 mm
Max Tool Weight: 12.0 lb 5.4 kg
Tool-to-Tool (avg): 4.20 s
Chip-to-Chip (avg): 5.00 s
General Coolant Capacity: 45 gal 170 L
Air Requirements Air Required: 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose: 3/8 in
Coupler (Air): 3/8 in
Air Pressure Min: 80 psi 5.5 bar
Electrical Specification Spindle Speed: 8000 rpm
Spindle Power: 10.0 hp 7.5 kW
Input AC Voltage (1 Phase): 220 VAC Full Load Amps (1 Phase): 40 A
Input AC Voltage (3 Phase) - Low: 220 VAC Full Load Amps (3 Phase) - Low: 25 A
Input AC Voltage (3 Phase) - High*: 440 VAC Full Load Amps (3 Phase) - High*: 13 A

Do you have a Haas MINI MILL USED to sell?

We are actively seeking a 2023 Haas Mini Mill, a versatile and compact vertical machining center that is perfect for small to medium-sized jobs. This machine boasts an impressive travel capacity with X, Y, and Z axis travels of 16", 12", and 10" respectively, allowing for a variety of machining tasks. Equipped with a powerful 7.5 hp spindle that can reach speeds of up to 8,000 RPM, the Haas Mini Mill delivers high performance and efficiency. The machine features a CAT-40 taper and comes with a 10-tool automatic tool changer, ensuring quick tool swaps and minimizing downtime.

The maximum weight capacity on the table is 500 lbs, making it suitable for a range of applications from prototyping to production runs. With rapid feed rates of 800 ipm on all axes, you can expect swift movement and enhanced productivity. The Mini Mill's compact design does not compromise on functionality; its table dimensions of 36" x 12" provide ample space for your workpieces. Additionally, the machine is air-cooled and equipped with grease-packed bearing lubrication, ensuring longevity and reliability in operation.

The spindle's maximum torque of 45 ft-lbf at 500 RPM enhances its capability to handle tougher materials. If you have a 2023 Haas Mini Mill that you are looking to sell, we at Superior Machine Tools are ready to offer you a competitive price. Our team understands the value of high-quality CNC machines and aims to provide you with a seamless selling experience. Contact us today to discuss your machine and receive an excellent offer!
