Direct procurement2001 Model

Sell your Haas HRT310 USED today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

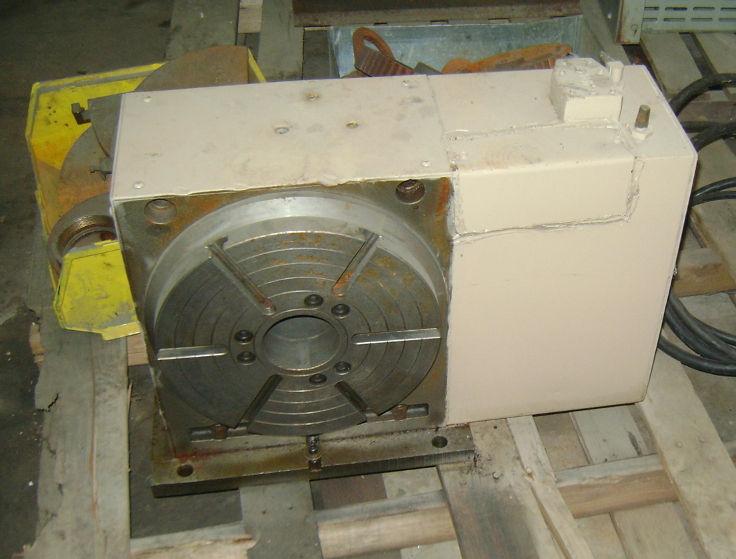

Make: Haas
Model: HRT310 USED
Year: 2001
Category: CNC Rotary Tables
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Haas HRT310 USED Specifications

DIAMETER: 12.2 in
NUMBER OF STD T-SLOTS: 6 @ 60°
MAX SPEED: 0.001 TO 75°/SEC
MAX TORQUE: 300 FT-LB
RUNOUT MAX: 0.0010 in
BACKLASH: 30 ARC-SEC
CENTER HEIGHT: 9.000 ± 0.001 in
GEAR RATIO: 72: 1
TIMING: 2: 1
SPINDLE BORE: 3.250 X 9.875 in
BRAKE TORQUE @ 100 PSI/6.9 BAR: 500 FT-LB
MAX ROTATION/STEP: 999.999°
RESOLUTION: 0.001°
ACCURACY (±): 15 ARC-SEC
REPEATABILITY: 10 ARC-SEC
WORM GEAR DIA: 9.4 in
POWER REQUIREMENT: 115 ± 10% VAC @ 15 A
AIR PRESSURE MAX: 120 PSI
OPERATING TEMP (MAX AMBIENT): 100°F
DUTY CYCLE FULL/LOW SPEED: 50/100%
BRUSHLESS CONTROL: 14.2 LB
TABLE: 435 LB.

Do you have a Haas HRT310 USED to sell?

We are actively seeking a 2001 Haas HRT310 rotary table. This reliable CNC rotary table boasts a diameter of 12.2 inches and features six standard T-slots positioned at 60 degrees, making it an excellent choice for precision machining. With a maximum speed range from 0.001 to 75 degrees per second, it is designed for efficiency and accuracy in a variety of applications. The HRT310 offers robust performance with a maximum torque of 300 ft-lb and a runout maximum of just 0.0010 inches, ensuring high-quality results for your machining projects.

The center height of this model is precisely engineered at 9.000 ± 0.001 inches, complemented by a gear ratio of 72:1 and a timing of 2:1. The spindle bore measures 3.250 x 9.875 inches, providing ample room for various workpieces. With a brake torque of 500 ft-lb at 100 PSI, this rotary table offers excellent holding power during operation. The HRT310 is also designed for repeatability, with a specification of 10 arc-seconds, and boasts an impressive accuracy of ± 15 arc-seconds, making it a trusted choice for precision applications.

This rotary table operates on a power requirement of 115 ± 10% VAC at 15 A and can handle a maximum air pressure of 120 PSI. Its duty cycle is rated at 50% for full speed and 100% for low speed, ensuring versatility in usage. We recognize the value of your used Haas HRT310 rotary table and are prepared to offer a fair price for it. If you are ready to sell your machine, please reach out to us today for a quick and hassle-free transaction.
