Direct procurement2007 Model

Sell your Doosan S700M today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Doosan
Model: S700M
Year: 2007
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

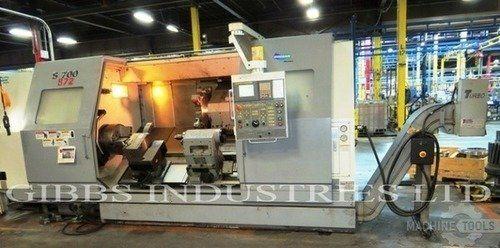

Doosan S700M Specifications

Swing Over Bed: 35.82''
Max. Turning Diameter: 27.56''
Distance Between Centers: 72.83''
Spindle Bore Diameter: 5.2''
Bar Capacity: 4.62''
X - Axis Travel: 15.16''
Maximum Weight: 70.87''
Spindle Nose: A2-11''
Spindle Speeds: 20 - 2,000 RPM
Max. Torque: 1,642 ft/lbs.
Gear Ranges: 2
Turret Configuration: 12 VDI 60
Turret Clamping Force: 22,000 LBS.
Available Milling Stations: 12
Max. Milling Speeds: 4000 RPM
Max. Horsepower Of Milling Head: 17.6 HP AC
Rapid Traverse X: 400 IPM
Rapid Traverse Z: 480 IPM
Accuracy Of Processed Surfaces: 6.3''
Accuracy Of The Cross Section Diameter: 5.9''
Programable Quill: yes
Machine Weight: 40,800 LBS.

Do you have a Doosan S700M to sell?

We are actively seeking a 2007 DOOSAN S700M Big Bore Lathe. This powerful CNC lathe, equipped with a swing over bed of 35.82 inches and a maximum turning diameter of 27.56 inches, is designed to meet the demanding needs of various machining applications. With a distance between centers of 72.83 inches, this machine can handle large workpieces with ease, making it a valuable asset for any shop looking to maximize productivity. The DOOSAN S700M features a spindle bore diameter of 5.2 inches and a bar capacity of 4.62 inches, allowing for efficient processing of a variety of materials.

It operates at spindle speeds ranging from 20 to 2,000 RPM, ensuring versatility for different machining tasks. The maximum torque of 1,642 ft/lbs. and two gear ranges provide the necessary power for heavy-duty turning operations. Additionally, the turret configuration includes 12 VDI 60 stations, offering significant tool versatility and a turret clamping force of 22,000 lbs. for reliable performance. This model also includes impressive milling capabilities, with 12 available milling stations and maximum milling speeds of 4,000 RPM, powered by a 17.6 HP AC milling head.

The rapid traverse rates of 400 IPM in the X-axis and 480 IPM in the Z-axis enhance overall efficiency, while the accuracy of processed surfaces is maintained at 6.3 inches, ensuring high-quality results. Sellers often decide to part with their machines like the DOOSAN S700M for various reasons, such as upgrading to newer technology, downsizing operations, or even closing facilities altogether. If you have a 2007 DOOSAN S700M Big Bore Lathe or similar equipment that you're ready to sell, reach out to us today and let us assist you in making the process as simple and profitable as possible.
