Direct procurement2004 Model

Sell your Doosan PUMA 700M today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

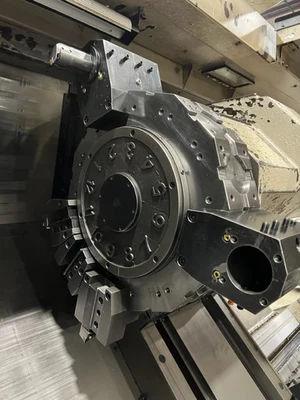

Make: Doosan
Model: PUMA 700M
Year: 2004
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan PUMA 700M Specifications

# Of Spindle Speeds: 2
Spindle Speed: 1500 RPM
Spindle Horsepower: 60 HP
X - Axis Travel: 18.5"
Z - Axis Travel: 65"
Rapid Traverse Rate: 590 IPM
Turret Configuration: 12
Turret Rotary Tool Spindle Speed: 3000 RPM
Turret Rotary Tool Horse Power: 15 HP
Tailstock Quill Diameter: 6.3"
Tailstock Taper: MT 6
Tailstock Quill Travel: 5.9"
Programmable Tailstock: YES
Tailstock Travel: 61"
Machine Weight: 38,200
Swing Over Bed: 40.5"
Turning Diameter: 35.4"
Machining Length: 62.9"
Distance Between Centers: 65"
Chuck Size: 24"
Spindle Nose: A1 - 15
Spindle Bore Diameter: 7.12"
Spindle Bar Capacity: 6.5"
Rapid Traverse Rate Z1: 630 IPM
Spindle Horsepower 2: 60 HP
X - Axis Travel 2: 18.5"
Z - Axis Travel 2: 65"
C - Axis Travel 2: .001 C - AXIS
Rapid Traverse Rate X2: 590 IPM
Turret Configuration 2: 12
Turret Rotary Tool Spindle Speed 2: 3000 RPM
Turret Rotary Tool Horse Power 2: 15 HP
Tailstock Quill Diameter 2: 6.3"
Tailstock Taper 2: MT 6
Tailstock Quill Travel 2: 5.9"
Tailstock Travel 2: 61"
Gear Ranges: 2
Tailstock Quill Diameter 1: 6.3"
Tailstock Taper 1: MT 6
Tailstock Quill Travel 1: 5.9"
Tailstock Travel 1: 61"
Chuck Size 1: 24"
Spindle Nose 1: A1 - 15
Spindle Bore Diameter 1: 7.12"
Spindle Bar Capacity 1: 6.5"
Spindle Speed 2: 1500 RPM
Spindle Horsepower 1: 60 HP
X - Axis Travel 1: 18.5"
Z - Axis Travel 1: 65"
C - Axis Travel 1: .001 C - AXIS
Rapid Traverse Rate X1: 590 IPM
Rapid Traverse Rate Z2: 630 IPM
Turret Configuration 1: 12
Turret Rotary Tool Spindle Speed 1: 3000 RPM
Turret Rotary Tool Horse Power 1: 15 HP
Programmable Tailstock: YES.

Do you have a Doosan PUMA 700M to sell?

We are actively seeking a 2004 DOOSAN PUMA 700M 2-Axis CNC Lathe. This model is known for its robust performance and versatility, making it a great addition to any machining operation. With a swing over bed of 40.5 inches and a turning diameter of 35.4 inches, the PUMA 700M allows for a significant range of workpieces. The machining length of 62.9 inches and a distance between centers of 65 inches provide ample capacity for larger components, making it suitable for various industries including manufacturing and job shops.

Equipped with a 24-inch chuck size and a spindle bore diameter of 7.12 inches, this lathe can handle substantial shaft sizes, while the 60 HP spindle horsepower ensures efficient cutting power. The spindle speeds reach up to 1500 RPM, allowing for flexibility in machining operations. The X-axis travel of 18.5 inches and Z-axis travel of 65 inches, combined with a rapid traverse rate of 590 IPM and 630 IPM respectively, enhance overall productivity. The turret configuration features 12 stations, and with a turret rotary tool spindle speed of 3000 RPM and horsepower of 15 HP, it supports complex machining tasks and quick tool changes.

The programmable tailstock, with a quill diameter of 6.3 inches and travel of 61 inches, adds to the machine's capabilities, allowing for more precise operations. We understand that sellers may be parting with their machines for various reasons, such as upgrading to newer technology, downsizing their operations, or even closing facilities. If you have a 2004 DOOSAN PUMA 700M or similar equipment to sell, don't hesitate to reach out. Let us help you turn your unused machinery into cash quickly and effortlessly.
