Direct procurement2007 Model

Sell your Doosan Puma 600LM today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

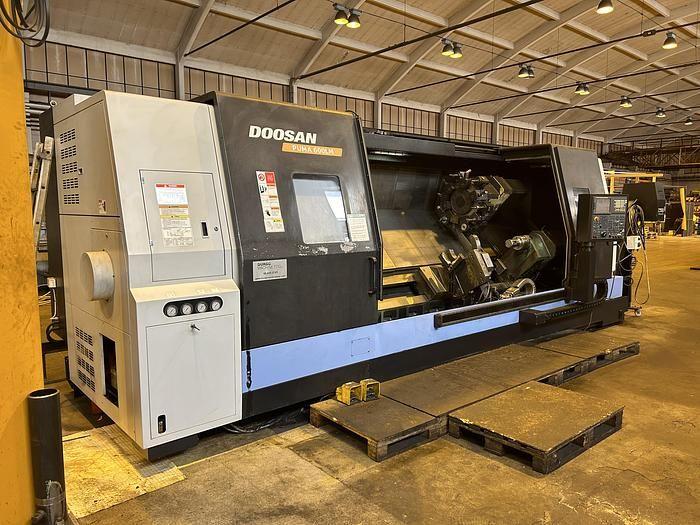

Make: Doosan
Model: Puma 600LM
Year: 2007
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan Puma 600LM Specifications

Swing Over Bed: 40.5''
Max. Turning Dia. Shaft Work: 31.5''
Max. Turning Dia. (Chucking): 35.4''
Distance Between Centers: 125.9''
Spindle Bore Diameter: 5.98''
X - Axis Travel: 18.5''
Spindle Speeds: 1,800 RPM
Gear Ranges: 3
Spindle Torque: 3,998 ft-lbs
Turret Configuration: 12
Rotary Tool Horsepower: 15 HP
Maximum Torque: 103 ft/lbs
Maximum Tool RPM: 3,000 RPM
Rapid Traverse X: 472 IPM
Rapid Traverse Z: 394 IPM
Rapid Traverse C - Axis: 14 RPM
X- Axis Feed Thrust: 3,496 ft-lbs. Continuous
Z- Axis Feed Thrust: 6,738 ft-lbs. Continuous
Accuracy Of Processed Surfaces: 6.3''
Tailstock Spindle Taper: MT # 6
Maximum Tailstock Quill Thrust: 9,440 lbs.
Tailstock Travel: 101.98''
Machine Weight: 48,000 LBS.

Do you have a Doosan Puma 600LM to sell?

We are actively seeking a 2007 Doosan Puma 600LM big bore lathe. This exceptional CNC lathe is designed for high-performance machining, making it a sought-after model in the industry. With a turning length of 1600 mm and a turning diameter of 900 mm, it's well-equipped to handle a variety of machining tasks, ensuring precision and efficiency in production. The Puma 600LM features a maximum diameter above the bed of 1030 mm and above the traversing slide of 800 mm, allowing for versatility in workpiece sizes. The machine boasts a generous length between centers of 3200 mm, providing ample space for larger components.

Its X-axis and Z-axis travels of 470 mm and 1650 mm, respectively, enhance its capability for complex machining operations. With a spindle bore of 152.4 mm and a turning speed reaching up to 1500 rpm, this lathe ensures rapid and effective material removal, reducing cycle times and enhancing productivity. Equipped with one turret that accommodates up to 12 tools, the Puma 600LM allows for quick tool changes and increased operational efficiency. Additionally, its spindle motor power of 45 kW ensures robust performance, making it suitable for a variety of materials and manufacturing processes. We understand that many sellers part with their machines for various reasons, such as upgrading to newer technology, downsizing operations, or even closing facilities.

Whatever your reason may be, we are here to offer you a seamless selling experience. If you own a 2007 Doosan Puma 600LM or similar CNC lathe, don't hesitate to reach out. Let us help you turn your idle equipment into cash with ease.
