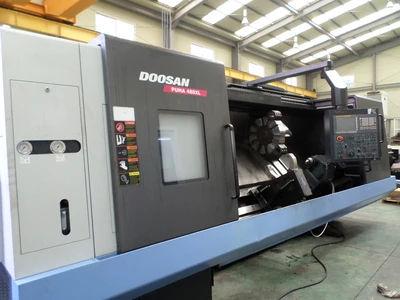

Make: Doosan
Model: PUMA 480 XL
Year: 2015
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan PUMA 480 XL Specifications

# Axis: 2
Max Cutting Length: 120.7"
Max Cutting Diameter: 25.6"
Max Spindle Speed: 1500 RPM
Main Motor: 60 HP
Turret Stations: 10
Rapid Traverse Rate: 550 IPM, 710 IPM
Machine Weight: 46,800 LBS.
Approx Dimensions Lxwxh: Not Available
Approx Machine Weight: Not Available
Other: Swing Over Bed: 35.4'', X - Axis Travel: 14.25", Z - Axis Travel: 123.5", Spindle Nose: A2-15'', Spindle Bore Diameter: 7.2", Spindle Torque: 2944 Ft - Lbs, Tailstock Quill Diameter: 4.7", Tailstock Travel: 109.4", Tailstock Quill Travel: 4.7", Swing Over Saddle: 28.3", Maximum Turning Diameter: 25.6", Maximum Turning Length: 120.7"

Do you have a Doosan PUMA 480 XL to sell?

We are actively seeking a 2015 DOOSAN PUMA 480 XL Big Bore Lathe. This impressive CNC lathe is known for its robust performance and reliability, making it a favorite among machine shops and manufacturers alike. With a swing over bed of 35.4 inches and a maximum turning diameter of 25.6 inches, it provides the capabilities needed for large-scale machining projects. The X-axis travel of 14.25 inches and Z-axis travel of 123.5 inches further enhance its versatility, allowing for a wide range of applications. Equipped with a spindle nose of A2-15 inches and a spindle bore diameter of 7.2 inches, the PUMA 480 XL can handle heavy-duty tasks with ease. It boasts a spindle speed of 1500 RPM and a spindle torque of 2944 ft-lbs, powered by a robust 60 HP main motor.

The turret configuration includes 10 positions, enabling quick tool changes and increased productivity. Additionally, with rapid traverse rates of 550 IPM in the X-axis and 710 IPM in the Z-axis, this lathe ensures efficient operation. The tailstock is equally impressive, featuring a quill diameter of 4.7 inches and travel lengths of 109.4 inches and 4.7 inches for the quill. This adds to the machine's capability, providing support for longer workpieces. Weighing in at 46,800 pounds, the PUMA 480 XL is built to withstand rigorous use while delivering precise machining results. Many sellers choose to part with their machines for various reasons such as upgrading to newer models, downsizing operations, or even plant closures.

If you find yourself in a similar situation, know that we are here to assist you in making the selling process as smooth as possible. At Superior Machine Tools, we buy CNC lathes like the 2015 DOOSAN PUMA 480 XL nationwide. If you're ready to sell your machine or simply want to learn more about our process, don't hesitate to reach out. We're here to help you get the best value for your equipment.
