Direct procurement2008 Model

Sell your Doosan 2500LY today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Doosan
Model: 2500LY
Year: 2008
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

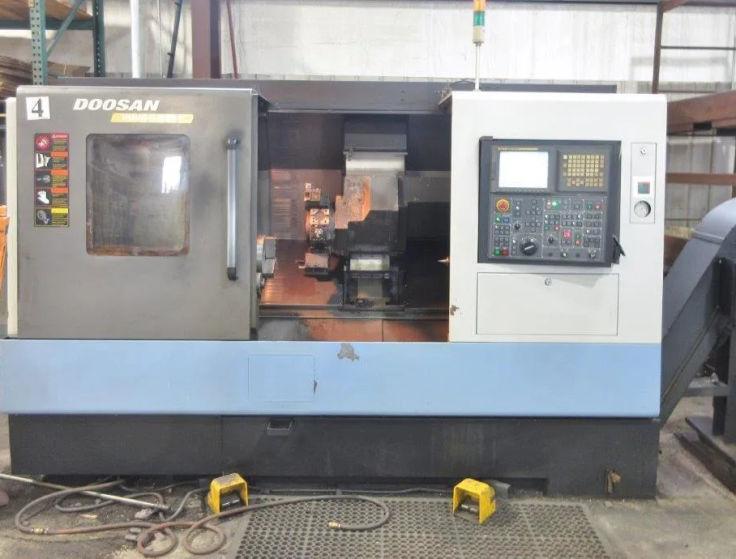

Doosan 2500LY Specifications

# Max Turning Diameter: 13.0"
Max Turning Length: 29.52"
Swing Over Bed: 23.62"
Swing Over Saddle: 21.65"
Max Bar Capacity: 3.0"
X Axis Travel: 9.84"
Z Axis Travel: 32.67"
Y Axis Travel: 3.93"
C Axis: 0.001 Degrees
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-8
Spindle Bore: 3.38"
Spindle Speed: 3500 RPM
Spindle Motor: 20 HP
Turret Capacity: 12 Stations (24 positions)
Turret Index Time: 0.15 Second
OD Tool Size: 1.0"
Boring Bar Diameter: 1.57"
Rotary Tool Speed: 5000 RPM
Rotary Tool Motor Power: 7.5 HP
Tailstock Taper: MT-4
Tailstock Quill Dia.: 3.14"
Tailstock Quill Travel: 4.72"
Power: 200V 220V / 3-Phase / 45.87 kVA / 50/60 Hz
Overall Dimensions: 125" x 70" x 81" High Approx.
Weight: 11,685 lbs Approx.

Do you have a Doosan 2500LY to sell?

We are actively seeking a 2008 Daewoo Doosan 2500LY 2-Axis CNC Lathe. This high-performance machine features a maximum turning diameter of 13 inches and a turning length of 29.52 inches, making it a versatile option for various machining tasks. With a swing over bed of 23.62 inches and a swing over saddle of 21.65 inches, it accommodates a variety of workpieces with ease. The 2500LY is equipped with a 10-inch 3-jaw chuck and a maximum bar capacity of 3 inches, ensuring you can handle a range of materials efficiently. The CNC lathe boasts impressive X and Z axis travel capabilities of 9.84 inches and 32.67 inches, respectively, complemented by a Y axis travel of 3.93 inches.

This model is powered by a robust 20 HP spindle motor that allows for a maximum spindle speed of 3500 RPM, providing the power needed for demanding applications. The machine includes a turret capacity of 12 stations, which can be expanded to 24 positions, allowing for quick tool changes with a turret index time of just 0.15 seconds. Additional features include rapid traverse speeds of 787 IPM on the X axis and 945 IPM on the Z axis, ensuring efficient operation. The tailstock is designed with a taper of MT-4 and includes a quill diameter of 3.14 inches and a travel of 4.72 inches, providing added functionality for machining processes. This lathe's overall dimensions are approximately 125 inches by 70 inches by 81 inches high, with a weight of around 11,685 pounds, making it a substantial yet manageable addition to any shop.

Sellers may choose to part with machines like the Daewoo Doosan 2500LY for various reasons, such as upgrading to newer technology, downsizing operations, or even closing a facility. Whatever the reason, we understand that selling your machinery can be a significant decision. At Superior Machine Tools, we buy nationwide, which means we can simplify the process for you. If you're ready to sell your 2008 Daewoo Doosan 2500LY or any other CNC machinery, don't hesitate to reach out to us today!
