Direct procurement2009 Model

Sell your Doosan PUMA 300LMC today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

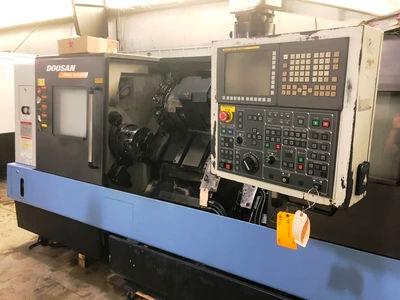

Make: Doosan
Model: PUMA 300LMC
Year: 2009
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan PUMA 300LMC Specifications

Swing Over Bed: 23''
Swing Over Saddle: 17.7"
Max. Turning Diameter: 15.8''
Maximum Turning Length: 47.8"
Distance Between Centers: 50.6''
Spindle Bore Diameter: 4.53''
Bar Capacity: 4.05''
Chuck Size: 12''
Spindle Nose: A2-11
Spindle Speeds: 28 - 2800 RPM
Gear Ranges: 2
Spindle Torque: 884 ft-lbs
Main Motor: 35 HP
X - Axis Travel: 11.1"
Z - Axis Travel: 52.4"
C - Axis Indexing: .001 Degree
Rapid Traverse X, Z: 787/945 IPM
Turret Configuration: 12
Rotary Tool Spindle Speed: 4000 RPM
Rotary Tool Horse Power: 5.4 HP
Tail Stock Quill Diameter: 3.9"
Tail Stock Quill Travel: 3.9"
Machine Weight: 14,770 LBS.

Do you have a Doosan PUMA 300LMC to sell?

We are actively seeking a 2009 DOOSAN PUMA 300LMC, a powerful 2-axis CNC lathe known for its precision and reliability. This model features a swing over bed of 23 inches and a swing over saddle of 17.7 inches, making it ideal for a variety of machining tasks. With a maximum turning diameter of 15.8 inches and a maximum turning length of 47.8 inches, the PUMA 300LMC is designed to handle larger workpieces efficiently. The distance between centers is an impressive 50.6 inches, allowing for versatile applications in turning operations. Equipped with a spindle bore diameter of 4.53 inches and a bar capacity of 4.05 inches, this lathe is capable of accommodating a range of materials. The 12-inch chuck size and A2-11 spindle nose provide a strong grip on workpieces, while the spindle speeds ranging from 28 to 2800 RPM ensure high performance across various tasks.

The spindle torque of 884 ft-lbs and a robust 35 HP main motor contribute to its impressive cutting capabilities. The PUMA 300LMC boasts an X-axis travel of 11.1 inches and a Z-axis travel of 52.4 inches, allowing for precise movements during machining. The C-axis indexing at .001 degree enhances its versatility for complex operations. With rapid traverse rates of 787 IPM in the X and 945 IPM in the Z axes, this lathe maximizes productivity. The turret configuration includes 12 stations, accommodating a range of tooling options for efficient production runs. Additionally, the rotary tool spindle speed reaches up to 4000 RPM with a 5.4 HP output, providing further flexibility in machining processes.

The tailstock features a quill diameter of 3.9 inches and a travel of 3.9 inches, adding to the machine's capabilities. Weighing in at 14,770 pounds, the PUMA 300LMC is built for stability and durability. If you have a 2009 DOOSAN PUMA 300LMC or similar CNC lathe for sale, we want to hear from you! Contact us today to discuss how we can help you sell your machine for a competitive price.
