Direct procurement2011 Model

Sell your Doosan PUMA 2600SY Year today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

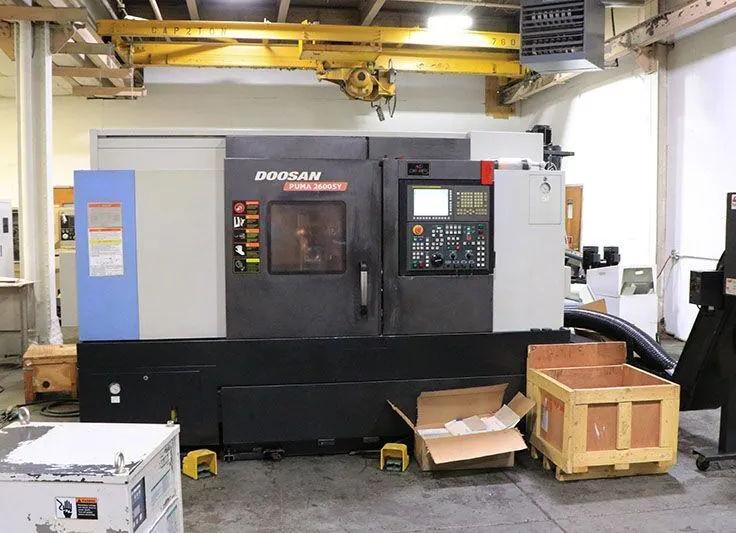

Make: Doosan
Model: PUMA 2600SY Year
CNC Control: CNC (FANUC 31IT)
Year: 2011
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan PUMA 2600SY Year Specifications

Maximum Swing: 30.7"
Max Turning Diameter: 14.8"
Maximum Swing Over Cross Slide: 26.8"
Maximum Cutting Length: 29.92"
X-Axis Travel (X1, X2, X3): 10.2"
Z-Axis Travel (Z1, Z2, Z3): 32.7"
Y-Axis Travel (Y1, Y2, Y3): 4.1"
C-Axis Indexing (1, 2): .001
W-Axis Travel Sub Spindle: 29"
Main Spindle Chuck Size: 10"
Main Spindle Chuck Type: Hydraulic
Main Spindle Bore Diameter: 3.34"
Main Spindle Maximum Bar Work: 3"
Main Spindle Speed: 3,500 RPM
Main Spindle Horsepower (CONT. /30 MINS): 30
Sub Spindle/2nd Spindle Chuck Size: 8"
Sub Spindle/2nd Spindle Bore Size: 2.4"
Sub Spindle/2nd Spindle Chuck Type: Hydraulic
Sub Spindle/2nd Spindle Speed: 6,500 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS): 20
Turret Tool Positions: 24
Turret Rotary Tool Spindle Speed: 5000
Turret Rotary Tool Horse Power: 7.0
Bar Feed: No
Parts Catcher: Yes
Chip Conveyor: Yes
Tool Eye: Automatic Front Spindle: Yes
Number of Available Live Tool Holders: 4
Rapid Traverse, X-Axis: 1181
Rapid Traverse, Y-Axis: 394
Rapid Traverse, Z-Axis: 1181
Control: CNC (FANUC 31IT)
Dimensions: 153" x 74" x 85"
Weight: 14,220 LBS
B AXIS RAPID TRAVERSE RATE: 1.181 IPM
B AXIS TRAVEL (SUB-SPINDLE): 32.6"
SUB-SPINDLE GUIDEWAY SPAN: 13.2"
TOOL HOLDER TYPE: BMT 65P
TURNING TOOL SHANK SIZE: 1.0"
BORING BAR DIAMETER, MAIN SPINDLE: 2.0"
BORING BAR DIAMETER, SUB SPINDLE: 1.0"
MINIMUM PROGRAMMABLE ANGLE: 0.001 DEG.

Do you have a Doosan PUMA 2600SY Year to sell?

We are actively seeking a 2011 Doosan PUMA 2600SY, a remarkable multi-axis CNC lathe known for its precision and versatility. This machine boasts an impressive maximum swing of 30.7 inches and a maximum turning diameter of 14.8 inches, making it suitable for a range of machining tasks. The main spindle features a bore diameter of 3.34 inches and can handle a maximum bar capacity of 3 inches, allowing for efficient processing of various materials. With a main spindle speed of 3,500 RPM and a sub-spindle speed of 6,500 RPM, the PUMA 2600SY ensures rapid and efficient machining operations.

The CNC control system, powered by FANUC 31iT, offers intuitive programming and operation, enhancing productivity on the shop floor. The Y-axis travel of 4.1 inches adds an extra dimension of capability, while the X-axis and Z-axis travels of 10.2 and 32.7 inches, respectively, provide ample workspace for complex parts. The machine is equipped with 24 turret tool positions and an automatic tool eye, facilitating quick tool changes and minimizing downtime. Additionally, the parts catcher and chip conveyor streamline the production process, making this lathe an excellent choice for high-volume manufacturing.

Measuring 153 inches by 74 inches by 85 inches and weighing 14,220 pounds, the PUMA 2600SY is built to withstand the rigors of industrial use while delivering consistent performance. If you are looking to sell your used 2011 Doosan PUMA 2600SY CNC lathe, we invite you to contact us. Our team at Superior Machine Tools is ready to provide a competitive offer and help you transition to your next machine seamlessly.
