Direct procurement2018 Model

Sell your Doosan dnm750 ii today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Doosan
Model: dnm750 ii
Year: 2018
Category: CNC Vertical Machining Centers (VMC)
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

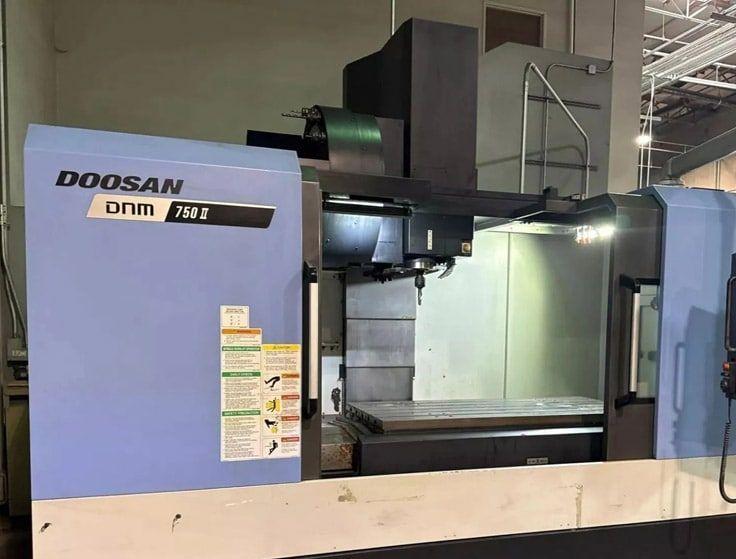

Doosan dnm750 ii Specifications

Travels: X-Axis: 64.2″ Y-Axis: 30.0″ Z-Axis: 25.6″
Rapid Traverse Rates X & Y Axis: 1181 IPM
Rapid Traverse Rates Z Axis: 945 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 31.5″
Table: Length: 64.2″ Width: 29.9″
Number of Std T-Slots: 5
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 3306 lbs
Spindle: Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 21 HP
Automatic Tool Changer: Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time: 1.3 Seconds
General: Air Required: 90 psi 4 scfm
Power: 220v / 43.1 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 151″ x 137″ x 125″ High
Approx. Weight: 29,760 lbs

Do you have a Doosan dnm750 ii to sell?

We are actively seeking a 2018 Doosan DNM750-II, an exceptional vertical 3-axis CNC machining center. This machine is renowned for its robust construction and advanced capabilities, making it a valuable asset for any machining operation. With impressive travels of 64.2 inches on the X-axis, 30.0 inches on the Y-axis, and 25.6 inches on the Z-axis, the DNM750-II provides ample workspace for various projects. The rapid traverse rates of 1181 IPM on the X and Y axes, and 945 IPM on the Z-axis, ensure that your production processes are efficient and fast.

The spindle nose to table height ranges from 5.9 inches to 31.5 inches, providing versatility for different tooling requirements. Equipped with a spacious table measuring 64.2 inches in length and 29.9 inches in width, the DNM750-II can handle a maximum weight of 3306 lbs, making it suitable for heavy-duty machining tasks. The machine features a CAT-40 spindle taper, capable of reaching speeds up to 12,000 RPM, and a powerful 21 HP spindle motor, ensuring precision and performance in every operation. The automatic tool changer, with a capacity of 30 stations, allows for seamless transitions between tools, with a maximum tool weight of 17.6 lbs and a tool changing time of just 1.3 seconds.

This machine requires an air supply of 90 psi at 4 scfm and operates on a 220v power supply with a 43.1 kVA rating. With overall dimensions of 151 inches by 137 inches by 125 inches in height, and an approximate weight of 29,760 lbs, the DNM750-II is a substantial yet efficient addition to any workshop. If you are looking to sell your 2018 Doosan DNM750-II, we at Superior Machine Tools are here to help. Contact us today for a competitive offer and to learn more about how we can facilitate your sale.
