Sell your Doosan 2600SY today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

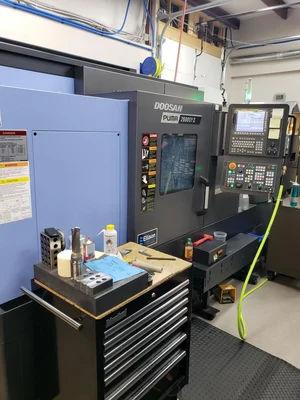

Make: Doosan
Model: 2600SY
Year: 2020
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan 2600SY Specifications

Swing Over Bed: 30.7"
Turning Diameter: 14.8"
Turning Length: 29.9"
Distance Between Spindles: 32.7"
Chuck Size 1: 10"
Chuck Size 2: 8"
Spindle Nose 1: A2 - 8
Spindle Nose 2: A2 -5
Spindle Bore Diameter 1: 3.34"
Spindle Bore Diameter 2: 2.4"
Bar Capacity 1: 3"
Bar Capacity 2: 3"
Spindle Speeds 1: 3500 RPM
Spindle Speeds 2: 4500 RPM
Spindle Horsepower 1: 30 HP
Spindle Horsepower 2: 11 HP
X - Axis Travel X1: 10.2"
X - Axis Travel X2: 10.2"
Z - Axis Travel Z1: 32.7"
Z - Axis Travel Z2: 32.7"
Y - Axis Travel Y1: 4.1"
C - Axis Indexing 1: .001 INDEXING
C - Axis Indexing 2: .001 INDEXING
W - Axis Travel Sub Spindle: 32.7"
Rapid Traverse Rates X1: 1181 IPM
Rapid Traverse Rates X2: 1181 IPM
Rapid Traverse Rates Z1: 1181 IPM
Rapid Traverse Rates Z2: 1181 IPM
Rapid Traverse Rates Y1: 393 IPM
Turret Tool Positions 1: 12 POSITION
Turret Tool Positions 2: 24 POSITION
Turret Rotary Tool Speeds 1: 5000 RPM
Turret Rotary Tool Speeds 2: 5000 RPM
Turret Rotary Tool Horse Power 1: 7.5 HP
Turret Rotary Tool Horse Power 2: 7.5 HP
Machine Weight: 16,100 LBS.

Do you have a Doosan 2600SY to sell?

We are actively seeking a 2020 DOOSAN 2600SY, a remarkable CNC lathe known for its advanced Y-Axis and multi-axis capabilities. This machine features a swing over bed of 30.7 inches and a turning diameter of 14.8 inches, making it an excellent choice for diverse machining tasks. With a turning length of 29.9 inches and a distance between spindles of 32.7 inches, it allows for efficient processing of larger workpieces. The DOOSAN 2600SY is equipped with dual chucks, a 10-inch main chuck and an 8-inch sub chuck, providing versatility in clamping different sizes of materials.

It boasts spindle nose configurations of A2-8 and A2-5, along with spindle bore diameters of 3.34 inches and 2.4 inches, ensuring robust performance. The bar capacity of 3 inches further enhances its operational flexibility. This lathe operates at impressive spindle speeds of 3500 RPM for the main spindle and 4500 RPM for the sub spindle, with horsepower ratings of 30 HP and 11 HP, respectively. The X-axis travel measures 10.2 inches, while the Z-axis travel reaches 32.7 inches, complemented by Y-axis travel of 4.1 inches, allowing for intricate machining operations.

With rapid traverse rates of 1181 IPM for X and Z axes and 393 IPM for Y-axis, productivity is maximized. The turret features 12/24 positions and can achieve rotary tool speeds of up to 5000 RPM with a horsepower of 7.5 HP. We invite you to reach out if you have a 2020 DOOSAN 2600SY or similar CNC lathe for sale. Our team at Superior Machine Tools is eager to provide you with a competitive quote and assist you in selling your equipment efficiently.
