Direct procurement2006 Model

Sell your Doosan 2500LSY-GL today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

Make: Doosan
Model: 2500LSY-GL
Year: 2006
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Doosan 2500LSY-GL Specifications

SWING OVER BED: 23.6"
SWING OVER SADDLE: 21.7"
MAXIMUM TURNING DIAMETER: 12.9"
MAXIMUM TURNING LENGTH: 29.5"
BAR CAPACITY: 3"
X-AXIS: 9.8"
Z-AXIS: 32.7"
Y-AXIS: 3.9"
B-AXIS: 32.7"
SPINDLE SPEED: 3,500 RPM
SPINDLE NOSE: A2#8
SPINDLE BEARING DIAMETER: 5.1"
SPINDLE THROUGH HOLE DIAMETER: 3.4"
MINIMUM SPINDLE INDEXING ANGLE (C-AXIS): .001 DEG
POSITIONS: 12
OD TOOL SIZE: 1"
BORING BAR DIAMETER: 1.6"
INDEXING TIME: .1 SEC
ROTARY TOOL SPINDLE SPEEDS: 5,000 RPM
SPINDLE SPEEDS: 6,000 RPM
SPINDLE BEARING DIAMETER: 3.1"
SPINDLE THROUGH HOLE DIAMETER: 1.8"
X-AXIS FEEDRATE: 787 IPM
Z-AXIS FEEDRATE: 944 IPM
Y-AXIS FEEDRATE: 295 IPM
B-AXIS FEEDRATE: 787 IPM
MAIN SPINDLE MOTOR: 30/20 HP
SUB-SPINDLE MOTOR: 15/10 HP
ROTARY TOOL MOTOR: 7 HP
DIMENSIONS: 138" LR X 67" FB X 82" H
NET WEIGHT: 12,000 LBS
ELECTRICS: 220 VOLTS, 3 PH, 60 CYC
OD MAX DIAMETER: 8.5"
MAX WEIGHT: 33 LB.

Do you have a Doosan 2500LSY-GL to sell?

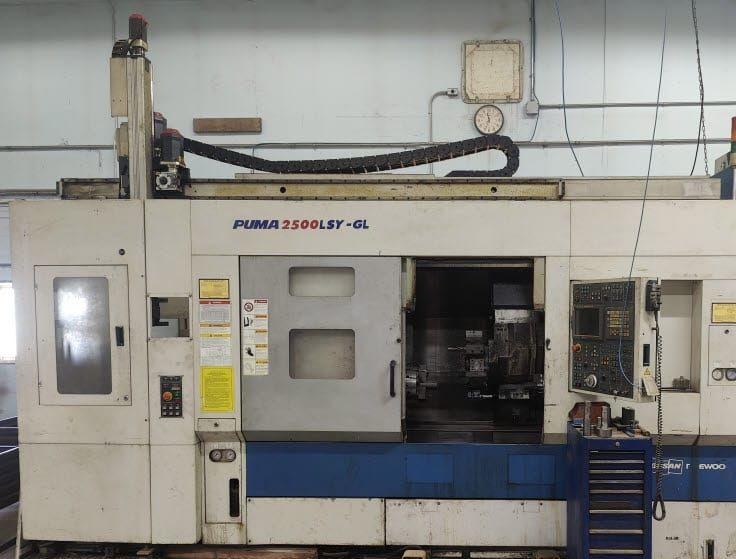

We are actively seeking a 2006 Doosan Puma 2500LSY-GL, a remarkable horizontal lathe that combines precision and efficiency. This machine boasts a swing over bed of 23.6 inches and a swing over saddle of 21.7 inches, allowing for versatile machining capabilities. With a maximum turning diameter of 12.9 inches and a maximum turning length of 29.5 inches, it is ideal for a variety of machining tasks. Equipped with a bar capacity of 3 inches, the Doosan Puma 2500LSY-GL features an impressive X-axis travel of 9.8 inches and Z-axis travel of 32.7 inches, ensuring that you can handle large workpieces with ease. The Y-axis offers an additional 3.9 inches, while the B-axis provides 32.7 inches of travel, making this lathe highly adaptable for complex operations.

The spindle speed reaches up to 3,500 RPM, with a maximum spindle speed of 6,000 RPM, enabling rapid production and high-quality finishes. The machine's spindle nose is A2#8, featuring a spindle bearing diameter of 5.1 inches and a spindle through hole diameter of 3.4 inches, which enhances its capability for various applications. The minimum spindle indexing angle (C-axis) of .001 degrees ensures precision in every cut, while the indexing time of just .1 seconds allows for swift tool changes. Additional features include a main spindle motor rated at 30/20 HP, a sub-spindle motor of 15/10 HP, and a rotary tool motor of 7 HP. With dimensions of 138 inches in length, 67 inches in front-to-back width, and 82 inches in height, this lathe has a net weight of 12,000 lbs, making it a robust addition to any workshop.

If you have a 2006 Doosan Puma 2500LSY-GL that you are looking to sell, reach out to us today! We offer competitive prices and a hassle-free selling experience. Let Superior Machine Tools help you turn your used machinery into cash.
