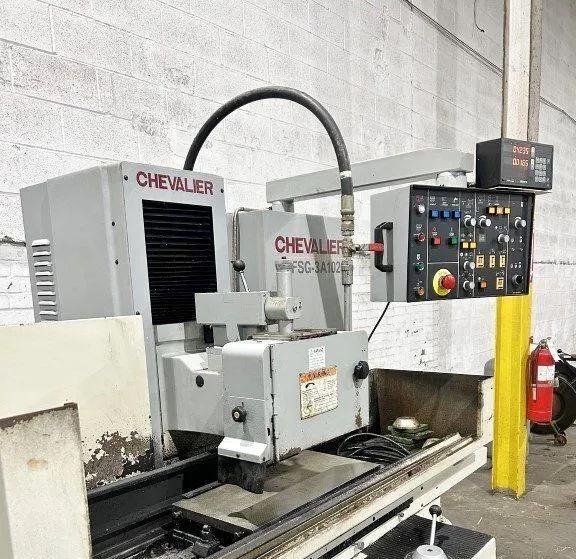

Make: Chevalier
Model: FSG-3A1020
Year: 2005
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Chevalier FSG-3A1020 Specifications

Table-L: 19.685" 500 mm
Table-W: 10" 254 mm
Power: 3 hp 2.2 kW
Grinding Wheel Dia.: 12" 304.8 mm
Grinding Wheel Width: 1.25" 31.75 mm
Nominal Grinding Capacity: 10" X 20"
Max. Longitudinal Table Travel, Hydraulic: 22- 7/8"
Max. Longitudinal Table Travel, Manual: 24- 3/8"
Max. Crossfeed Travel, Automatic: 11- 7/16"
Max. Crossfeed Travel, Manual: 11- 3/4"
Dist. From Spindle Center To Table: 21- 1/2"
Variable Table Speed, Hydraulic: 16' To 82' Fpm
Automatic Crossfeed Increment: 0.02" To 0.4"
Power Rapid Traverse (Cross): 48" Ipm
Crossfeed Handwheel, Per Graduation: 0.001"
Per Revolution: 0.02"
Automatic Incremental Downfeed: 0.0001" To .002"
Auto Downfeed Dial Per Graduation: 0.0005"
Per Revolution: 0.1"
Microfeed: 0.0001"
Rapid Traverse Rate: 13" Ipm
Spindle Motor: 3 Hp
Standard Grinding Wheel: 12" Dia. X 1- 1/4" X 3"B
Approx. Weight: 3,306 Lbs.
Approx. Dimensions: 85" X 48" X 65"H.

Do you have a Chevalier FSG-3A1020 to sell?

We are actively seeking a 2005 Chevalier FSG-3A1020 Reciprocating Surface Grinder. This professional-grade CNC grinding machine is known for its reliability and precision in surface finishing applications. With a table width of 10 inches and a length of 19.685 inches, it provides ample workspace for various grinding tasks. The Chevalier FSG-3A1020 features a powerful 3 hp spindle motor, allowing it to handle demanding operations with ease. The grinding wheel, with a diameter of 12 inches and a width of 1.25 inches, is designed to deliver exceptional grinding performance, ensuring a smooth finish on your materials.

This machine boasts a nominal grinding capacity of 10 inches by 20 inches, making it suitable for a wide range of parts. The hydraulic system offers a maximum longitudinal table travel of 22-7/8 inches, while manual travel extends to 24-3/8 inches. For crossfeed operations, the automatic travel reaches up to 11-7/16 inches, with manual adjustments available as well. The variable table speed ranges from 16 to 82 feet per minute, providing versatility for different grinding applications. One of the standout features of the FSG-3A1020 is its automatic incremental downfeed, adjustable from 0.0001 to 0.002 inches, allowing for precise control during the grinding process.

With a rapid traverse rate of 13 inches per minute and a power rapid traverse for crossfeed at 48 inches per minute, this machine is designed for efficiency. If you have a 2005 Chevalier FSG-3A1020 Reciprocating Surface Grinder that you are looking to sell, we invite you to contact us. At Superior Machine Tools, we specialize in purchasing used CNC machines and can offer you a fair price for your equipment. Reach out to us today to learn more about the selling process and how we can assist you.
