Sell your Chevalier FSG-1640ADII today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

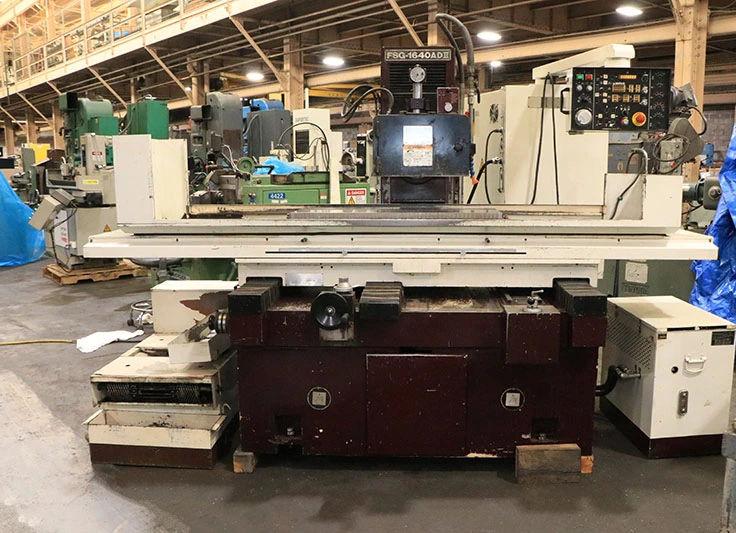

Make: Chevalier
Model: FSG-1640ADII
Year: 2001
Category: CNC Grinding Machines
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Chevalier FSG-1640ADII Specifications

Table Size: 15-3/4" x 39-5/8"
Max. Grinding Capacity: 16" x 40"
Distance from Spindle Center to Table: 24-3/8"
Max. Longitudinal Table Travel, Hydraulic: 41-5/16"
Max. Longitudinal Table Travel, Manual: 43-1/4"
Variable Table Speed, Hydraulic: 16' TO 82' FPM
Max. Crossfeed Travel, Automatic: 16"
Max. Crossfeed Travel, Manual: 18"
Cross Rapid Travel: 12' FPM
Automatic Crossfeed Increment: 1/8" TO 1-1/4"
Handwheel Per Rev.: 0.25"
Handwheel Per Graduation: 0.0025"
Microfeed- Per Rev.: 0.005"
Microfeed- Per Graduation: 0.00005"
Automatic Incremental Downfeed: 0.000050" TO .002"
Vertical Rapid Traverse Rate: 8" IPM
Spindle Motor: 5 HP
Standard Grinding Wheel: 14"DIA. x 2"W x 5"B
Spindle Speed: 1,750 RPM
Approx. Weight: 9,240 LBS
Approx. Dimensions: 120" x 68" x 76"H
Approx. Dims. Required for Ops.: 158" x 68" x 76"H.

Do you have a Chevalier FSG-1640ADII to sell?

We are actively seeking a 2001 Chevalier FSG-1640ADII Reciprocating Surface Grinder to purchase. This high-performance machine features a table size of 15-3/4" x 39-5/8" and boasts a maximum grinding capacity of 16" x 40". With a distance from the spindle center to the table of 24-3/8", this grinder is designed for precision and efficiency in various machining applications. The Chevalier FSG-1640ADII is equipped with both hydraulic and manual longitudinal table travel options, providing maximum travel of 41-5/16" and 43-1/4", respectively.

Its variable table speed ranges from 16 to 82 feet per minute, allowing for adaptability based on the specific grinding task at hand. The automatic crossfeed increments range from 1/8" to 1-1/4", ensuring that operators can achieve the desired surface finish with ease. This model features a robust 5 HP spindle motor, capable of spinning at 1,750 RPM, which is ideal for a variety of grinding applications. The standard grinding wheel measures 14" in diameter, 2" wide, and has a 5" bore, making it well-suited for heavy-duty tasks.

With an approximate weight of 9,240 lbs and dimensions of 120" x 68" x 76" (158" x 68" x 76" required for operation), this machine is substantial yet manageable for your facility. If you have a used 2001 Chevalier FSG-1640ADII Reciprocating Surface Grinder that you're looking to sell, we are interested in making you a competitive offer. Contact us today to discuss your machine and receive a valuation!
