Direct procurement2013 Model

Sell your Chevalier FBL-530C today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

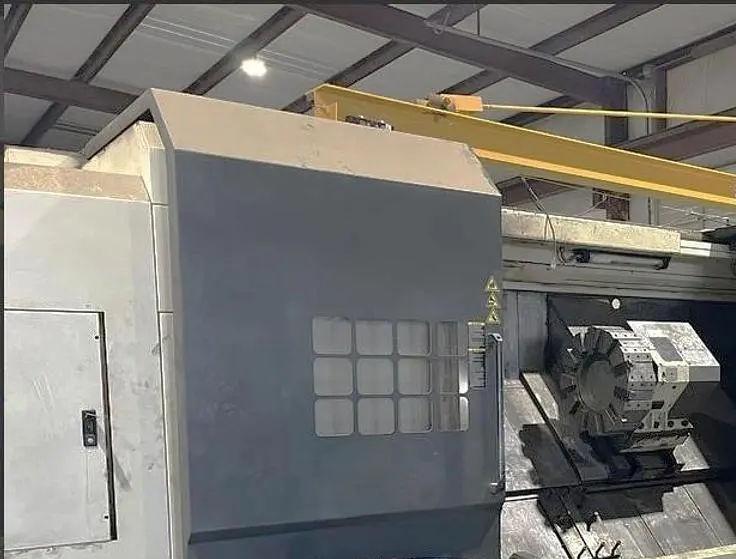

Make: Chevalier
Model: FBL-530C
Year: 2013
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Chevalier FBL-530C Specifications

Machine Control: Fanuc Oi-TD Control
Chuck Size: 32" Manual Bison Front / 28" 3-Jaw Schunk Air Chuck Rear
Maximum Swing over Bed: 40.55"
Maximum Swing Over Cross Slide: 31.49"
Maximum Turning Diameter: 37"
Maximum Machining Length: 118.11"
X-Axis Travel: 19.29"
Z-Axis Travel: 118.11"
Spindle Nose / Bore / Bar Capacity: A2-20" / 12.59" / 12.5"
Spindle Speed: 500 RPM
Spindle Motor: 60 HP - 3-Speed Geared
Maximum Torque: 4,135 NM@104 rpm
Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates X / Z: 394 IPM / 472 IPM
Tailstock Body Travel: 118.11" w/o use of steady rest
Tailstock Quill Diameter / Quill Travel / Taper: 7.87" / 3.94" / MT6
Rotary Quill Machine Dimensions LxWxH: 338.66" x 117" x 99.60"
Machine Weight: 50,600 lbs

Do you have a Chevalier FBL-530C to sell?

We are actively seeking a 2013 Chevalier FBL-530C CNC lathe to purchase. This exceptional horizontal lathe is equipped with a powerful Fanuc Oi-TD control system, ensuring precision and reliability in your machining processes. With a maximum swing over bed of 40.55 inches and a swing over cross slide of 31.49 inches, it offers impressive capabilities for handling various workpieces. The FBL-530C features a maximum turning diameter of 37 inches and a machining length of 118.11 inches, making it suitable for large-scale projects.

The machine boasts a spindle nose of A2-20 inches with a bore capacity of 12.59 inches and a bar capacity of 12.5 inches. Its spindle speed reaches up to 500 RPM, powered by a robust 60 HP 3-speed geared motor that delivers a maximum torque of 4,135 NM at 104 RPM. The 12-position turret enhances versatility, allowing for multiple setups and operations without the need for constant reloading. Rapid traverse rates of 394 IPM in the X-axis and 472 IPM in the Z-axis ensure efficient movement, while the tailstock body travel of 118.11 inches provides additional support for longer workpieces.

The tailstock quill boasts a diameter of 7.87 inches, with a quill travel of 3.94 inches and a taper of MT6, enhancing its adaptability. With dimensions of 338.66 inches in length, 117 inches in width, and 99.60 inches in height, this substantial machine weighs 50,600 pounds, making it a robust addition to any machining environment. If you are looking to sell your 2013 Chevalier FBL-530C, we are ready to offer you a competitive price. Contact us today to discuss your options and receive a fair appraisal!
