2006 Mazak FJV-250
Used · CNC Vertical Machining Centers (VMC)
Spindle power
15 kW
CNC Vertical Machining Centers (VMC)
Mazak FJV-250
10 Mazak FJV-250 listings have come through the used market we track on 6 marketplaces, built from 1998 to 2006 where the listing gave a year. Listings that repeat the same machine are shown once, as 8 machines.
12,000 RPMSpindle speed
1,020 mmX-axis travel
510 mmY-axis travel
18.11 inZ-axis travel
What the maker publishes about the current Mazak FJV-250
The FJV-250 is a Mazak vertical machining center whose table measures 47.24 in by 21.65 in and is rated for an even load of 2645 lb. The columns stand 54.33 in apart. X moves 40.16 in, Y moves 20.08 in and Z moves 18.11 in, and the gap from table top to spindle end ranges from 7.87 in to 25.98 in. A BT40 spindle reaches 12000 rpm from a 22 kW (30 hp) motor at 40% ED, or 15 kW (20 hp) continuous, and the torque figures are 52.8 ft-lbs and 38.7 ft-lbs respectively. Thirty tools fit the magazine, and the largest is 3.15 in across (4.92 in with empty neighbors), 11.81 in long and 17.64 lb. All axes rapid at 2047 ipm. Width and length are 118.9 in by 102.91 in for the MAZATROL control version, and the page gives a height of 115.2 in and a weight of 18739 lb.
Source: Mazak, October 14, 2026.
Mazak FJV-250 specifications
Manufacturer specification. Every figure below was read from the manufacturer’s own published specification for this machine and checked back against that document word for word.
These are the manufacturer’s figures for this model as currently published. A machine built years ago may differ in control generation and in options, which is exactly why the questions below matter when you sell one.
Capacity and travels
X-axis travelX-axis
40.16"1
Y-axis travelY-axis
20.08"1
Z-axis travelZ-axis
18.11"1
Spindle and speed
Max spindle speedMax. spindle speed
12000 rpm1
Spindle motor powerSpindle motor (40% ED)
22 kW (30 HP)1
Spindle taperTool shank
BT401
Rapid traverseRapid traverse rate
2047 IPM1
Table, turret and tools
Table size
47.24" × 21.65"1
Max table loadMax. loading weight(equal distribution)
2645 lbs1
Tool capacityTool storage capacity
301
Control
ControlCNC system
MAZATROL SmoothG or MAZATROL SmoothC2
Dimensions and weight
Machine weight
18739 lbs1
Floor spaceMachine dimensions | Width x Length (MAZATROL SmoothG)
118.9" × 102.91"1
Further figures the manufacturer publishes
Distance between columns
54.33"1
- manufacturer specification page, fetched September 16, 2026.
- manufacturer specification page, fetched September 16, 2026.
- archived manufacturer page, fetched September 16, 2026.
What fits a Mazak FJV-250
Each of these follows from a published specification above, which is named beside it.
40-taper toolholders
This is a 40-taper spindle — the 7:24 steep taper that CAT-40, BT-40 and DIN 69871 (SK-40) holders all share. They share the taper and nothing else that matters: the retention knob and the flange form differ between those standards, so holders do not swap between them without changing pull studs. Knowing which standard a machine was tooled for is worth doing before the holders are packed. The manufacturer names BT (JIS/MAS 403) for this machine.
Derived from Spindle taper: BT40
What to check on a Mazak FJV-250
- Control generation. The manufacturer specifies MAZATROL SmoothG or MAZATROL SmoothC for this model. Units we have tracked run 1998 to 2006; an early one may carry an older control or a retrofit.
- Spindle. The manufacturer gives a spindle speed of 12000 rpm. Run the spindle to top speed and listen for bearing noise.
- Axes and way covers. The manufacturer gives X 40.16", Y 20.08" and Z 18.11" of travel. Run each axis end to end and check the way covers.
- Tool changer. The manufacturer gives the tool capacity as 30. Cycle every pocket and watch for a hesitation.
Mazak FJV-250 listing history
Where it was listed
exapro.com
4 listings, model years 2000 to 2006
usedcnc.com
2 listings, model years 1999 to 2000
equipt.com
1 listing
machinetools.com
1 listing, model year 2000
machnet.com
1 listing, model year 1998
quickmachinerysales.com
1 listing, model year 1998
Model years seen
2006, 2003, 2001, 2000 (3 units), 1999, 1998 (2 units).
What Mazak FJV-250 listings agree on
X-axis travel
1,020 mm
Y-axis travel
510 mm
Z-axis travel
18.11 in
Table size
21.5 x 47 in
Spindle speed
12,000 RPM
Spindle power
30 hp (4 machines); 15 kW (2 machines)
Spindle taper
BT 40
Tool capacity
30
Every Mazak FJV-250 we have tracked
2003 Mazak FJV-250
Used · CNC Vertical Machining Centers (VMC)
2001 Mazak FJV-250
Used · CNC Vertical Machining Centers (VMC)
Spindle power
15 kW
2000 Mazak FJV-250
Used · CNC Vertical Machining Centers (VMC) · Listed 2 times (exapro.com, machinetools.com)
Spindle power
30 hp
2000 Mazak FJV-250
Used · CNC Vertical Machining Centers (VMC)
1999 Mazak FJV-250
Used · CNC Vertical Machining Centers (VMC)
Spindle power
30 hp

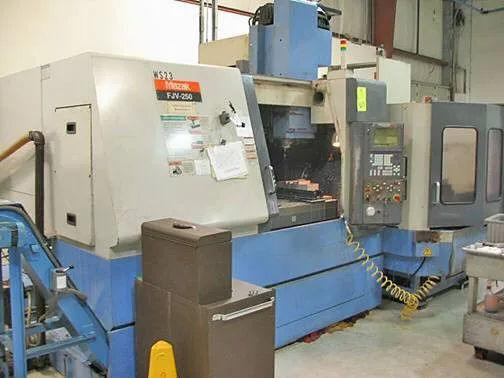

1998 Mazak FJV-250
Used · CNC Vertical Machining Centers (VMC) · Listed 2 times (machnet.com, quickmachinerysales.com)
Spindle power
30 hp
Mazak FJV-250
Used · Metal Cutting
Spindle power
30 hp
