Sell your Tsugami M08SY 2022 today.

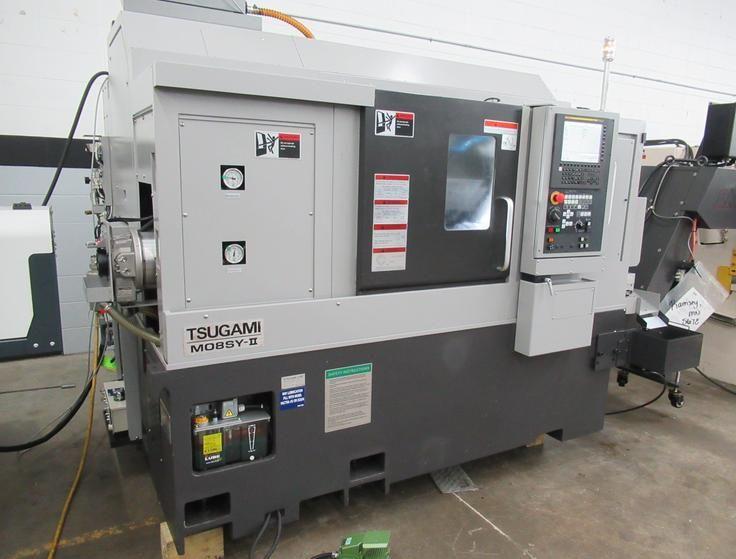

Tsugami M08SY Specifications
| Max Turning Diameter | 11.02" |
|---|---|
| Max Turning Length | 14.96" |
| Main Bar Capacity | 2.56" |
| Spindle Nose | A2-6 |
| Main Spindle Chuck Size | 8" |
| Max Main Spindle Speeds | 4,500 |
| Max RPM Main Spindle Orientation | Full C-Axis. (.001 Degree) |
| Main Spindle Bore | 2.87" |
| Sub-Spindle Chuck Size | 6" |
| Max Sub-Spindle Speeds | 4,500 |
| Max RPM Sub-Spindle Travel | 19.92" (A-Axis) |
| Sub-Spindle Orientation | Full C-Axis (.001 Degree) |
| Sub-Spindle Bore | 2.32" / 2.04 Thru Hole |
| Turret Capacity | 12 Stations |
| Other | Live Milling Capable |
| Turret Travels (X/Z) | 8.7" x 15.75" |
| Y Axis Travel | +/- 1.97" |
| Rapids | X: 945 / Z: 1,181 / Y: 472 IPM / A: 1,181 IPM |
| Live Tool Speeds | 5,000 Max RPM |
| Main Spindle Drive | 14.8/10 HP |
| Sub-Spindle Drive | 10/7.4 HP |
| Live Tool Drive Motor | 5 HP / 2HP. |
Do you have a Tsugami M08SY to sell?
We are actively seeking a 2022 Tsugami M08SY CNC Lathe, a remarkable turning center designed for high precision and efficiency in machining operations. This advanced machine boasts a maximum turning diameter of 11.02 inches and a turning length of 14.96 inches, making it ideal for a variety of applications. With a main bar capacity of 2.56 inches and an 8-inch main spindle chuck size, the M08SY is engineered to handle complex projects with ease. The Tsugami M08SY stands out with its impressive spindle capabilities, featuring maximum main spindle speeds of 4,500 RPM and a full C-axis orientation for precise machining.
The main spindle bore measures 2.87 inches, allowing for larger workpieces, while the sub-spindle chuck size of 6 inches and a maximum sub-spindle speed of 4,500 RPM enhance its versatility. The sub-spindle travel reaches 19.92 inches, coupled with a full C-axis orientation, ensuring that you can achieve intricate designs with minimal downtime. Equipped with a turret capacity of 12 stations and capable of live milling, this CNC lathe features turret travels of 8.7 inches in the X-direction and 15.75 inches in the Z-direction, complemented by Y-axis travel of +/- 1.97 inches. The rapid feed rates are impressive, with X at 945 IPM, Z at 1,181 IPM, Y at 472 IPM, and A at 1,181 IPM, allowing for swift and efficient production.
The M08SY's live tool speeds can reach up to 5,000 RPM, making it suitable for demanding applications. With a main spindle drive of 14.8/10 HP and sub-spindle drive of 10/7.4 HP, you can rely on its power and performance. If you own a Tsugami M08SY and are considering selling, contact us today to receive a competitive offer for your machine!
Frequently Asked Questions
What types of machinery and equipment do you purchase?
MTE buys a wide range of used and surplus machinery, including CNC machines, metalworking and fabrication equipment, industrial robots, inspection and testing systems, and material handling assets from industries such as metals manufacturing, oil and gas, automotive, and mining.
How does MTE assess the value of my surplus equipment?
Our team conducts a thorough review using current market data, equipment specifications, age, and condition. We provide fair market valuations given your specific situation to ensure you receive maximum value for your assets.
What is the process for selling my excess machinery to MTE?
We make it simple: contact us with asset details, and our specialists will review and coordinate an inspection if needed. After finalizing terms, we handle all logistics, removal, and payment for a smooth and efficient transaction.
How quickly can MTE complete the purchase and removal of my surplus equipment?
MTE prioritizes safe and efficient equipment removal, adhering to your company's specific requirements and timeframes. We coordinate all logistics to ensure the process is carried out safely and efficiently, minimizing risks and protecting both personnel and equipment.
What documentation is required to sell my used machinery?
We typically request detailed equipment information, such as make, model, year, and maintenance records, along with proof of ownership. Our team will guide you through all necessary paperwork to ensure a secure and transparent transaction.
Where is MTE located, and do you offer services outside Michigan?
While MTE is proudly based in Michigan, our services extend across the entire United States and internationally. No matter where your surplus machinery or equipment is located, our team has the experience and logistics capabilities to manage evaluations, purchases, and removals efficiently.
Is MTE an equipment broker?
No. Our business model is based on purchasing equipment outright — MTE does not act as a broker nor do we buy on consignment. We buy machinery and assets upfront, providing immediate payment and a straightforward transaction.
