CNC Boring Mills

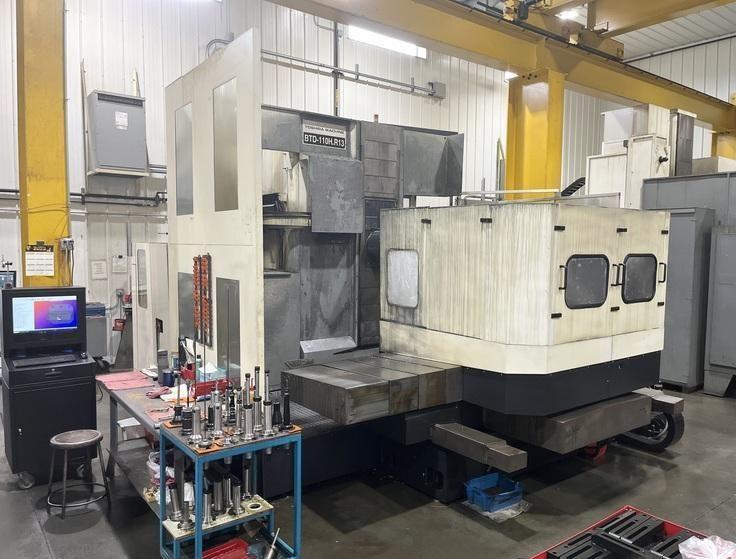

Toshiba BTD-110H.R13 (2013)

Call 800-822-9524

Sell your Toshiba BTD-110H.R13 2013 today.

MakeToshiba

ModelBTD-110H.R13

Year2013

CategoryCNC Boring Mills

ConditionUsed

Toshiba BTD-110H.R13 Specifications

X Axis Travel	63 in
Y Axis Travel	49.2 in
Z Axis Travel	44.5 in
W Axis Travel	19.7 in
Distance from Table Surface to Spindle Center	0~49.2 in
Distance from Table Center to Milling Spindle Gauge Plane	16.1~60.6 in
Table Working Surface	44.1 x 49.2 in
Table Loading Capacity	8,800 lbs
Spindle Diameter	4.3 in
Spindle Speed Range	5~3,000 min-1
Milling Spindle Nose Diameter	8.9 in
Spindle Taper	No.50
Rapid Traverse Rate X, Y, Z	472.4 ipm
Rapid Traverse Rate W	196.9 ipm
Rapid Traverse Rate B	720 deg/min
Feedrate X, Y, Z	0.04 ~ 236.2 ipm
Tool Storage Capacity	38
Maximum Tool Diameter	4.9 in
Maximum Tool Length	15.7 in
Maximum Tool Mass	55 lbs
Spindle Drive Motor	AC15/11 kW (20/15 HP)
Power Source	AC200/220V, 50/60Hz
Power Capacity	47 kVA
Compressed Air Supply Pressure	72.5 ~ 116 psi
Flowrate	500 Nl/min
Machine Height	147.6 in
Floor Space	198.8 x 215.4 in
Mass of Machine	48,400 lbs
Positioning Accuracy X, Y, Z	+/-0.005 in/full length
Positioning Accuracy W	+/-0.010 in/full length
Repeatability X, Y, Z	+/-0.003 in
Repeatability W	+/-0.008 in
Table Indexing Accuracy	+/-3 sec
Table Indexing Repeatability	+/-1.5 sec
Machine Color	R4-383 (Munsell 5Y8.4/0.5) and N2.5
Equipped With	Tosnuc 999 CNC Control, Full B Axis Built In Rotary Table, 38 Position Automatic Tool Changer, Table Guarding, Stainless Steel Way Covers, High Pressure Coolant Through Spindle With Integrated Chip Conveyor, Chiller, Renishaw Probing System (RMP60)
Other	Approx Machine Weight: 48,400 lbs
Other	Approx Machine Dimensions: 198.8 x 215.4 in
Other	Arbor Diameter: 4.3 in
Other	Control System: Tosnuc 999 CNC Control
Other	Chip Conveyor: Integrated
Other	Coolant System: High Pressure Coolant Through Spindle
Other	Parts Conveyor
Other	Servo Motor Type: AC
Other	Table Size: 44.1 x 49.2 in
Other	Table Load Capacity: 8,800 lbs
Other	Tool Holder Type: No.50

Do you have a Toshiba BTD-110H.R13 to sell?

We are actively seeking a 2013 Toshiba BTD-110H. R13 CNC Table Type Boring Mill. This impressive machine features a robust X-axis travel of 63 inches, Y-axis travel of 49.2 inches, and Z-axis travel of 44.5 inches, making it an excellent choice for various machining applications. With a spindle diameter of 4.3 inches and a speed range of 5 to 3,000 RPM, this model is designed to deliver precision and efficiency. The 38-position automatic tool changer adds to its versatility, allowing for seamless transitions between different tooling setups. The Toshiba BTD-110H. R13 is equipped with the Tosnuc 999 CNC control, providing user-friendly operation and advanced programming capabilities.

Its full B-axis built-in rotary table enhances its functionality, enabling complex machining operations to be performed with ease. The machine also includes features like high-pressure coolant through the spindle, integrated chip conveyor, and a Renishaw probing system (RMP60) for increased accuracy. With a table working surface of 44.1 x 49.2 inches and a loading capacity of 8,800 pounds, this boring mill is well-suited for large workpieces found in industries such as aerospace, manufacturing, and job shops. The machine's rapid traverse rates of 472.4 inches per minute in the X, Y, and Z axes ensure that it can handle demanding machining tasks efficiently. Sellers often part with machines like the Toshiba BTD-110H. R13 for various reasons, including upgrading to newer technology, downsizing operations, or plant closures. If you find yourself in a similar situation, we understand the importance of a smooth and straightforward selling process.

We are here to assist you every step of the way. At Superior Machine Tools, we buy nationwide and offer fast payments for your used CNC machines. We handle all logistics, ensuring that your selling experience is hassle-free. If you are ready to sell your Toshiba BTD-110H. R13 or any similar machinery, reach out to us today. We look forward to partnering with you in this process!
