Sell your Mazak INTEGREX i 100S 2015 today.

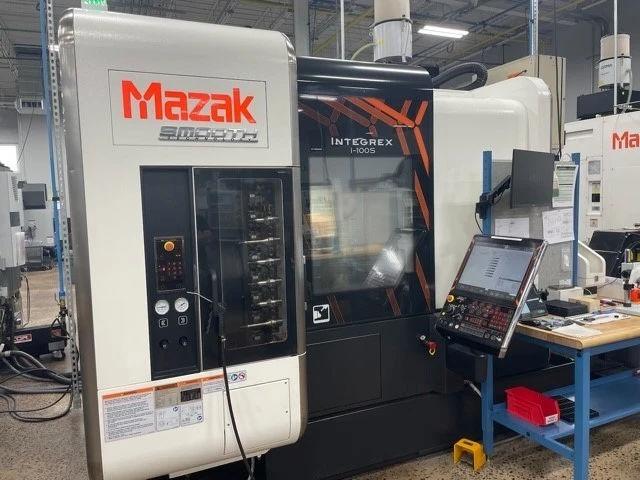

Mazak INTEGREX i 100S Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 1.65" |
| 2nd Spindle Chuck | 6" Diameter |
| 2nd Spindle HP | 10/15 |
| 2nd Spindle RPM | 6,000 |
| 12 Position Lower Turret | 1 Position |
| A Axis Travel | Not Provided |
| A Axis Rapid Traverse | Not Provided |
| Accuracy and Precision | Not Provided |
| Air Requirements | Not Provided |
| Approximate Dimensions | Not Provided |
| Approximate Machine Height | Not Provided |
| Approximate Machine Weight | Not Provided |
| ATC Capacity | 36 Tools |
| ATC Magazine Capacity | Not Provided |
| Automatic Tool Changer Capacity | Not Provided |
| Axes | X, Y, Z, W, B, C |
| Axis Rapid Rates | X/Y/Z: 1575 IPM, W: 1181 IPM, C: 555 IPM, B: 40 IPM |
| Axis Travels | X: 17.72", Z: 35.59", W: 35.55", Y: 8.27", B: 240 Degrees, C: True C-Axis |
| Axis X | 17.72" |
| Axis Y | 8.27", +/- 4.13" |
| Axis Z | 35.59" |
| B Axis Coupling | Not Provided |
| B Axis Head Indexing | Not Provided |
| B Axis Travel | -30 to 210 Degrees |
| B Axis Milling Spindle Speed | Not Provided |
| B Axis Spindle Speeds | Not Provided |
| C Axis Travel | Not Provided |
| Control Type | Not Provided |
| Maximum Cutting Diameter | 19.7" |
| Maximum Cutting Length | 33.6" |
| Maximum Tool Diameter | Full: 3.54", Adj Empty: 5.12" |
| Maximum Tool Length | 9.84" |
| Tool Change Time | 1.3 sec |
| Tool Holder Type | Not Provided |
| Weight Capacity | Not Provided |
| Workpiece Weight Capacity | Not Provided |
| Workpiece Size | Not Provided |
| Spindle Speed Range | Not Provided |
| Spindle Motor Power | 10/15 HP |
| Tool Positions | Not Provided |
| Rapid Traverse Rate | X/Y/Z: 1575 IPM, W: 1181 IPM, C: 555 IPM, B: 40 IPM |
| Feed Rate | Not Provided |
| Cutting Speed | Not Provided |
| Number of Tools | Not Provided |
| Tool Storage Capacity | 36 Tools |
| Chip Removal System | Not Provided |
| Coolant System | Not Provided |
| Drive System Type | Not Provided |
| Control System Type | Not Provided |
| Software Compatibility | Not Provided |
| Other | MAX SWING OVER CARRIAGE 20.9", MAX DISTANCE BETWEEN CHUCK JAWS 35.55", X-AXIS BELOW SPINDLE CENTER LINE 1.96", TURRET POSITIONING 0.0001 DEGREE (B-AXIS), MAIN SPINDLE CHUCK SIZE 6" Diameter, MAIN SPINDLE BAR CAPACITY 1.65", MAIN SPINDLE SPEED 6,000 RPM, MAIN SPINDLE INDEX - PROG TRUE C 0.0001 Degree, MAIN SPINDLE MOTOR 10/15 HP, MAIN SPINDLE POWER 105 ft lbs, MAIN SPINDLE C-AXIS CLAMPING TORQUE 1,315 ft lbs, 2nd SPINDLE CHUCK SIZE 6" Diameter, 2nd SPINDLE SPEED 6,000 RPM, 2nd SPINDLE INDEX/PROG TRUE C 0.0001 Degree, 2nd SPINDLE MOTOR 10/15 HP, 2nd SPINDLE POWER 105 ft lbs, 2nd SPINDLE C-AXIS CLAMPING TORQUE 1,315 ft lbs, ROTARY TOOL SPINDLE MOTOR 7.5/10/12 HP, ROTARY TOOL SPINDLE SPEED 12,000 RPM, TOOL SELECTION METHOD RANDOM, MAXIMUM TOOL WEIGHT 11 lbs. |
Do you have a Mazak INTEGREX i 100S to sell?
We are actively seeking a 2015 MAZAK INTEGREX i 100S CNC Multi-Tasking machine. This high-performance machine is ideal for shops looking to enhance their machining capabilities with its precision and versatility. The INTEGREX i 100S is designed to handle complex operations, combining turning and milling processes in one setup, which is a significant advantage for manufacturers aiming to reduce cycle times and improve efficiency. Featuring a maximum swing over carriage of 20.9 inches and a maximum machining diameter of 19.7 inches, this model accommodates a wide range of workpieces. With a maximum cutting length of 33.6 inches and a generous distance between chuck jaws of 35.55 inches, it provides the flexibility that modern machining demands.
The X-axis stroke measures 17.72 inches, while the Z-axis stroke is an impressive 35.59 inches, allowing for detailed and intricate machining tasks. The INTEGREX i 100S also boasts a robust dual spindle system, with both the main and second spindles featuring a 6-inch chuck size and capable of speeds up to 6,000 RPM. This means that you can efficiently handle multiple operations without the need for extensive setups. The machine's true C-axis control and B-axis positioning with 0.0001 degree increments further enhance its capability, allowing for precise machining of complex geometries. Sellers often part with their machines for a variety of reasons, including upgrading to newer technology, downsizing operations, or even closing facilities.
Whether your machine has been underused or you're simply looking to make space for new equipment, we understand the challenges you face and are here to help. At Superior Machine Tools, we buy machines like the MAZAK INTEGREX i 100S from sellers nationwide, offering fast payments and handling all logistics for a seamless selling experience. If you're ready to sell your CNC multi-tasking machine, don't hesitate to reach out to us. Our team is dedicated to providing a trustworthy and straightforward process, ensuring you receive the best value for your equipment.
