Sell your Mazak HYPERQUADREX 200MSY 2013 today.

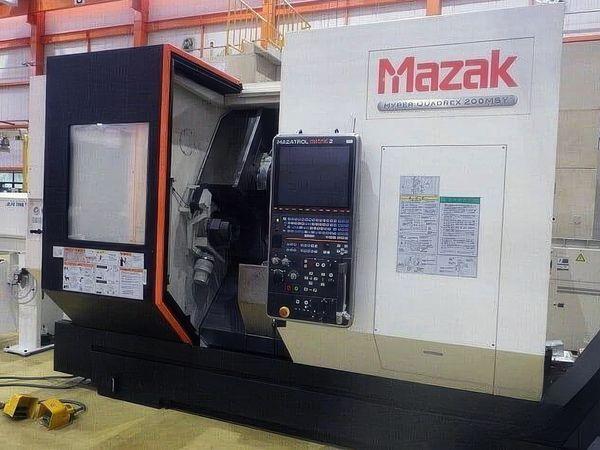

Mazak HYPERQUADREX 200MSY Specifications
| # Maximum Swing Over Upper Turret | 14.56" |
|---|---|
| # Maximum Swing Over Lower Turret | 12.598" |
| # Maximum Machining Diameter | Chucking: 13.54"(Upper) |
| # Maximum Machining Diameter | Chucking: 8.26"(Lower) |
| # Maximum Distance Between Chuck Jaws | 33.875" |
| # Spindle Nose | A2-6 |
| # Spindle Bore | 2.99" |
| # Maximum Bar Work | 2.5" |
| # Spindle Speed | 35-5,000 RPM |
| # Spindle Index (Programmable) | 0.0001 Deg. |
| # Spindle Horsepower (Cont./30 Min.) | 20/30 HP (AC) |
| # Spindle Torque (25% ED) | 344.4 ft-lbs. |
| # Type of Turret | 12 pos. Drum VDI |
| # Tool Shank Height | 1" |
| # Tool Size (Boring Bar Max. Dia.) | 1.5" |
| # Total Number of Tools | 12 |
| # Tool Selection Method | Bi-Directional |
| # Tool Index Time (1 Step) | 0.2 sec. |
| # Rotary Tool Spindle Speed | 35-6,000 RPM |
| # Rotary Tool Spindle Horsepower/(10 min) | 7.5 HP |
| # Rotary Tool Torque (3 min.) | 25.8 ft-lbs |
| # Maximum End Mill | 0.75" Dia. |
| # Maximum Drill | 0.75" Dia. |
| # Maximum Tap | M20 x 2.5 |
| # X1-Axis | 8.2" |
| # Y1-Axis | +/-2.0" |
| # Z1-Axis | 29.875" |
| # X2-Axis.Lower | 5.5625" |
| # Y2 Axis Lower | +0.75"/-2.0" |
| # Z2 Axis Lower | 32.125" |
| # W Axis | 34.075" |
| # X1-Axis Rapid Rate | 1181 IPM |
| # Y1-Axis Rapid Rate | 1024 IPM |
| # Z1-Axis Rapid Rate | 1417 IPM |
| # X2-Axis Lower Rapid Rate | 945 IPM |
| # Y2-Axis Lower Rapid Rate | 787 IPM |
| # Z2 Axis Lower Rapid Rate | 1417 IPM |
| # W-Axis Rapid Rate | 1181 IPM |
| # C1/C2-Axis | 555 RPM |
| # Floor Space (WxL) | 137.8" x 103" |
| # Machine Height | 97.8" |
| # Total Power Required (Machine Only) | 61.4 KVA |
| # Air Requirements | 72.5PSI/8.8CFM |
| # Machine Weight | 26,235 lbs. |
Do you have a Mazak HYPERQUADREX 200MSY to sell?
We are actively seeking a 2013 MAZAK HYPERQUADREX 200MSY Live Tooling Lathe. This advanced CNC lathe stands out with its impressive capabilities, making it a valuable asset for any machine shop. With a maximum swing over the upper turret of 14.56 inches and a maximum swing over the lower turret of 12.598 inches, this model can handle significant machining tasks with ease. The maximum machining diameter for the upper chuck reaches 13.54 inches, while the lower chuck accommodates up to 8.26 inches, providing versatility for a variety of projects. Equipped with a robust spindle, the MAZAK HYPERQUADREX 200MSY features a spindle speed ranging from 35 to 5,000 RPM, ensuring that it can tackle demanding operations efficiently.
The spindle index is programmable to 0.0001 degrees, allowing for high precision with 3,600,000 positions available. With a spindle horsepower of 20/30 HP (AC) and a spindle torque of 344.4 ft-lbs, this machine is built to deliver exceptional performance. The upper and lower turret configurations further enhance this lathe's functionality, featuring a 12-position drum VDI turret that allows for rapid tool changes. The tool index time is just 0.2 seconds per step, ensuring that production remains uninterrupted. Additionally, the rotary tool spindle speed can reach up to 6,000 RPM, with a maximum end mill diameter of 0.75 inches, facilitating intricate machining operations.
We understand that machine owners often consider selling for various reasons, such as upgrading to newer technology, downsizing operations, or even plant closures. Regardless of your reason, we're here to make the process easy and beneficial for you. At Superior Machine Tools, we buy CNC machines nationwide, including the MAZAK HYPERQUADREX 200MSY. We offer fast payments and handle all logistics, so you can focus on your next steps without the stress of selling your machine. If you're ready to explore your options, reach out to us today and see how we can assist you in selling your equipment quickly and efficiently.
