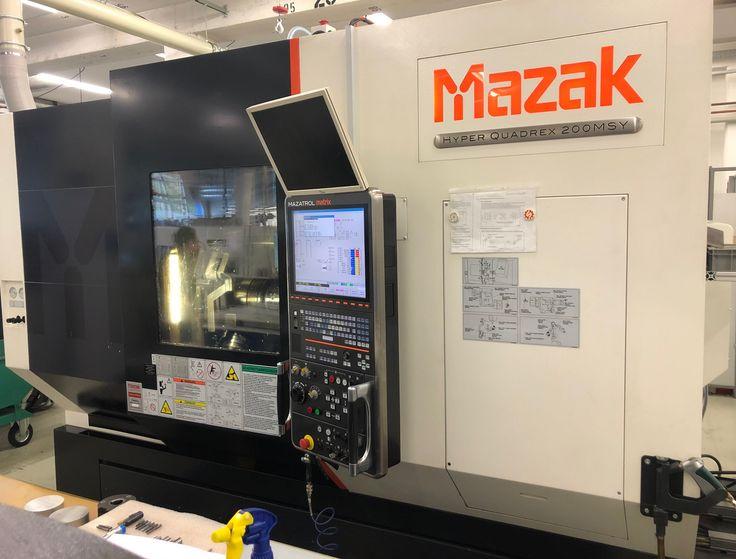

Mazak HYPER-QUADREX-200MSY (2011)
Sell your Mazak HYPER-QUADREX-200MSY 2011 today.
Mazak HYPER-QUADREX-200MSY Specifications
| Maximum Swing Over Upper Turret | 14.56" |
|---|---|
| Maximum Swing Over Lower Turret | 12.598" |
| Maximum Machining Diameter (Upper) | 13.54" |
| Maximum Machining Diameter (Lower) | 8.26" |
| Maximum Distance Between Chuck Jaws | 33.875" |
| Spindle Nose | A2-6 |
| Spindle Bore | 2.99" |
| Maximum Bar Work | 2.56" |
| Spindle Speed | 35-5,000 RPM |
| Spindle Horsepower (Cont./30 Min.) | 20/30 HP (AC) |
| Spindle Torque (25% ED) | 344.4 ft-lbs |
| Rotary Tool Spindle Speed | 35-6,000 RPM |
| Rotary Tool Spindle Horsepower/(10 min) | 7.5 HP |
| X1-Axis Travel | 8.2" |
| Y1-Axis Travel | +/-2.0" |
| Z1-Axis Travel | 29.875" |
| X2-Axis Lower | 5.5625" |
| Y2 Axis Lower | +0.75"/-2.0" |
| Z2 Axis Lower | 32.125" |
| W Axis | 34.075" |
| Chuck Size (2nd Spindle) | 8" |
| Workpiece Unload & Conveyor | 3" Dia x 7" L x 11 lbs |
| Chip Conveyor Type | Side Disposal (Hinge Type) |
| Barfeed | LNS Quick Load Servo 80-S2 Short Magazine |
| Collet Chuck | Royal Accu-Length A6-S26 |
| Control System | Mazatrol Matrix |
| Turret Type | 12 pos. Drum VDI |
| Coolant System | Hi-Pressure |
| Tool Holder Type | Automatic Tool Eye |
| Other | Chuck Air Blast |
| Other | Air Blow for Work Transfer |
| Other | Chuck Jaws Open/Close |
| Other | Air Blast Through First Spindle |
| Other | Relocation Device |
| Other | Turret Air Blast. |
Do you have a Mazak HYPER-QUADREX-200MSY to sell?
We are actively seeking a 2011 Mazak HYPER-QUADREX-200MSY CNC turning center. This high-performance machine is designed for versatility and efficiency, making it a valuable asset for any machining operation. With its impressive maximum swing over the upper turret of 14.56 inches and the ability to handle maximum machining diameters of 13.54 inches on the upper and 8.26 inches on the lower, this model excels in a variety of applications. The spindle operates at speeds ranging from 35 to 5,000 RPM, powered by a robust 20/30 HP AC motor, ensuring that you can tackle even the most demanding tasks with ease. Additionally, the spindle torque of 344.4 ft-lbs provides the necessary force for heavy-duty machining.
Equipped with a Mazatrol Matrix control system, the HYPER-QUADREX-200MSY offers intuitive programming and operational capabilities, enhancing productivity and minimizing setup times. The machine features a dual spindle configuration with an 8-inch chuck size on the second spindle, allowing for simultaneous operations that significantly reduce cycle times. The X1, Y1, and Z1 axes provide generous travels of 8.2 inches, +/-2.0 inches, and 29.875 inches, respectively, enabling intricate machining of complex components. Furthermore, the inclusion of a high-pressure coolant system and automatic tool eye enhances the overall efficiency and accuracy of the machining process. Sellers often consider parting with their machines for various reasons such as upgrading to newer models, downsizing operations, or even closing facilities altogether.
If you find yourself in a similar situation, we understand the importance of a seamless selling process. We are here to help you transition from your current equipment to future opportunities. At Superior Machine Tools, we buy nationwide and ensure fast payments, taking the stress out of selling your equipment. Our experienced team handles all logistics, so you can focus on what matters most. If you are ready to sell your 2011 Mazak HYPER-QUADREX-200MSY, reach out to us today and experience a hassle-free selling process.
