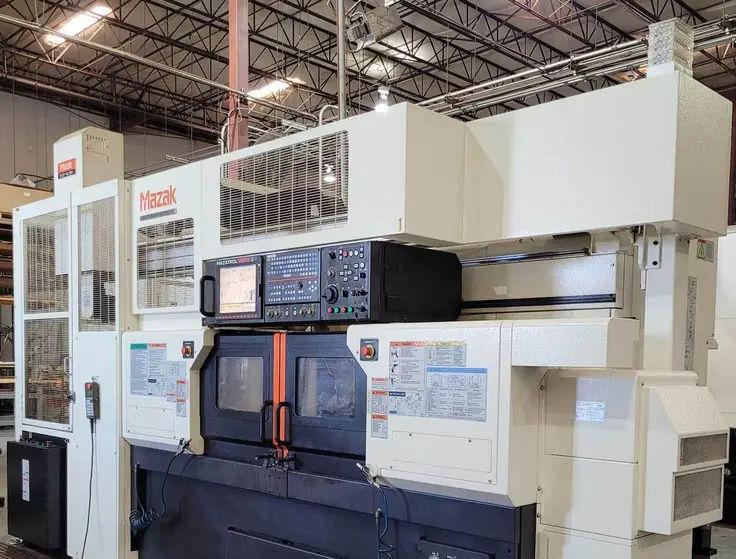

Mazak MULTIPLEX 6200Y W/GANTRY (2012)
Sell your Mazak MULTIPLEX 6200Y W/GANTRY 2012 today.
Mazak MULTIPLEX 6200Y W/GANTRY Specifications
| # Of Spindle Speeds | 1 |
|---|---|
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower | 30 |
| Number Of Turrets | 2 |
| Turret Tool Positions | 12 |
| Turret Rotary Tool Spindle Speed | 6,000 |
| Turret Rotary Tool Horse Power | 5 |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |
| Number Of Available Live Tool Holders | 3 |
| Control | CNC (Mazatrol Matrix 2) |
| Weight | 18,000 LBS |
| Maximum Swing | 12.5" |
| Max Turning Diameter | 10.24" |
| Main Spindle Bore/Max Bar Capacity | 2.4"/ 2.0" |
| Distance Between Spindles | 46.85" |
| X-Axis Travel | 9.06 |
| Z-Axis Travel | 17.25"/19.37" |
| Y-Axis Travel | +/- 2.00" |
| C-Axis Indexing | .001 DEGREE |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Number of Turrets | 2 |
| Number of Available Live Tool Holders | 3 |
| (Multiplex) Standard Chuck Dia. Main Spindle (R) | 8 |
| (Multiplex) Standard Chuck Dia. Main Spindle (L) | 8 |
| Stroke of Y-Axis (Multiplex) | +/- 2.00" |
| Hobbing Function | YES |
Do you have a Mazak MULTIPLEX 6200Y W/GANTRY to sell?
We are actively seeking a 2012 MAZAK MULTIPLEX 6200Y W/GANTRY live tooling lathe. This sophisticated machine is designed for precision and versatility, making it a valuable asset for any machining operation. With a maximum swing of 12.5 inches and a maximum turning diameter of 10.24 inches, the MULTIPLEX 6200Y allows for a wide range of applications. Its main spindle bore capacity of 2.4 inches and bar capacity of 2.0 inches enable effective handling of various workpieces, while the 46.85-inch distance between spindles provides ample space for complex setups. The X-axis travel of 9.06 inches and Z-axis travel of 17.25 inches for the main spindle ensure that your machining tasks can be completed efficiently. Additionally, the Y-axis travel of +/- 2.00 inches enhances the machine's capability for intricate operations.
The hydraulic chuck type and a maximum spindle speed of 5,000 RPM provide the power needed for demanding tasks, while the 30 horsepower rating ensures reliable performance. This model features two turrets, each equipped with 12 tool positions, allowing for quick tool changes and increased productivity. The rotary tool spindle speed of 6,000 RPM and 5 horsepower for each turret means you can undertake various operations without delay. The machine is also equipped with a high-pressure coolant system rated at 213 PSI, ensuring optimal cooling during intensive machining processes. Sellers often decide to part with their machines for several reasons, including upgrading to newer models, downsizing their operations, or even closing down facilities. If you're in a situation where you need to liquidate your equipment, we understand the challenges and are here to help.
We buy machines like the MAZAK MULTIPLEX 6200Y across the nation, offering fast payments and taking care of all logistics for a smooth transaction. Whether you're in the aerospace, manufacturing, or job shop industries, this machine can significantly enhance your production capabilities. If you're ready to sell your MAZAK MULTIPLEX 6200Y or any other machinery, reach out to us today. We look forward to assisting you in this process and ensuring you get the best value for your equipment.
