Sell your Mazak INT200IVST/1500 2006 today.

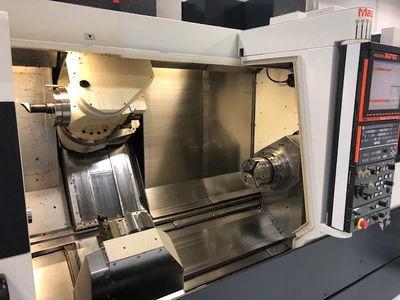

Mazak INT200IVST/1500 Specifications
| # Axis | 3 |
|---|---|
| 2nd Spindle Bore | 3.0" |
| 2nd Spindle Chuck | 8" |
| 2nd Spindle HP | 25 HP |
| 2nd Spindle RPM | 5000 RPM |
| 5 Axis Machining | Yes |
| A Axis Travel | 225 DEGREES |
| Accuracy and Precision | .0001 INDEXING |
| Approximate Dimensions | N/A |
| Approximate Machine Height | N/A |
| Approximate Machine Weight | 25,960 LBS. |
| ATC Capacity | 40 ATC |
| Axes | X, Y, Z |
| Axis X | 22.83" |
| Axis Z | 60.82" |
| B Axis Head Indexing | 225 DEGREES |
| B Axis Milling Spindle Speed | 12,000 RPM |
| B Axis Spindle Speeds | N/A |
| C Axis Travel | .0001 INDEXING |
| Maximum Cutting Diameter | 26" |
| Maximum Cutting Length | 60" |
| Maximum Tool Diameter | 4.92" |
| Maximum Tool Length | 11.8" |
| Tool Change Time | N/A |
| Tool Holder Type | N/A |
| Weight Capacity | N/A |
| Workpiece Weight Capacity | N/A |
| Workpiece Size | N/A |
| Spindle Speed Range | 5000 RPM |
| Spindle Motor Power | 30, 25 HP |
| Tool Positions | 9 |
| Rapid Traverse Rate | 1496 IPM |
| Cutting Speed | N/A |
| Number of Tools | N/A |
| Tool Storage Capacity | N/A |
| Chip Removal System | N/A |
| Coolant System | N/A |
| Drive System Type | N/A |
| Control System Type | N/A |
| Software Compatibility | N/A |
| Other | Bar Capacity 1, 2: 2.5", SOLID |
| Tool Diameter | 3.54" |
| Y - Axis Travel | 6.3" |
| W - Axis Travel Sub Spindle | 61.02" |
| Rapid Traverse Rates Y1, Y2, Y3 | 1024 IPM |
| Turret Tool Positions | 9 |
| Chuck Size 1, 2 | 8" |
| Distance Between Spindles | 61" |
| Spindle Nose 1, 2 | A2 - 6 |
| Spindle Horsepower 1, 2 | 30, 25 HP |
| B - Axis Milling Spindle Taper | CAPTO C6 |
| B - Axis Milling Spindle Horse Power | 25 HP |
| Z - Axis Travel Z1, Z2, Z3 | 60.82", 58.66" |
| Rapid Traverse Rates X1, X2, X3 | 1496 IPM 0 |
| Rapid Traverse Rates Z1, Z2, Z3 | 1496 IPM |
| Machine Weight | 25,960 LBS. |
Do you have a Mazak INT200IVST/1500 to sell?
We are actively seeking a 2006 MAZAK INT200IVST/1500 CNC multi-tasking machine. This advanced piece of equipment is designed for efficiency and versatility, making it a valuable asset for any machining operation. The MAZAK INT200IVST/1500 features a generous swing over bed of 26 inches and a turning diameter of 26 inches, allowing for the machining of a wide variety of parts. With a turning length of 60 inches and a distance between spindles measuring 61 inches, this machine can handle larger workpieces with ease. Equipped with dual spindles, both boasting a spindle bore diameter of 3.0 inches, this model delivers impressive performance with spindle speeds reaching up to 5000 RPM.
The machine is powered by a robust 30 HP spindle for the primary spindle and a 25 HP spindle for the secondary, ensuring that it can tackle even the most demanding tasks. The B-axis head indexing of 225 degrees enhances its multi-tasking capabilities, while the B-axis milling spindle operates at an impressive 12,000 RPM, providing the precision and speed that modern shops require. The MAZAK INT200IVST/1500 also features an automatic tool changer with 40 positions, allowing for quick tool changes and increased productivity. With an X-axis travel of 22.83 inches and a Z-axis travel of 60.82 inches, this machine offers ample movement for complex machining operations. The rapid traverse rates of up to 1496 IPM ensure that you can move quickly between operations, maximizing your efficiency.
