Sell your Makino A-92 2011 today.
Makino A-92 Specifications
| # Axis | 4 |
|---|---|
| X Axis Travel | 59.8" 1,518.9 mm |
| Y Axis Travel | 49.2" 1,249.7 mm |
| Z Axis Travel | 53.15" 1,350 mm |
| Spindle Taper | CAT 50 |
| Spindle Drive Motor | 35 hp |
| Maximum Spindle Speed | 10,000 RPM |
| Max Workpiece Size | 59" x 59" |
| Rapid Traverse | 1969 |
| ATC Capacity | 92 |
| # Of Pallets | 2 |
| Pallet Size | 31.5" x 39.4" 800.1 mm x 1,000.8 mm |
| Pallet Load Capacity | 6600 lb |
| 4th Axis | .001 |
| Chip Conveyor | Yes |
| Control System | CNC (Makino Professional 5) |
| Approximate Machine Dimensions | 367" x 248.9" |
| Approximate Machine Weight | 75,000 lbs |
| Air Required | 300 psi |
| Automatic Workpiece Measuring Equipment | Yes |
| Axis Acceleration/Deceleration | 280 Msec |
| Feed Rate | 50 M/min. 1,969 IPM |
| Axis Thrust Capacity (Continuous / Max) | 1600 / 4900 kg 3250 / 10780 lbs. |
| Axes Control | AC Digital Servo Motor |
| Ball Screw Diameter | #45 Twin Ball Screw (Core Cooling) |
| Axis Motor | 7 kW x 2 9.4 hp |
| Linear Guide Protection | One-Piece Stainless Steel Covers |
| Other | Part Probe, Tool Probe/Auto Tool Length Measure, Hi-Pressure Coolant System, Distance to Full Rapid: 117 mm 4.6" |
| Spindle Center to Top of Pallet | 100-1350 mm 3.9" – 53.15" |
| Spindle Nose to Center of Pallet | 150-1500 mm 5.9" – 59" |
| Spindle Drive Motor (15 Min / Continuous) | 35 / 25 kW 46.9 / 33.5 |
| Time to Full Rapid | 280 Msec |
| Rapid Traverse | 50 M/min. 1,969 IPM. |
Do you have a Makino A-92 to sell?

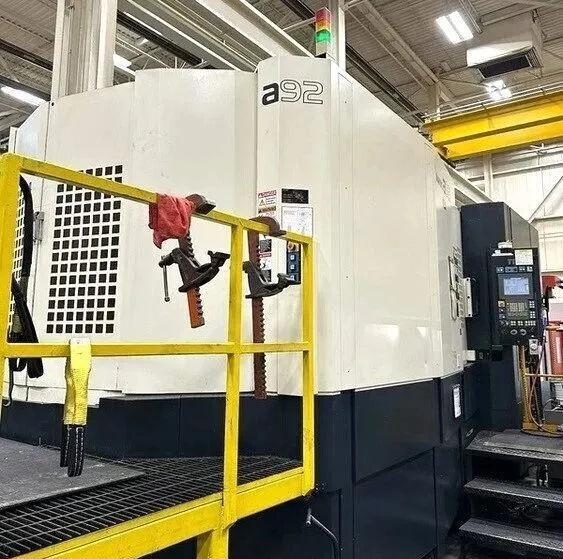

We are actively seeking a 2011 Makino A-92 Horizontal 4-Axis CNC Machining Center. This impressive machine offers remarkable capabilities with its 59.8" X-axis travel, 49.2" Y-axis travel, and 53.15" Z-axis travel, making it an ideal choice for precision machining in various industries. The A-92 features a robust spindle drive motor rated at 35 hp, allowing it to reach spindle speeds of up to 10,000 RPM, ensuring efficient and high-quality machining operations. Equipped with a CAT 50 spindle taper and a tool capacity of 92, this machining center is designed to handle a maximum workpiece size of 59" x 59". It also boasts a pallet load capacity of 6,600 lbs and includes two pallets with dimensions of 31.5" x 39.4".
The 4-axis pallet table indexing with an accuracy of 0.001 provides the precision that shops demand for complex machining tasks. Additionally, the machine includes features like a part probe and auto tool length measure, enhancing operational efficiency. The A-92 is designed with a high-pressure coolant system capable of 300 psi, ensuring optimal cooling during machining processes. Coupled with a chip conveyor, this machine streamlines operations and minimizes downtime, allowing for continuous productivity. It operates under the CNC control of the Makino Professional 5 system, providing user-friendly and efficient programming options.
Sellers often decide to part with machines like the Makino A-92 for various reasons, including upgrading to newer models, downsizing their operations, or even closing facilities. We understand that every seller has unique circumstances, and we respect the decision to sell your equipment. At Superior Machine Tools, we buy nationwide, offering fast payments and managing the logistics of the transaction so you can focus on your next steps. If you have a 2011 Makino A-92 or similar CNC machine, we encourage you to reach out to us. Let us help you make the selling process as smooth and beneficial as possible.
