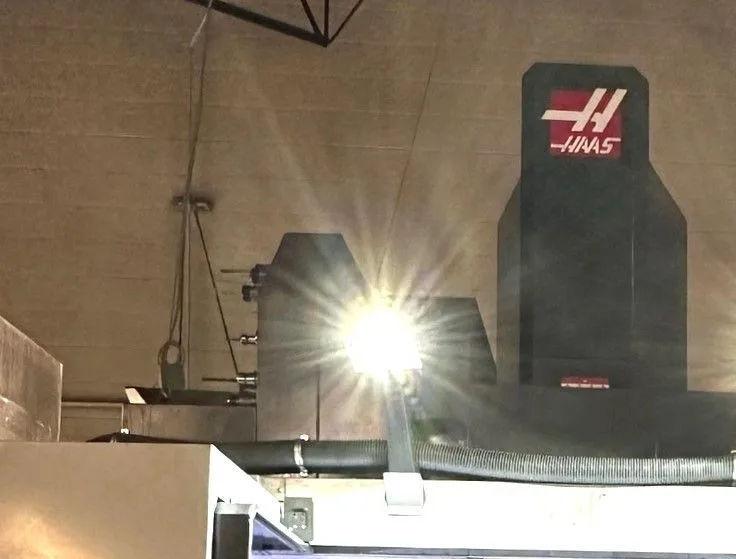

Sell your Haas VR-8 USED 2020 today.
Haas VR-8 USED Specifications
| X | 64" 1625.6 mm |
|---|---|
| Y | 40" 1016 mm |
| Z | 42" 1066.8 mm |
| # Axis | 5 |
| Power | 24 hp 17.9 kW |
| RPM | 20,000 RPM |
| # ATC | 50 |
| Taper | HSK 63 |
| Max Rating | 24.0 hp 18.0 kW |
| Max Speed | 20,000 rpm |
| Max Torque | 10.5 ft-lbf @ 12000 rpm 14.3 Nm @ 12000 rpm |
| B Axis - Tilt Travel | 120° to 120° |
| Max Speed | 112°/sec |
| Max Torque | 295 ft-lbf 400 Nm |
| Brake Torque | 403 ft-lbf 547 Nm |
| C Axis - Rotation Travel | ± 245° to 245° |
| Max Speed | 208°/sec |
| Max Torque | 264 ft-lbf 359 Nm |
| Brake Torque | 442 ft-lbf 600 Nm |
| Length | 64.0 in 1626 mm |
| Width | 36.0 in 914 mm |
| T-Slot Width | 0.626 in to 0.630 in 15.90 mm to 16.00 mm |
| T-Slot Center Distance | 4.92 in 125 mm |
| Number of Std T-Slots | 7 |
| Max Weight on Table (evenly distributed) | 4000 lb 1814 kg |
| Max Cutting Feedrates | 500 ipm 12.7 m/min |
| Rapids on X | 600 ipm 15.2 m/min |
| Rapids on Y | 600 ipm 15.2 m/min |
| Rapids on Z | 600 ipm 15.2 m/min |
| Max Thrust X | 3400 lbf 15124 N |
| Max Thrust Y | 3400 lbf 15124 N |
| Max Thrust Z | 5600 lbf 24910 N |
| Type | SMTC |
| Capacity | 50+1 |
| Max Tool Diameter (full) | 2.5 in 64 mm |
| Max Tool Diameter (adjacent empty) | 5.0 in 127 mm |
| Max Tool Length (from gage line) | 12 in 305 mm |
| Max Tool Weight | 12.0 lb 5.4 kg |
| Tool-to-Tool (avg) | 2.80 s |
| Chip-to-Chip (avg) | 3.60 s |
| Coolant Capacity | 95 gal 360 L |
| Air Required | 4 scfm @ 100 psi 113 L/min @ 6.9 bar |
| Inline Air Hose | 3/8 in |
| Coupler (Air) | 3/8 in |
| Air Pressure Min | 80 psi 5.5 bar |
| Domestic Pallet | 195.0 in x 120.0 in x 142.0 in 495 cm x 305 cm x 361 cm |
| Export Crate | 195.0 in x 123.0 in x 144.0 in 495 cm x 313 cm x 366 cm |
| Weight | 24800 lb 11250.0 kg |
| Domestic Pallet w/EC Option | 195 in x 120 in x 143 in 495 cm x 305 cm x 363 cm |
| Export Crate w/EC Option | 195 in x 123 in x 147 in 495 cm x 312 cm x 373 cm |
| Weight w/EC Option | 25100 lb 11385 kg |
| Spindle Speed | 20000 rpm |
| Spindle Power | 24.0 hp 18.0 kW |
| Input AC Voltage (3 Phase) - Low | 220 VAC |
| Full Load Amps (3 Phase) - Low | 70 A |
| Input AC Voltage (3 Phase) - High* | 440 VAC |
| Full Load Amps (3 Phase) - High* | 35 A. |
Do you have a Haas VR-8 USED to sell?
We are actively seeking a 2020 Haas VR-8 Vertical Machining Center to add to our inventory of high-quality used CNC machines. This impressive vertical machining center boasts an expansive work envelope with X, Y, and Z travels of 64", 40", and 42" respectively, making it ideal for a variety of machining applications. With a robust spindle power of 24 hp and a maximum spindle speed of 20,000 RPM, the Haas VR-8 ensures precision and efficiency in every operation. Equipped with a 5-axis capability, this machine allows for complex machining tasks with ease, while the high-speed tooling and cutting feed rates of up to 500 IPM enhance productivity. The VR-8 features a 50-tool automatic tool changer, allowing for quick transitions between different operations, which significantly reduces downtime.
Its HSK 63 taper ensures a secure and reliable tool holding system, providing consistent performance. Designed with durability in mind, the Haas VR-8 can handle a maximum weight of 4,000 lbs on its table, making it suitable for heavy-duty machining tasks. Additionally, with rapid traverse rates of 600 IPM in all axes, you can expect swift and efficient movement. The machine's advanced B and C axis capabilities provide extensive tilt and rotation travel, allowing for intricate machining angles and orientations. The integrated coolant system with a capacity of 95 gallons ensures optimal cooling during operations, prolonging tool life and improving finish quality.
At Superior Machine Tools, we recognize the value of your used Haas VR-8 Vertical Machining Center. If you're looking to sell or upgrade, we offer competitive pricing and a seamless process to help you transition to your next machine. Contact us today to discuss how we can assist you in selling your CNC equipment.
