Sell your Gleason 14 today.
Gleason 14 Specifications
| Other | Cone Distance: Max.: 805 mm |
|---|---|
| Pitch Angle (Max.) Shafts at 90° | 84°18' |
| Pitch Angle (Min.) | 5°42' |
| Extreme Ratio | 10 To 1 Ratio |
| Diametral Pitch (Coarsest) | 8.5 Mod. |
| Index Range | 5 to 100 inclusive and most numbers to 200 |
| Diameter of Taper Hole at Large End | 100 mm |
| Taper Per Foot | 15 mm |
| Depth of Taper | 150 mm |
| Diameter of Hole Through | 78 mm |
| Spindle Nose to Machine Center | 64 mm to 381 mm |
| Cutter Speeds (Strokes Per Minute) | 60 Cycle: 64 to 495, 50 Cycle: 51 to 420 |
| Feeds (Seconds Per Tooth) | 60 Cycle: 10 to 131, 50 Cycle: 11 to 128 |
| Main Motor | 3 HP, 1800 RPM |
| Hydraulic Pump Motor | 1.5 HP, 1200 RPM |
| Cutting Oil Pump Motor | 0.5 HP, 3600 RPM |
| Floor Space | 1420 x 410 mm |
| Approx Net Weight | 7850 kg |
| Approximate Dimensions | 1420 x 410 mm |
Do you have a Gleason 14 to sell?

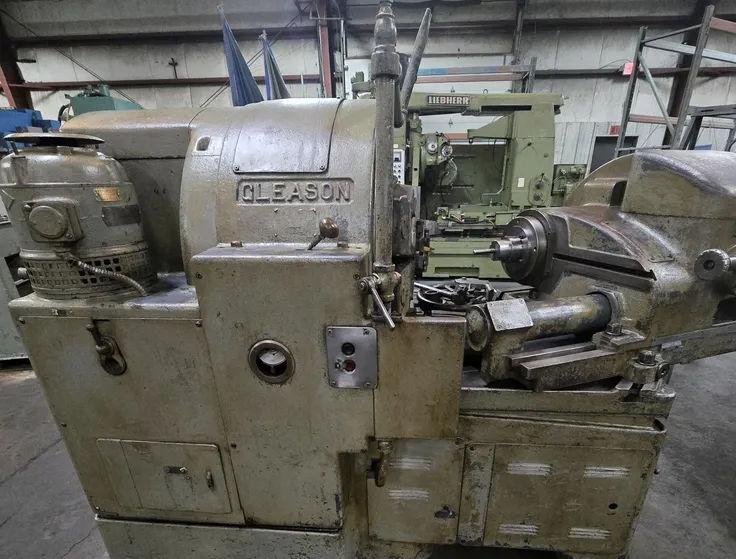

We are actively seeking a GLEASON 14 Gear Hobbing Machine. This model is well-regarded in the CNC gear machinery category for its robust capabilities and precision. With a maximum cone distance of 805 mm and a pitch angle range from 5°42' to 84°18', this machine is designed to handle a variety of gear hobbing tasks efficiently. The extreme ratio of 10:1 and a diametral pitch of 8.5 Mod. make it suitable for diverse applications, ensuring versatility in production. Equipped with an index range from 5 to 100 inclusive, and the ability to accommodate most numbers up to 200, the GLEASON 14 provides flexibility for different production requirements. The machine features a diameter of the taper hole at the large end measuring 100 mm, with a taper per foot of 15 mm and a depth of taper of 150 mm, allowing for precise gear shaping.
The spindle nose can be adjusted from 64 mm to 381 mm, further enhancing its adaptability. The cutter speeds are impressive, with a range of 64 to 495 strokes per minute for the 60 cycle, and 51 to 420 strokes per minute for the 50 cycle, enabling high-speed operations. The feeds range from 10 to 131 seconds per tooth for the 60 cycle, and 11 to 128 seconds per tooth for the 50 cycle, ensuring efficiency in the machining process. With a main motor rated at 3 HP and a hydraulic pump motor at 1.5 HP, this machine is built for durability and performance. Sellers often consider parting with their GLEASON 14 due to various reasons such as upgrading to newer technology, downsizing operations, or even closing facilities altogether. Whatever the reason, we understand that selling your machine can be a significant decision.
At Superior Machine Tools, we make the process simple and straightforward. We buy nationwide, offer fast payments, and handle all logistics, so you can focus on what matters most. If you have a GLEASON 14 or any similar machine you're considering selling, reach out to us today. Let us help you turn your unused equipment into cash quickly and effortlessly.
