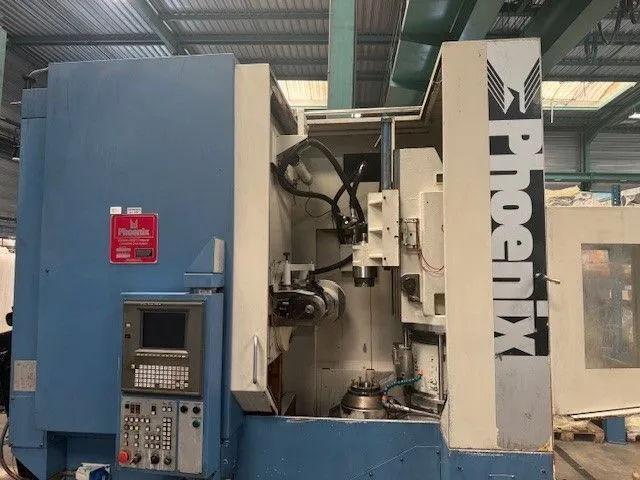

Sell your Gleason PHOENIX 1997 today.
Gleason PHOENIX Specifications
| Max Dia. Gear | 400 mm |
|---|---|
| Max Diametral Pitch | 2.01 |
| Horz/Vert | Vert |
| Axis | 6 |
| Length of Travel | 525 mm |
| Control | CNC (Fanuc 150MB) |
| Dimensions | 79" (Wide) x 133" (Deep) x 129.5" (Height) |
| Weight | 59,083 lbs / 26,800 Kg |
| Maximum workpiece diameter — with carousel* | 15.75" 400 mm |
| Maximum workpiece diameter — manual load | 17.72" 450 mm |
| Maximum part weight (carousel)** | 125 lbs 56 kg |
| Max diametral pitch / module (standard 100–1000 RPM) | 2 NDP 12 module |
| Max diametral pitch / module (optional 150–1500 RPM) | 2.5 NDP 10 module |
| Maximum hob spindle torque | 2500 in-lb 280 Nm |
| Maximum hob setting angle | ±45° ±45° |
| Total swivel motion –165° / +45° (210°) | –165° / +45° (210°) |
| Minimum number of teeth | 2 |
| Center distance Hob → Workpiece (min) | 1.38" 35 mm |
| Center distance Hob → Workpiece (max) | 12.20" 310 mm |
| Height Work spindle → Hob center (min) | 2.95" 75 mm |
| Height Work spindle → Hob center (max) | 9.25" 235 mm |
| Axial hob slide travel | 10.82" 275 mm |
| Radial slide travel | 10.83" 275 mm |
| Work spindle → Tailstock face (min) | 13.78" 350 mm |
| Work spindle → Tailstock face (max) | 14.96" 380 mm |
| Work spindle mounting diameter (with adapter) | 5.91"–12.60" 150–320 mm |
| Draw rod interface hole diameter | 5.98" 152 mm |
| Work spindle bolt circles | 5.91" & 7.48" 150 & 190 mm |
| Tapped holes | M10 × 1.5 × 20 mm |
| Max chucking force (hydraulic) | 17,600 lbf 78.3 kN |
| Maximum hob diameter | 6.25" 160 mm |
| Maximum hob length (tangential travel) | 4.88" 460 mm (varies; 50 mm min) |
| Hob arbor diameters (Available, not necessarily present) | 1.25" / 1.50" 32 / 40 mm |
| Hob spindle taper | ISO 40 |
| Hob spindle speeds — standard | 150–1000 RPM: 150–1000 RPM |
| Hob spindle speeds — optional | 150–1500 RPM: 150–1500 RPM |
| Low-speed range | 1–75 RPM |
| Optional low-speed | 15–150 RPM |
| Worktable speed | 197"/min 5000 mm/min |
| Radial traverse rate | 197"/min 5000 mm/min |
| Axial traverse rate | 197"/min 5000 mm/min |
| Hob drive motor (6000 RPM, 15 Alpha) | 20 HP 15 kW |
| Work spindle motor | 10 HP 7.5 kW |
| Hydraulic unit motor | 3 HP 2.2 kW |
| Coolant motor — high pressure | 11 HP 8 kW |
| Mist collector motor | 0.75 HP 0.6 kW |
| Machine size | 93" × 134" 2.36 × 3.40 m |
| Machine w/ carousel (approx.)* | 198" × 206" 5.8 × 7.2 m |
| Net machine weight | 26,200 lbs 11,884 kg |
| Net weight w/ carousel* | 26,600 lbs 12,128 kg. |
Do you have a Gleason PHOENIX to sell?
We are actively seeking a 1997 Gleason PHOENIX for our growing inventory of pre-owned metal cutting equipment. Superior Machine Tools purchases CNC machinery directly from sellers across the United States, and Gleason models like the PHOENIX are exactly the kind of well-maintained equipment our buyers are looking for. Selling a used Gleason PHOENIX doesn't have to be complicated. We pay fair market value based on current demand for Gleason metal cutting equipment, and we close transactions quickly — often within days of an initial inquiry.
There is no need to coordinate buyers, list on multiple marketplaces, or negotiate piecemeal. We make a single offer that reflects the current value of your machine. Once an offer is accepted, our logistics team handles the rest. We arrange professional rigging and removal, manage all transportation, and ensure the Gleason PHOENIX is moved off your floor with minimal disruption to your operations.
Whether you are upgrading to newer equipment, consolidating a facility, or liquidating an entire shop, we have the experience to make the process simple. If you have a 1997 Gleason PHOENIX you are considering selling, contact Superior Machine Tools today for a fast, no-obligation quote. We respond promptly, pay competitively, and remove the equipment on a timeline that works for you.
