Direct procurement1994 Model

Sell your Poreba TR135-B2/10M today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

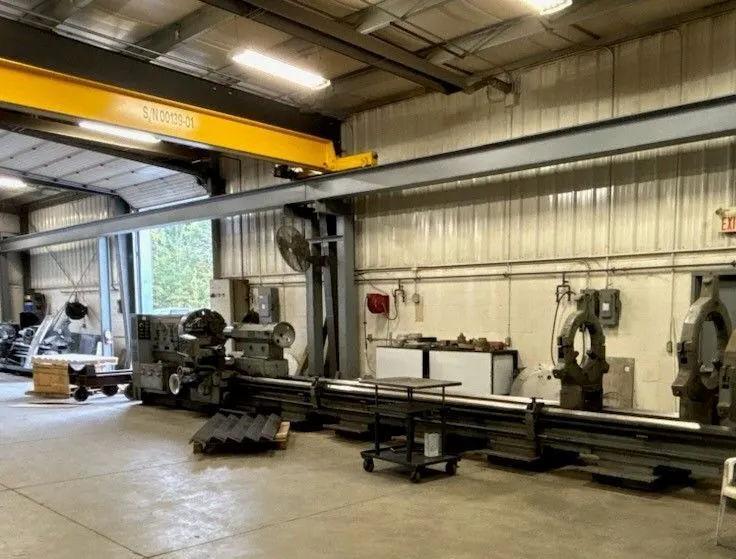

Make: Poreba
Model: TR135-B2/10M
Year: 1994
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Poreba TR135-B2/10M Specifications

Swing: 53"
Centers: 32'
Spindle Bore: 4.72"
Power: 55 hp
RPM: 500 RPM
Swing Over Cross Slide: 41"
Dimensions: 65.5’ (L) x 9.41’ (W)
Weight: 42,240 lbs.
Maximum Distance Between Centers: 396”
Swing in Gap: 65”
Length of Gap from Spindle Nose: 22”
Bed Width: 25.98”
Spindle Nose: A1-15
Spindle Speeds: (24) 5 - 500 RPM
Feeds – Longitudinal: 0.0035” - .400” TPR
Cross Slide Feeds: 0.0017 to .200 TPR
Top Slide Feeds: 0.0008 to .100 TPR
Threads - Inch: (61) ½ to 60 TPI
Threads - Metric: (62) 1 – 120 mm/Rev
Cross Slide Travel: 20-3/4”
Tailstock Spindle Diameter (No. 6 Morse Taper): 7-1/2”
Tailstock Travel: 12”
Maximum Weight Between Centers Unsupported: 20,000 Lbs.
Maximum Weight Between Centers With (1) Steady: 22,100 Lbs.
Maximum Weight Between Centers With (2) Steadies: 26,500 Lbs.
Main Motor: 55 HP.

Do you have a Poreba TR135-B2/10M to sell?

We are actively seeking a 1994 Poreba TR135-B2/10M engine lathe to purchase. This exceptional machine features a generous swing of 53 inches and an impressive center length of 396 inches, making it ideal for a variety of machining tasks. With a powerful 55 horsepower motor, this CNC lathe can achieve spindle speeds ranging from 5 to 500 RPM, allowing for versatility and precision in turning operations. The spindle bore diameter of 4.72 inches provides ample room for larger workpieces, while the swing over the cross slide measures 41 inches, ensuring that you can handle substantial components with ease.

The Poreba TR135-B2/10M is designed with robust specifications to accommodate substantial loads, with a maximum unsupported weight between centers of 20,000 lbs. When equipped with one steady rest, this capacity increases to 22,100 lbs., and with two steady rests, it can support up to 26,500 lbs. This capability is crucial for heavy-duty machining applications. The cross slide travel measures 20-3/4 inches, and the tailstock spindle diameter is 7-1/2 inches with a travel of 12 inches, enhancing its usability for various setups.

With a weight of approximately 42,240 lbs and dimensions of 65.5 feet in length and 9.41 feet in width, the Poreba TR135-B2/10M is a substantial piece of equipment that demands attention in any workshop. Whether you are looking to upgrade your machinery or simply need to sell your equipment, we are here to help. If you have a 1994 Poreba TR135-B2/10M engine lathe that you are looking to sell, contact us today to receive a competitive offer and ensure a smooth transaction.
