Direct procurement1998 Model

Sell your Nakamura-Tome SC-300 today.

MTE does not act as a broker, nor do we buy on consignment. We buy machinery and assets outright and arrange the pickup.

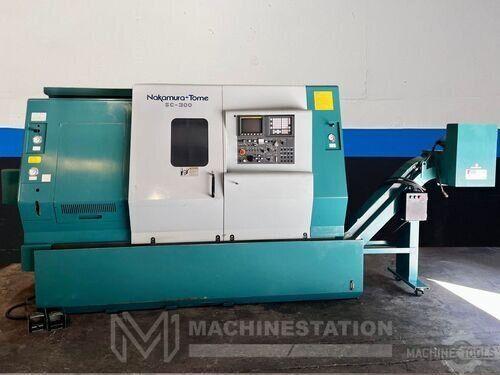

Make: Nakamura-Tome
Model: SC-300
CNC Control: CNC (Fanuc 21-T CNC Control)
Year: 1998
Category: CNC Lathes
Condition: Used / Surplus

Jason PuuriOwner, Superior Machine & Tool, Inc.Message From MTE Owner

Jason sets final pricing on the machines MTE buys.

Nakamura-Tome SC-300 Specifications

Swing: 22"
Machining Length: 23.62"
Chuck Size: 10"
Bar Capacity: 2.79"
Power: 30 hp
Max RPM: 3,500 RPM
Turning Dia: 13.77"
Tailstock: Yes
Live Tooling: No
Sub Spindle: No
Control: CNC (Fanuc 21-T CNC Control)
Dimensions: 126″ x 68″ x 77″ High Approx.
Weight: 10,140 lbs. Approx.
Max Bar Capacity: 2.79"
Swing Over Bed: 22.00"
Swing Over Carriage: 17.70"
Distance Between Centers: 28.09"
X Axis Travel: 8.75"
Z Axis Travel: 25.00"
Rapid Traverse X Axis: 629 IPM
Rapid Traverse Z Axis: 787 IPM
Spindle Nose: A2-8
Spindle Bore: 3.20"
Spindle Speed: 3500 RPM
Spindle Motor: 30 HP
Turret Capacity: 12 Stations
Tool Holders Type: VDI
Taper Size: MT#5
Tailstock Travel: 15.74"
Quill Diameter: 3.54"
Quill Travel: 3.93"
Power: 40 kva, 220v / 3-Phase.

Do you have a Nakamura-Tome SC-300 to sell?

We are actively seeking a 1998 Nakamura-Tome SC-300 CNC Lathe. This robust machine is designed for precision metal cutting, featuring a powerful 30 hp spindle that can reach a maximum RPM of 3,500.

With a swing of 22 inches and a machining length of 23.62 inches, the SC-300 is capable of handling a variety of workpieces, making it an excellent choice for diverse manufacturing applications. The Nakamura-Tome SC-300 boasts impressive specifications that enhance its versatility and performance. It has a chuck size of 10 inches and a bar capacity of 2.79 inches, allowing for efficient processing of both small and larger components.

The turning diameter of 13.77 inches ensures that this machine can accommodate a wide range of part sizes, while its weight of 10,140 lbs provides stability during operation, contributing to enhanced accuracy and reduced vibration. Sellers often part with machines like the Nakamura-Tome SC-300 due to various reasons such as upgrading to newer technology, downsizing their operations, or closing facilities altogether. If you have a Nakamura-Tome SC-300 or similar machine you wish to sell, we invite you to reach out to us today for a hassle-free experience.
