CNC Lathes

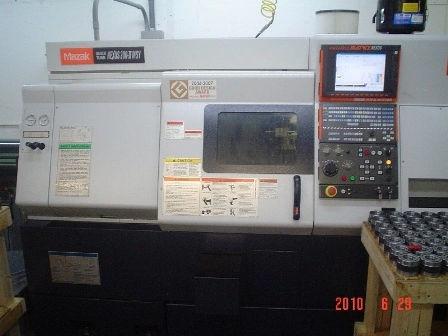

Mazak QTN 200-II MSY (2009)

Call 800-822-9524

Sell your Mazak QTN 200-II MSY 2009 today.

MakeMazak

ModelQTN 200-II MSY

Year2009

CategoryCNC Lathes

ConditionUsed

Mazak QTN 200-II MSY Specifications

Atc Capacity	12
Axis Of Travel	X: 9, Z: 22.65, Y: 4
Chuck Size	Main Spindle: 8", Sub Spindle: 6"
Chuck Type	Main Spindle: Hydraulic, Sub Spindle: Hydraulic
Main Spindle Bore Diameter	3"
Main Spindle Max Bar Capacity	2.56"
Main Spindle Speed	5,000 RPM
Main Spindle Horsepower	35
Sub Spindle Chuck Size	6"
Sub Spindle Bore Size	2.07"
Sub Spindle Speed	6,000 RPM
Sub Spindle Horsepower	10
Turret Tool Positions	12
Turret Rotary Tool Spindle Speed	4,500 RPM
Turret Rotary Tool Horsepower	7.0
High Pressure Coolant System (PSI)	213
Machine Control Type	CNC (Mazatrol Matrix Nexus)
Machine Weight	11,330 LBS
Maximum Swing	26.5"
Max Turning Diameter	14.75"
Distance Between Spindles	22.625"
Rapid Traverse Rate	X: 1,181 IPM, Z: 1,299 IPM, Y: 826 IPM
C-Axis Indexing	0.001 N/C Contouring
W-Axis Travel Sub Spindle	23"
Parts Catcher	Yes
Chip Conveyor	Yes
Bar Feed	Yes
Electrical Requirements	Not specified
Approx Machine Weight	Not specified
Other	295 In Max Cutting Diameter, A Axis Travel, Ac Main Motor, Ac Spindle Motor 30 Min, Accuracy And Precision, Accuracy Of Processed Surfaces, Air Flow, Air Required, Air Supply, Amperage, Angle Of Slant Bed, Approx Dimensions Lxwxh, Approx Weight, Approximate Dimensions, Approximate Height, Approximate Overall Dimensions, Atc Clamping Force, Automatic Tool Changer Capacity, Max Cutting Length, Max Tool Diameter, Tool Change Time, Tool Holder Type, Spindle Taper, Spindle Power, Machine Footprint, Voltage, Frequency, Phase.

Do you have a Mazak QTN 200-II MSY to sell?

We are actively seeking a 2009 MAZAK QTN 200-II MSY Multi Axis CNC Lathe. This impressive machine is designed to deliver precision and efficiency, making it an ideal choice for various machining needs. With a maximum swing of 26.5 inches and a turning diameter of 14.75 inches, the MAZAK QTN 200-II MSY provides ample space for handling a diverse range of workpieces. Its main spindle features a bore diameter of 3 inches and a maximum bar capacity of 2.56 inches, allowing for effective machining of larger components. The machine operates at a main spindle speed of 5,000 RPM, ensuring that it can handle high-speed applications with ease. Equipped with the advanced MAZATROL MATRIX NEXUS control, this CNC lathe offers intuitive operation and programming capabilities that enhance productivity.

The sub-spindle, which operates at a speed of 6,000 RPM, provides additional versatility, allowing for complex machining operations without the need to reposition the workpiece. The turret on this model boasts 12 tool positions, allowing for quick tool changes and efficient production runs. Additionally, with a hydraulic chuck size of 8 inches for the main spindle and 6 inches for the sub-spindle, this machine is well-suited for a variety of parts. We understand that machine owners often part with their equipment for several reasons, including upgrading to newer models, downsizing operations, or even closing facilities. Whether you're looking to upgrade your shop or simply need to liquidate assets, we are here to help. Our team at Superior Machine Tools specializes in purchasing used CNC machines directly from sellers like you, ensuring a seamless transaction process.

We buy nationwide and offer fast payments, so you can move on quickly and efficiently. We also take care of logistics, making the selling process as smooth as possible for you. If you own a 2009 MAZAK QTN 200-II MSY or a similar model, don't hesitate to reach out. Let us help you turn your asset into cash today!
