Sell your Mazak MULTIPLEX 6100 2002 today.

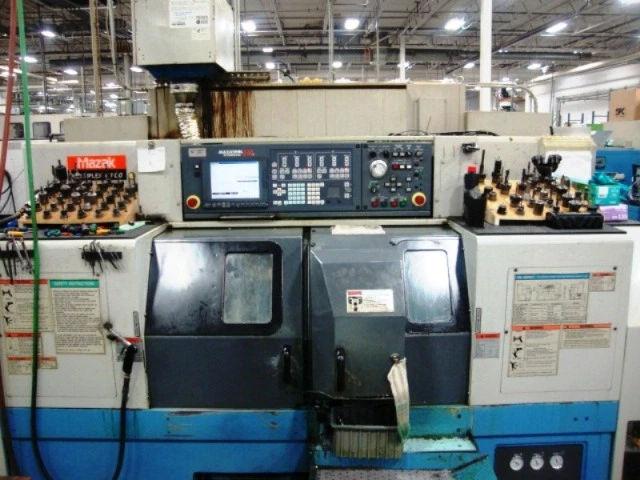

Mazak MULTIPLEX 6100 Specifications
| # Max Turning Diameter | 9.06" |
|---|---|
| Main Spindle Bore/Max Bar Capacity | 2.4/ 2.0 |
| Distance Between Spindles | 40.06" |
| X-Axis Travel | 7.87" |
| Z-Axis Travel | 14.4" |
| C-Axis Indexing | .0001 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.4" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 6,000 RPM |
| Main Spindle Horsepower | 20 |
| Number of Turrets | 2 |
| Turret Tool Positions | 12 |
| Turret Rotary Tool Spindle Speed | 4500 |
| Turret Rotary Tool Horse Power | 5 |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| Milling Spindle Synchronous Tapping | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| High Pressure Coolant System (PSI) | 1000 |
| Standard Chuck Dia. Main Spindle (R) | 8 |
| Stroke of Z-Axis (L-R) | 14.4 |
| Control | CNC (MAZATROL FUSION 640T) |
| Rapid Traverse X-Axis | 1181 IPM |
| Rapid Traverse Z-Axis | 1299 IPM |
| Rapid Traverse C-Axis | 400 IPM |
| Maximum Swing | 9.06" |
| Standard Cutting Diameter | 9.06" |
| Maximum Bar Diameter | 2" |
| Minimum Distance Between Spindle Faces | 10.15" |
| Spindle Bore | 2.4" |
| Spindle Indexing (C-Axis) | 0.001" 360,000 POS. |
| Spindle Motor | 20 HP |
| Turret Tools | 24 (12X2) |
| Turret Index Time | 0.18 SEC. |
| Tool Holder Shanks | MODIFIED VDI |
| Milling Spindle Spindle Speed | 4,500 RPM |
| Milling Spindle Motor | 5 HP |
| Max Drill | 0.63" |
| End Mill | 0.63" |
| Max Tap | ½ UNC |
| Machine Floor Space | 65" X 118" X 82.3" |
| Machine Weight | 14,100 LBS |
Do you have a Mazak MULTIPLEX 6100 to sell?
We are actively seeking a 2002 MAZAK MULTIPLEX 6100 Live Tooling Lathe. This versatile machine, known for its exceptional capabilities, features a maximum swing of 9.06 inches and a maximum turning diameter of the same measurement, allowing for precise machining of various components. The machine is equipped with a main spindle bore of 2.4 inches and a maximum bar capacity of 2 inches, making it suitable for a wide range of applications. With a main spindle speed of 6,000 RPM and a horsepower of 20, the MULTIPLEX 6100 ensures high productivity and efficiency in any job shop or manufacturing environment. One of the standout features of this model is its dual turret system, which includes 12 tool positions per turret, enabling quick tool changes and enhanced operational flexibility.
The turret rotary tool spindle speed reaches up to 4,500 RPM, and it boasts a horsepower of 5, which is ideal for milling and synchronous tapping needs. The machine is also designed with a high-pressure coolant system that operates at 1,000 PSI, ensuring optimal cooling during heavy machining tasks. Sellers often consider parting with machines like the MAZAK MULTIPLEX 6100 for various reasons, including upgrading to newer models, downsizing operations, or even closing entire facilities. As technology advances, many operators find that newer machines offer enhanced features and capabilities that better meet their production needs. If you're contemplating selling your 2002 MAZAK MULTIPLEX 6100, we are here to help.
At Superior Machine Tools, we buy used CNC machines nationwide, offering fast payments and handling all logistics for you. Whether you're in aerospace, job shops, or general manufacturing, we understand the value of your equipment and are committed to providing a seamless selling experience. Don't hesitate to reach out to us today to discuss how we can assist you in selling your machine quickly and efficiently.
Frequently Asked Questions
What types of machinery and equipment do you purchase?
MTE buys a wide range of used and surplus machinery, including CNC machines, metalworking and fabrication equipment, industrial robots, inspection and testing systems, and material handling assets from industries such as metals manufacturing, oil and gas, automotive, and mining.
How does MTE assess the value of my surplus equipment?
Our team conducts a thorough review using current market data, equipment specifications, age, and condition. We provide fair market valuations given your specific situation to ensure you receive maximum value for your assets.
What is the process for selling my excess machinery to MTE?
We make it simple: contact us with asset details, and our specialists will review and coordinate an inspection if needed. After finalizing terms, we handle all logistics, removal, and payment for a smooth and efficient transaction.
How quickly can MTE complete the purchase and removal of my surplus equipment?
MTE prioritizes safe and efficient equipment removal, adhering to your company's specific requirements and timeframes. We coordinate all logistics to ensure the process is carried out safely and efficiently, minimizing risks and protecting both personnel and equipment.
What documentation is required to sell my used machinery?
We typically request detailed equipment information, such as make, model, year, and maintenance records, along with proof of ownership. Our team will guide you through all necessary paperwork to ensure a secure and transparent transaction.
Where is MTE located, and do you offer services outside Michigan?
While MTE is proudly based in Michigan, our services extend across the entire United States and internationally. No matter where your surplus machinery or equipment is located, our team has the experience and logistics capabilities to manage evaluations, purchases, and removals efficiently.
Is MTE an equipment broker?
No. Our business model is based on purchasing equipment outright — MTE does not act as a broker nor do we buy on consignment. We buy machinery and assets upfront, providing immediate payment and a straightforward transaction.
“Selling my CNC machine with MTE was seamless. The team guided me through every step and offered a fair price quickly.”
Michael Rodriguez
Plant Operations Manager
Have one to sell?
MTE is the direct buyer. Quote in 24-48 hours, free pickup, pay on collection.
