Sell your Mazak MEGATURN A16NMC 2000 today.

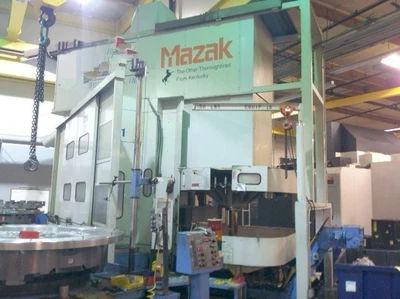

Mazak MEGATURN A16NMC Specifications
| # Tool Pockets | 30 |
|---|---|
| # Tool Turrets | 1 |
| 2 Speed Gear Box Spindle RPM | 1-230 RPM |
| Chuck Diameter | 63'' |
| Chuck Type | 4 Jaw Manual Chuck |
| Machine Dimensions | Approximate Machine Dimensions |
| Machine Height | Approximate Machine Height |
| Machine Weight | 70,400 LBS |
| Auto Tool Changer | 30 ATC |
| Axis | Z, W |
| Horsepower | 80 HP |
| Live Tooling | Yes |
| Travel Speed X | 472 IPM |
| Travel Speed Z | 551 IPM |
| C Axis Spindle | Yes |
| C Axis Indexing Precision | .001 Degree |
| Weight Capacity | 26,400 lbs |
| Other | Maximum Swing: 80'' |
| Maximum Turning Diameter | 74'' |
| Maximum Turning Height | 72'' |
| Maximum Workpiece Weight | 26,400 lbs |
| Rotary Tool Motor | 20 HP |
| Rotary Tool Speeds | 1,100 RPM |
| Vertical Rail Travel (w-axis) | 30'' |
| X - Axis Horizontal Ram Travel | R 23.6''/L 40'' |
| Rapid Traverse X, Z, Y | C,5 RPM |
| Main Spindle Chuck Size | Not specified |
| Main Spindle Turning Diameter Max | Not specified |
| Max Cutting Diameter | Not specified |
| Max Cutting Height | Not specified |
| Max Distance Between Centers | Not specified |
| Max Machining Diameter | Not specified |
| Max Part Weight | Not specified |
| Tooling Taper | Not specified |
| Machine Depth | Not specified |
| Machine Width | Not specified |
| Machining Length | Not specified |
| Machining Spindle Horsepower | Not specified |
| Magazine Capacity | Not specified |
| Main Motor | Not specified |
| Max Piece Weight | Not specified |
| Live Spindle Drive Motor | Not specified |
| Live Spindle Speed | Not specified |
| Live Spindle Torque | Not specified |
| Coolant Capacity | Not specified |
| Coolant Pump Motor | Not specified |
| Coolant Tank Capacity | Not specified |
| Cross Rail Travel | Not specified |
| Cutting Diameter | Not specified |
| Cutting Feed Rates | Not specified |
| Cutting Height | Not specified |
| Engine Power | Not specified |
| Ethernet Function | Not specified |
| Fixed Rail Above Table | Not specified |
| Floor Space | Not specified |
| Foundation Pit Depth | Not specified |
| Height | Not specified |
| Height Under Tool | Not specified |
| High Table RPM Range | Not specified |
| Hole Through Spindle | Not specified |
| Horizontal Travel | Not specified |
| Installed Power | Not specified |
| Length | Not specified |
| Weight Capacity | Not specified |
| Rapid Traverse X, Z, Y | X,472 IPM |
| Rapid Traverse X, Z, Y | Z,551 IPM |
Do you have a Mazak MEGATURN A16NMC to sell?
We are actively seeking a 2000 MAZAK MEGATURN A16NMC CNC Vertical Turret Lathe. This robust machine is designed for high-performance turning, equipped with a generous table diameter of 63 inches and a maximum swing of 80 inches, making it ideal for handling large workpieces. With a maximum turning diameter of 74 inches and a turning height of 72 inches, it can accommodate substantial components with ease. The MEGATURN A16NMC is capable of supporting a maximum workpiece weight of 26,400 pounds, ensuring it can tackle even the most demanding jobs in your shop. This model features two speed ranges, with spindle speeds ranging from 1 to 230 RPM, providing the flexibility needed for various machining tasks.
The machine is powered by an 80 HP table horse power, which delivers the necessary strength for heavy-duty operations. Additionally, it comes equipped with a 30 ATC (Auto Tool Changer) that boasts a tool change time of just 18 seconds, enhancing productivity and minimizing downtime. The rotary tool motor offers 20 HP and can reach speeds of 1,100 RPM, further expanding the machine's capabilities. For precise machining, the MEGATURN A16NMC includes a Z-axis vertical ram travel of 42 inches and a vertical rail travel (w-axis) of 30 inches. The X-axis horizontal ram travel measures R 23.6 inches and L 40 inches, coupled with a minimum table indexing of .001 degrees, allows for exceptional accuracy.
Rapid traverse rates of X, Z, and Y axes reach up to 472 IPM, 551 IPM, and 5 RPM respectively, ensuring efficient operation. Sellers often part with machines like the MAZAK MEGATURN A16NMC for a variety of reasons, such as upgrading to newer technology, downsizing operations, or even closing facilities. Whatever your reason may be, we understand that each situation is unique and are here to help you navigate the selling process. At Superior Machine Tools, we buy machines nationwide and offer fast payments, taking care of all logistics to make your selling experience seamless. If you're ready to sell your MAZAK MEGATURN A16NMC or any other used CNC machines, don't hesitate to reach out to us today!
