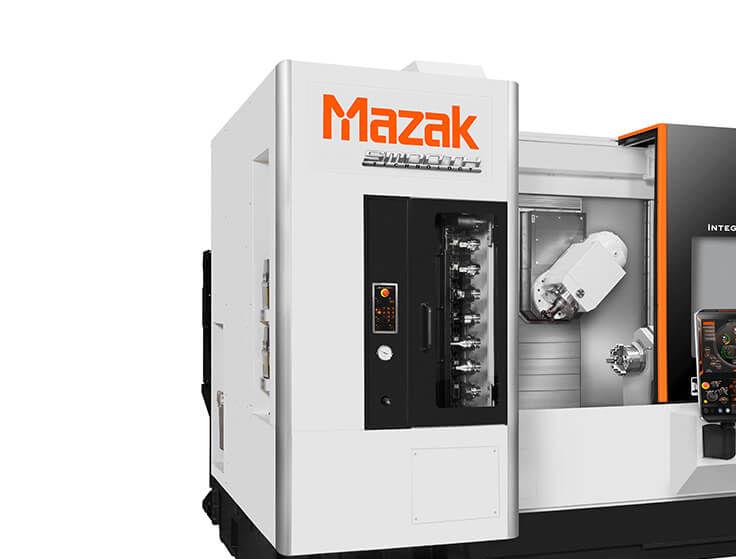

Sell your Mazak INTERGREX J200Y 2005 today.
Mazak INTERGREX J200Y Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 1.73'' |
| 2nd Spindle HP | 5/10 HP |
| 2nd Spindle RPM | 35-6000 RPM |
| 5 Axis Machining | Yes |
| A Axis Travel | +-225 DEGREE |
| A Axis Rapid Traverse | Not Provided |
| Approximate Dimensions | Not Provided |
| Approximate Machine Weight | 11,000 lbs |
| ATC Capacity | 40 ATC |
| Axes | X, Y, Z |
| Axis X | Not Provided |
| Axis Y | Not Provided |
| Axis Z | Not Provided |
| B Axis Travel | Not Provided |
| B Axis Spindle Speeds | Not Provided |
| C Axis Travel | Not Provided |
| Maximum Cutting Diameter | 19.69'' |
| Maximum Cutting Length | Not Provided |
| Maximum Tool Diameter | 2.76'' |
| Maximum Tool Length | 7.87'' |
| Tool Change Time | Not Provided |
| Tool Holder Type | Not Provided |
| Weight Capacity | Not Provided |
| Workpiece Weight Capacity | Not Provided |
| Workpiece Size | Not Provided |
| Spindle Speed Range | Not Provided |
| Spindle Motor Power | Not Provided |
| Tool Positions | Not Provided |
| Rapid Traverse Rate | 1024/1181/1299 IPM |
| Feed Rate | Not Provided |
| Cutting Speed | Not Provided |
| Number of Tools | Not Provided |
| Chip Removal System | Not Provided |
| Coolant System | Not Provided |
| Drive System Type | Not Provided |
| Control System Type | Not Provided |
| Software Compatibility | Not Provided |
| Other | Swing Over Bed: 20.87'' |
| Max. Swing Over Crosslide | 20.87'' |
| Spindle Bore Main | 2.99'' |
| Spindle Nose | A2-6'' |
| Maximum Bar Capacity | 2.56'' |
| Spindle Speeds | 5000 RPM |
| Spindle Index | 0.0001 Degree |
| Spindle Torque | 119 ft/lbs. |
| Machining Spindle Horsepower | 7.5/10 HP |
| Second-spindle Nose | A2-5'' |
| Second Spindle Rapid Traverse Rate | 1181 IPM |
| Type Of Turret | 1 Position W/ATC |
| Max Tool Weight | 8.8 lbs. |
| Rotary Tool Spindle Speeds | 10,000 RPM |
| Rotary Tool Spindle Horsepower | 7.5 HP AC |
| Rotary Tool Torque | 36 FT/LBS. |
| Y - Axis Travel | +/- 2.36'' |
| Spindle Speed Head 1, head 2 | 14.17'' |
| Horsepower Head 1, Head 2 | 30.87'' |
| C - Axis Sub Spindle Minimum Indexing | 0.001. |
Do you have a Mazak INTERGREX J200Y to sell?
We are actively seeking a 2005 MAZAK INTERGREX J200Y CNC Multi-Tasking Machine. This model stands out in the realm of mill-turn and turn-mill technology, providing exceptional versatility for a variety of machining tasks. With a swing over bed of 20.87 inches and a maximum cutting diameter of 19.69 inches, this machine is well-equipped to handle larger workpieces, making it a valuable asset in any shop environment. The spindle bore measures 2.99 inches, allowing for efficient material removal and precision machining. The MAZAK INTERGREX J200Y boasts impressive spindle speeds of up to 5,000 RPM, ensuring that you can achieve the desired finish quickly and efficiently. It features a second spindle with speeds ranging from 35 to 6,000 RPM, which further enhances its capability to perform complex operations.
The machine's spindle torque reaches 119 ft/lbs., providing the power needed for heavy-duty cutting tasks. Additionally, the rotary tool spindle can reach speeds of up to 10,000 RPM, making it suitable for high-speed machining applications. This model is designed with a 1 position turret equipped with an automatic tool changer (ATC) that has a magazine capacity of 40, allowing for quick tool changes and minimal downtime. The maximum tool diameter with all pockets full is 2.76 inches, and it can accommodate tool lengths of up to 7.87 inches with a maximum tool weight of 8.8 lbs. The Y-axis travel of +/- 2.36 inches and the A-axis travel of +/- 225 degrees provide the flexibility needed for intricate machining operations. Sellers often part with machines like the MAZAK INTERGREX J200Y for various reasons.
Whether you're upgrading to newer technology, downsizing operations, or closing a facility, we understand the importance of a smooth transition. We are here to help you navigate the selling process with ease. At Superior Machine Tools, we buy nationwide and offer fast payments, ensuring a hassle-free experience for our sellers. We also handle logistics, allowing you to focus on your next steps without the stress of transporting your equipment. If you're considering selling your 2005 MAZAK INTERGREX J200Y or similar CNC multi-tasking machines, reach out to us today to discuss how we can assist you in this process.
