Sell your Mazak INTEGREX j-200 2010 today.

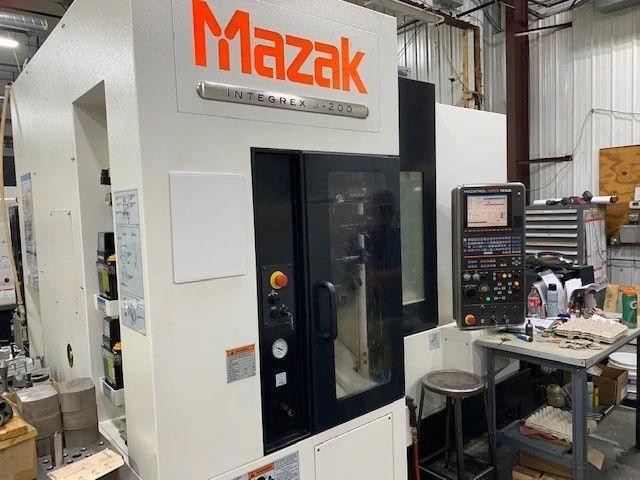

Mazak INTEGREX j-200 Specifications
| # Axis | 3 |
|---|---|
| 2nd Spindle Bore | 2.44" |
| 2nd Spindle Chuck | 8" |
| 2nd Spindle HP | 10 HP |
| 2nd Spindle RPM | 12,000 RPM |
| 5 Axis Machining | Yes |
| 12 Position Lower Turret | 1 Position W/ATC |
| A Axis Travel | 225 Degrees |
| Approximate Machine Weight | 13,530 LBS |
| ATC Capacity | 20 |
| ATC Magazine Capacity | 20 |
| Axis Travels | X: 17.72, Z: 21.65, Y: 7.87 |
| Axis X | 17.72 |
| Axis Y | 7.87 |
| Axis Z | 21.65 |
| B Axis Travel | 225 Degrees |
| B Axis Milling Spindle Speed | 12,000 RPM |
| C Axis Travel | 400 IPM |
| Control Type | CNC (MAZATROL MATRIX) |
| Maximum Cutting Diameter | 19.69" |
| Maximum Cutting Length | 19.69" |
| Maximum Tool Diameter | 3.54" |
| Maximum Tool Length | 7.87" |
| Tool Holder Type | CAPTO C-6 |
| Spindle Motor Power | 15 HP AC |
| Rapid Traverse Rate | Y: 1024 IPM, X: 1181 IPM, Z: 1299 IPM |
| Chip Removal System | Yes |
| Coolant System | Yes |
| Other | Parts Catcher: Yes |
| Other | Chip Conveyor: Yes |
| Other | Milling Spindle Synchronous Tapping: Yes |
| Other | Tool Eye Automatic Front Spindle: Yes |
| Other | Coolant Thru Milling Head: Yes |
| Other | High Pressure Coolant System (PSI): 213 |
| Other | Multi Tap Transformer: Yes |
| Other | Weight: 13,530 LBS |
Do you have a Mazak INTEGREX j-200 to sell?
We are actively seeking a 2010 MAZAK INTEGREX j-200 CNC Multi-Tasking Machine. This impressive machine features a maximum swing of 20.87 inches and a maximum turning diameter of 19.69 inches, making it a versatile choice for various machining tasks. With a main spindle bore diameter of 2.44 inches and a maximum bar capacity of 2 inches, this model is well-equipped to handle a range of materials and projects. The INTEGREX j-200 also boasts a main spindle speed of 5,000 RPM, allowing for efficient and precise machining operations. Equipped with a hydraulic 8-inch chuck and a tailstock, this machine provides the stability and support needed for high-quality results. The X-axis travel measures 17.72 inches, while the Z-axis travel reaches 21.65 inches, offering ample space for larger workpieces.
Additionally, the Y-axis travel of 7.87 inches enhances the machine's capability, making it suitable for complex machining tasks. The MAZAK INTEGREX j-200 is designed with advanced features such as a CNC Mazatrol Matrix control system, which simplifies programming and operation. It also includes a high-pressure coolant system that operates at 213 PSI, ensuring optimal performance during machining. The automatic parts catcher and chip conveyor further enhance productivity, making this machine an excellent choice for busy shops. Sellers often consider parting with machines like the INTEGREX j-200 for several reasons. Many upgrade to newer models that offer enhanced features and capabilities, while others may be downsizing or liquidating assets due to plant closures.
Some machines simply become underused as production needs change. Whatever the reason, we understand the importance of a smooth selling process. At Superior Machine Tools, we buy CNC machines nationwide and ensure fast payments to our sellers. We handle all logistics, making the transition as seamless as possible. If you have a 2010 MAZAK INTEGREX j-200 or similar machine, reach out to us today to discuss your options and receive a competitive offer. We value your time and investment, and we are here to assist you every step of the way.
