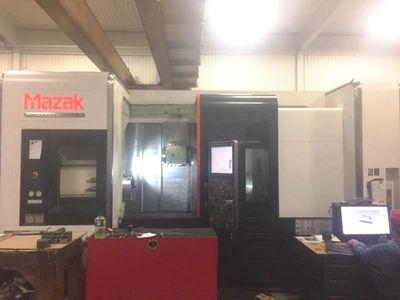

Mazak INTEGREX I400IIS1500 (2012)
Sell your Mazak INTEGREX I400IIS1500 2012 today.
Mazak INTEGREX I400IIS1500 Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 3.58" |
| 2nd Spindle Chuck | Not Provided |
| 2nd Spindle HP | 35 HP |
| 2nd Spindle RPM | 35-4000 RPM |
| 5 Axis Machining | Not Provided |
| ATC Capacity | 36 |
| ATC Magazine Capacity | Not Provided |
| Axes | X, Y, Z |
| Axis X | 24.2" |
| Axis Y | 9.84" |
| Axis Z | 62.4" |
| B Axis Travel | Not Provided |
| B Axis Milling Spindle Speed | 12,000 RPM |
| B Axis Spindle Speeds | Not Provided |
| C Axis Travel | Not Provided |
| Maximum Cutting Diameter | 25.9" |
| Maximum Cutting Length | 59.8" |
| Maximum Tool Diameter | 3.54" |
| Maximum Tool Length | 15.75" |
| Tool Change Time | 1.3 Sec. |
| Spindle Speed Range | 35-3300 RPM |
| Spindle Motor Power | 40 HP |
| Tool Positions | Not Provided |
| Rapid Traverse Rate | X: 1969 IPM, Y: 1575 IPM, Z: 1969 IPM, W: 1181 IPM |
| Feed Rate | Not Provided |
| Number of Tools | Not Provided |
| Tool Storage Capacity | Not Provided |
| Chip Removal System | Not Provided |
| Coolant System | Not Provided |
| Drive System Type | Not Provided |
| Control System Type | Not Provided |
| Software Compatibility | Not Provided |
| Other | Swing Over Bed: 25.9'', Max. Swing Over Cross Slide: 25.9'', Spindle Bore Main: 4.41'', Max Bar Cap.: 4.02'', Spindle Nose: A2-8, W - Axis Travel Sub Spindle: 61.96'', Main Spindle Torque: 1032 Ft-Lbs, Spindle Bore (First/Second): 3'', C - Axis Sub Spindle Minimum Indexing: .0001 degree, Second Spindle Travel: 61.96'', Rapid Traverse Rate C, B: 555 IPM, 40 RPM, ATC Tool Shank: Capto C-6, Max Tool Dia. / Adjacent: 3.54''/4.92'', Rapid Traverse Rate Y: 1575 IPM, B - Axis Indexing Min. Degree Increments / Degrees: .0001 Deg. Inc. / -30 + 210 Deg., C- Axis Main Spindle: .0001 Deg., Maximum Tool Weight: 26.5 LBS., Weight Capacity: Not Provided, Workpiece Weight Capacity: Not Provided, Workpiece Size: Not Provided. |
Do you have a Mazak INTEGREX I400IIS1500 to sell?
We are actively seeking a 2012 MAZAK INTEGREX I400IIS1500 CNC Multi-Tasking Machine. This advanced machine, known for its versatility in both milling and turning operations, is a valuable asset for any shop looking to enhance productivity. With a maximum swing over bed and cross slide of 25.9 inches, it accommodates a variety of workpieces, making it ideal for diverse applications. The INTEGREX I400IIS1500 offers a maximum machining diameter of 25.9 inches and a cutting length of 59.8 inches, providing the capability to handle larger components with ease. Equipped with a main spindle that boasts a horsepower of 40 and a torque of 1032 Ft-Lbs, this model ensures robust performance across various machining tasks.
The spindle speed range of 35 to 3300 RPM allows for precision cutting, while the sub-spindle, with speeds up to 4000 RPM and a horsepower of 35, further enhances operational flexibility. The impressive travel capabilities, including X-axis travel of 24.2 inches, Y-axis travel of 9.84 inches, and Z-axis travel of 62.4 inches, combined with rapid traverse rates of up to 1969 IPM, significantly reduce cycle times and increase throughput. Sellers often find themselves parting with machines like the INTEGREX I400IIS1500 for various reasons. Whether you are upgrading to newer technology, downsizing your operations, or closing a facility, we understand the need for a smooth transition. We are here to help you navigate this process with ease.
Our commitment to you is straightforward: we buy machines nationwide, offer fast payments, and handle all logistics to make the selling experience as seamless as possible. If you own a 2012 MAZAK INTEGREX I400IIS1500 or a similar model, we want to hear from you. Let us assist you in turning your equipment into cash while you focus on your next steps.
