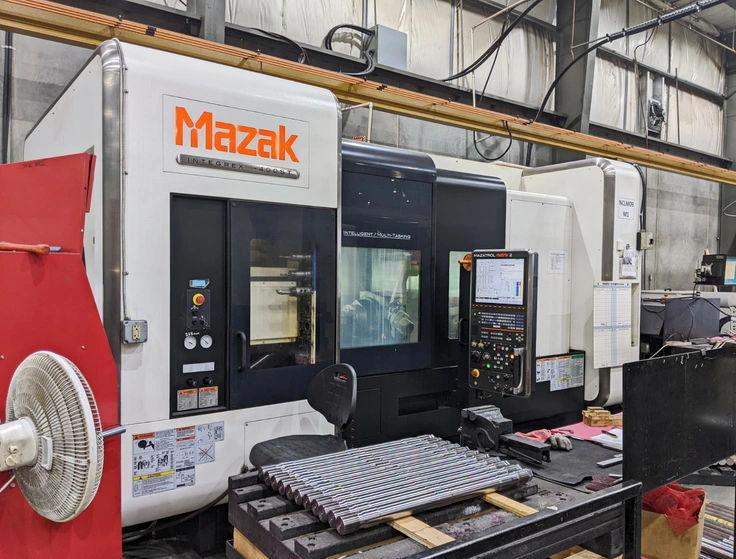

Mazak INTEGREX I-400ST-1500U (2011)
Sell your Mazak INTEGREX I-400ST-1500U 2011 today.
Mazak INTEGREX I-400ST-1500U Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 3.58" |
| 2nd Spindle Chuck Size | 10" |
| 2nd Spindle HP | 30 |
| 2nd Spindle RPM | 4,000 RPM |
| 12 Position Lower Turret | 9 |
| A Axis Travel | Not Available |
| A Axis Rapid Traverse | Not Available |
| Accuracy and Precision | Not Available |
| Air Requirements | Not Available |
| Approximate Dimensions | 205" X 110" X 107" |
| Approximate Machine Height | Not Available |
| Approximate Machine Weight | 37,840 lb |
| ATC Magazine Capacity | 36 |
| Axes | Not Available |
| Axis Rapid Rates | Not Available |
| Axis Travels | Not Available |
| Axis X | 24.21 |
| Axis Y | ±4.92″ |
| Axis Z | 62.4 |
| B Axis Coupling | Not Available |
| B Axis Head Indexing | 240° |
| B Axis Travel | +210° ~ -30° |
| B Axis Milling Spindle Speed | 12,000 RPM |
| B Axis Spindle Speeds | Not Available |
| C Axis Travel | 0.0001° |
| Control Type | CNC |
| Maximum Cutting Diameter | Not Available |
| Maximum Cutting Length | 59.8" |
| Maximum Tool Diameter | Not Available |
| Maximum Tool Length | Not Available |
| Tool Change Time | Not Available |
| Tool Holder Type | Not Available |
| Weight Capacity | Not Available |
| Workpiece Weight Capacity | Not Available |
| Workpiece Size | Not Available |
| Spindle Speed Range | Not Available |
| Spindle Motor Power | 40 |
| Tool Positions | Not Available |
| Rapid Traverse Rate | Not Available |
| Feed Rate | Not Available |
| Cutting Speed | Not Available |
| Number of Tools | Not Available |
| Tool Storage Capacity | Not Available |
| Chip Removal System | Not Available |
| Coolant System | Not Available |
| Drive System Type | Not Available |
| Control System Type | Not Available |
| Software Compatibility | Not Available |
| Other | Maximum Swing: 26.9" |
| Main Spindle Bore/Max Bar Capacity | 4.4"/ 4.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 25.9" |
| W-Axis Travel Sub Spindle | 61.96 in |
| Main Spindle Chuck Size | 12" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 4.4" |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 3,300 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 30 HP..... MAX RPM (MILLING TOOL) 12,000 RPM |
| Number of Turrets | 1 |
| Turret Type | KM-63 |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Measurement Lower Turret | Yes |
| Multi Tap Transformer | Yes |
| Rapid Traverse, X-Axis | 1969 |
| Rapid Traverse, Y-Axis | 1575 |
| Rapid Traverse, Z-Axis | 1969 |
| Control | CNC |
| Weight | 37,840 lb. |
Do you have a Mazak INTEGREX I-400ST-1500U to sell?
We are actively seeking a 2011 MAZAK INTEGREX I-400ST-1500U CNC Multi-Tasking Machine. This model is renowned for its exceptional versatility and efficiency in handling complex machining tasks. With a maximum swing of 26.9 inches and a maximum cutting length of 59.8 inches, it offers the capability to tackle a wide range of components, making it a valuable asset in any machine shop. Equipped with a main spindle that boasts a speed of up to 3,300 RPM and a sub-spindle that can reach 4,000 RPM, this machine is designed for high productivity and precision. The hydraulic chuck sizes of 12 inches for the main spindle and 10 inches for the sub-spindle ensure secure gripping of workpieces, while the impressive B-axis milling spindle speed of 12,000 RPM allows for intricate milling operations.
The INTEGREX I-400ST-1500U also features a sophisticated control system, providing operators with the tools they need to optimize performance. With an ATC magazine capacity of 36 and nine tool positions available on the turret, this machine is well-equipped for multitasking operations, significantly reducing setup times and increasing overall efficiency. Its rapid traverse rates of 1969 inches per minute in the X and Z axes, along with 1575 inches per minute in the Y axis, further enhance productivity, allowing for quick repositioning and minimal downtime. Sellers often consider parting with machines like this due to various reasons, such as upgrading to newer technology, downsizing operations, or even plant closures. Regardless of the reason, we understand the importance of a smooth transition when you decide to sell your equipment.
At Superior Machine Tools, we buy CNC machines nationwide, offering fast payments and handling all logistics to make the process as seamless as possible. If you own a 2011 MAZAK INTEGREX I-400ST-1500U or a similar machine, we would love to hear from you. Let us help you turn your unused equipment into cash today!
