Sell your Mazak INTEGREX e670II-H 2014 today.

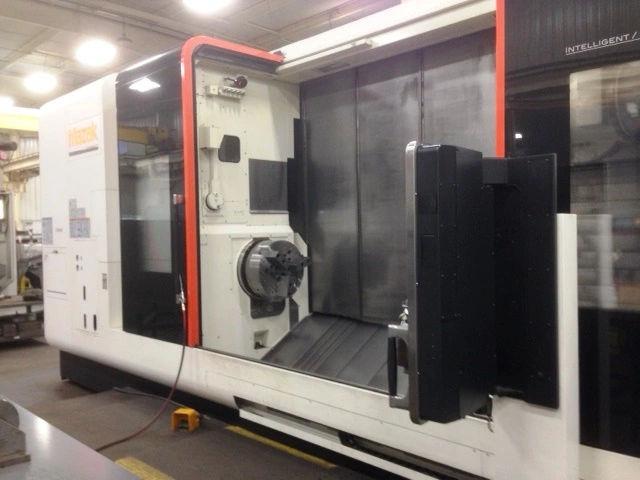

Mazak INTEGREX e670II-H Specifications
| # Axis | 3 |
|---|---|
| 2nd Spindle Bore | 10.2" |
| 2nd Spindle Chuck | Air |
| 2nd Spindle HP | 50 |
| 2nd Spindle RPM | 10,000 RPM |
| 5 Axis Machining | Yes |
| ATC Magazine Capacity | 120 |
| Axes | X, Y, Z |
| Axis X | 40.35" |
| Axis Y | 26.38" (+34.5/-32.5) |
| Axis Z | 162.91" |
| B Axis Travel | 30 DEG LEFT, 210 DEG RIGHT |
| B Axis Head Indexing | 0.0001 deg |
| B Axis Milling Spindle Speed | 10,000 RPM |
| B Axis Spindle Speeds | 10,000 RPM |
| C Axis Travel | .001 |
| Control Type | CNC (Mazatrol Matrix 2) |
| Maximum Cutting Diameter | 42.13" |
| Maximum Cutting Length | 157.48" |
| Spindle Motor Power | 60 HP (45 KW) |
| Tool Storage Capacity | 120 |
| Chip Removal System | Yes |
| Other | Long Boring Bar Holder: YES |
| Other | Steady Rest: Yes |
| Other | Chip Conveyor: Yes |
| Other | Tool Eye Automatic Front Spindle: Yes |
| Other | Tool Eye Automatic Second Spindle: Yes |
| Other | High Pressure Coolant System (PSI): 1000 |
| Other | Multi Tap Transformer: Yes |
| Other | SPECIFICATIONS: |
| Other | SPINDLE NOSE: A2-15 |
| Other | NUMBER OF SPINDLES: 1 |
| Other | RAPID TRAVERSE (X): 1575 IPM |
| Other | RAPID TRAVERSE (Y): 1575 IPM |
| Other | RAPID TRAVERSE (Z): 1575 IPM |
| Other | MILLING SPINDLE MOTOR: 50HP (AC37KW) |
| Other | LATHE SPINDLE BORE DIAMETER: (6.69"/6.10) / 1,600 RPM / A2-15 NOSE |
| Other | C-AXIS: 0.0001 DEGREE INCREMENT |
| Other | TOOL MAGAZINE (CAT): 120 |
| Other | A Axis Travel: |
| Other | A Axis Rapid Traverse: |
| Other | Accuracy and Precision: |
| Other | Air Requirements: |
| Other | Approximate Dimensions: |
| Other | Approximate Machine Height: |
| Other | Approximate Machine Weight: |
| Other | ATC Capacity: |
| Other | Automatic Tool Changer Capacity: |
| Other | Axis Rapid Rates: |
| Other | Axis Travels: |
| Other | B Axis Coupling: |
| Other | B Axis Spindle Speeds: |
| Other | Control: |
| Other | Distance Between Centers: 160" |
| Other | Distance Between Spindles: 160" |
| Other | Main Spindle Bore/Max Bar Capacity: 10.2/ 6.5 |
| Other | Main Spindle Chuck Size: 19.7" |
| Other | Main Spindle Chuck Type: Air |
| Other | Main Spindle Bore Diameter: 10.2" |
| Other | Main Spindle Maximum Bar Work: 6.5" |
| Other | Main Spindle Speed: 1,600 RPM |
| Other | Main Spindle Horsepower (CONT. /30 MINS): 60 |
| Other | Tool Change Time: |
| Other | Tool Holder Type: |
| Other | Weight Capacity: |
| Other | Workpiece Weight Capacity: |
| Other | Workpiece Size: |
| Other | Spindle Speed Range: |
| Other | Tool Positions: |
| Other | Feed Rate: |
| Other | Cutting Speed: |
| Other | Number of Tools: |
| Other | Tool Storage Capacity: 120 |
| Other | Drive System Type: |
| Other | Control System Type: |
| Other | Software Compatibility: |
| Other | Axes: |
| Other | B Axis Head Indexing: |
| Other | C Axis Travel: |
| Other | Maximum Cutting Diameter: |
| Other | Maximum Tool Diameter: |
| Other | Maximum Tool Length: |
| Other | Spindle Motor Power: |
| Other | Rapid Traverse Rate: |
| Other | Chip Removal System: |
| Other | Coolant System: |
| Other | MAXIMUM SWING |
| Other | MAXIMUM CUTTING LENGTH |
| Other | DISTANCE BETWEEN CENTERS |
| Other | TOOL MAGAZINE (CAT) |
| Other | SPINDLE NOSE |
| Other | NUMBER OF SPINDLES |
| Other | MAIN SPINDLE SPEED |
| Other | MILLING SPINDLE SPEED |
| Other | X-AXIS TRAVEL |
| Other | Y-AXIS TRAVEL |
| Other | Z-AXIS TRAVEL |
| Other | C-AXIS INDEXING |
| Other | B-AXIS ROTATION |
| Other | RAPID TRAVERSE (X) |
| Other | RAPID TRAVERSE (Y) |
| Other | RAPID TRAVERSE (Z) |
| Other | MAIN SPINDLE |
| Other | MILLING SPINDLE MOTOR |
| Other | LATHE SPINDLE BORE DIAMETER |
| Other | C-AXIS |
Do you have a Mazak INTEGREX e670II-H to sell?
We are actively seeking a 2014 MAZAK INTEGREX e670II-H CNC Multi-Tasking Machine. This impressive machine combines milling and turning capabilities, making it a valuable asset for any manufacturing environment. With a maximum swing of 42.13 inches and a maximum cutting length of 157.48 inches, this model is designed to handle large components with ease. Its distance between centers of 160 inches allows for versatile operations, accommodating various workpiece sizes. The main spindle speed reaches up to 1,600 RPM, providing robust performance for demanding tasks, while the B-axis milling spindle can achieve speeds of up to 10,000 RPM, enabling high precision machining.
Equipped with a 120-tool automatic tool changer, the INTEGREX e670II-H offers efficiency that shops appreciate, reducing downtime between setups. The machine features advanced controls with the Mazatrol Matrix 2 system, giving operators intuitive programming capabilities that enhance productivity. The main spindle bore diameter of 10.2 inches and maximum bar work capacity of 6.5 inches ensure that this machine can accommodate a wide variety of materials and component sizes. Sellers often part with machines like the INTEGREX e670II-H for several reasons, including upgrading to newer models, downsizing operations, or even closing facilities. Regardless of the reason, we understand that selling your machinery can be a significant decision, and we are here to make the process as seamless as possible.
At Superior Machine Tools, we buy used CNC machines nationwide, offering competitive prices and fast payments. We handle all logistics, ensuring that you can focus on what matters most. If you own a 2014 MAZAK INTEGREX e670II-H or a machine with similar specs, we invite you to reach out to us. Let's turn your machinery into cash quickly and efficiently. Contact us today and discover how easy it can be to sell your CNC equipment.
Frequently Asked Questions
What types of machinery and equipment do you purchase?
MTE buys a wide range of used and surplus machinery, including CNC machines, metalworking and fabrication equipment, industrial robots, inspection and testing systems, and material handling assets from industries such as metals manufacturing, oil and gas, automotive, and mining.
How does MTE assess the value of my surplus equipment?
Our team conducts a thorough review using current market data, equipment specifications, age, and condition. We provide fair market valuations given your specific situation to ensure you receive maximum value for your assets.
What is the process for selling my excess machinery to MTE?
We make it simple: contact us with asset details, and our specialists will review and coordinate an inspection if needed. After finalizing terms, we handle all logistics, removal, and payment for a smooth and efficient transaction.
How quickly can MTE complete the purchase and removal of my surplus equipment?
MTE prioritizes safe and efficient equipment removal, adhering to your company's specific requirements and timeframes. We coordinate all logistics to ensure the process is carried out safely and efficiently, minimizing risks and protecting both personnel and equipment.
What documentation is required to sell my used machinery?
We typically request detailed equipment information, such as make, model, year, and maintenance records, along with proof of ownership. Our team will guide you through all necessary paperwork to ensure a secure and transparent transaction.
Where is MTE located, and do you offer services outside Michigan?
While MTE is proudly based in Michigan, our services extend across the entire United States and internationally. No matter where your surplus machinery or equipment is located, our team has the experience and logistics capabilities to manage evaluations, purchases, and removals efficiently.
Is MTE an equipment broker?
No. Our business model is based on purchasing equipment outright — MTE does not act as a broker nor do we buy on consignment. We buy machinery and assets upfront, providing immediate payment and a straightforward transaction.
“Selling my CNC machine with MTE was seamless. The team guided me through every step and offered a fair price quickly.”
Michael Rodriguez
Plant Operations Manager
Have one to sell?
MTE is the direct buyer. Quote in 24-48 hours, free pickup, pay on collection.
