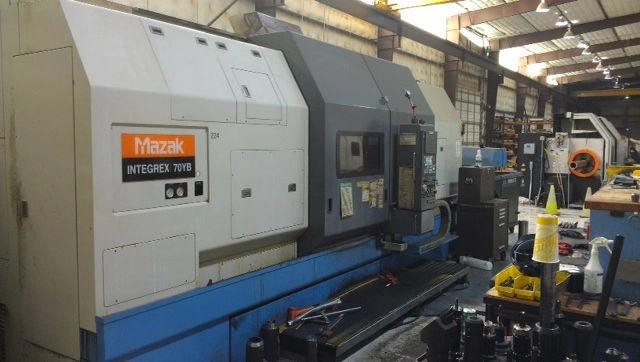

Mazak INTEGREX 70 YB Specifications
| # Axis | 5 |
|---|---|
| 2nd Spindle Bore | 10.24" |
| 2nd Spindle Chuck | Air |
| 2nd Spindle HP | 50/60 |
| 2nd Spindle RPM | 1 - 750 RPM |
| 12 Position Lower Turret | 2 Position, W/ATC |
| A Axis Travel | Not found |
| A Axis Rapid Traverse | Not found |
| Accuracy and Precision | Not found |
| Air Requirements | 71 PSI / 14 CFM |
| Approximate Dimensions | 330.9" X 143.7" X 129.45" |
| Approximate Machine Height | 129.45" |
| Approximate Machine Weight | 45,194 LBS |
| ATC Magazine Capacity | 30 |
| Axes | Not found |
| Axis Rapid Rates | Not found |
| Axis Travels | X: 39.96", Y: +/- 5.91", Z: 80.1" |
| Axis X | 39.96" |
| Axis Y | +/- 5.91" |
| Axis Z | 80.1" |
| B Axis Coupling | Not found |
| B Axis Head Indexing | 0.001 deg |
| B Axis Travel | 210 |
| B Axis Milling Spindle Speed | Not found |
| B Axis Spindle Speeds | Not found |
| C Axis Travel | 0.001 |
| Control Type | CNC (MAZATROL PC-FUSION-CNC 640MT) |
| Maximum Cutting Diameter | 36.02" |
| Maximum Cutting Length | 78.15" |
| Maximum Tool Diameter | 6.3" |
| Maximum Tool Length | 18.11" |
| Tool Change Time | 2.5 SEC |
| Tool Holder Type | Not found |
| Weight Capacity | Not found |
| Workpiece Weight Capacity | Not found |
| Workpiece Size | Not found |
| Spindle Speed Range | 1 - 750 RPM |
| Spindle Motor Power | 50/60 HP (AC) |
| Tool Positions | Not found |
| Rapid Traverse Rate | Not found |
| Feed Rate | Not found |
| Cutting Speed | Not found |
| Number of Tools | Not found |
| Tool Storage Capacity | 30 |
| Chip Removal System | Yes |
| Coolant System | Yes |
| Drive System Type | Not found |
| Control System Type | Not found |
| Software Compatibility | Not found |
| Other | Tail Stock/Sub Spindle: Tail Stock |
| Other | MAZAK INTEGREX 70YB CNC TURNING & MACHINING CENTER |
| Other | NEW 2001 |
| Other | MAXIMUM SWING 36.02" |
| Other | MAXIMUM SWING OVER CARRIAGE 16.5" - 30.3" |
| Other | NOTE: DEPENDS UPON WORKPIECE LENGTH, TOOL |
| Other | MAGAZINE TYPE AND Y AXIS POSITION |
| Other | MAXIMUM CUTTING DIAMETER: CHUCKING 36.02" |
| Other | NOTE: CONSULT DETAIL SPECIFICATIONS FOR EXACT |
| Other | VALUE. DEPENDS UPON TOOLING. |
| Other | MAIN SPINDLE SPECIFICATIONS: |
| Other | OPTIONAL 10.24" SPINDLE BORE: |
| Other | SPINDLE NOSE A2-15 |
| Other | SPINDLE BORE 10.24" |
| Other | SPINDLE TORQUE 1112 FT/LBS |
| Other | TOOL SHANK HEIGHT 1.25" |
| Other | TOOL SIZE (BORING BAR MAX. DIA.) 2.0" |
| Other | TOOL SELECTION METHOD RANDOM |
| Other | MAX. TOOL DIA. W/ALL POCKETS FULL 4.72" |
| Other | MAX. TOOL DIA. W/ADJACENT POCKETS EMPTY 6.3" |
| Other | MAXIMUM TOOL WEIGHT 44 LBS. |
| Other | ATC TOOL SHANK-ROTARY TOOL CAT 50 |
| Other | TURNING TOOL MAZAK 60MM VDI |
| Other | ROTARY TOOL SPINDLE SPEED/RANGES 18 - 4,000 RPM / 1 |
| Other | ROTARY TOOL SPINDLE HORSEPOWER (15 MINS) 30 H.P. (A.C.) |
| Other | ROTARY TOOL TORQUE 159.1 FT/LBS |
| Other | MAXIMUM FACE MILL 4" |
| Other | MAXIMUM END MILL 1.57" |
| Other | MAXIMUM DRILL 1.57" |
| Other | MAXIMUM TAP 1-1/8 - 7 UNC |
| Other | B-AXIS TRAVELS 210 DEG.(.001 DEG. INCREMENTS) |
| Other | Y-AXIS RAPIDS 315 IPM |
| Other | X-AXIS RAPIDS 472 IPM |
| Other | Z-AXIS RAPIDS 590 IPM |
| Other | C-AXIS RAPIDS 15 RPM |
| Other | TAILSTOCK SPINDLE CENTER MT #6 |
| Other | TAILSTOCK QUILL DIAMETER 7.09" |
| Other | TAILSTOCK QUILL TRAVEL 6.3" |
| Other | BODY TRAVEL 80" UNIVERSAL 70.47" |
| Other | FLOOR SPACE (WXL) 80" UNIVERSAL 143.7" X 330.9" |
| Other | MACHINE HEIGHT 129.45" |
| Other | TOTAL POWER REQUIRED (MACHINE ONLY) 94.7 KVA |
| Other | NOTE: ACTUAL MACHINE MAIN TRANSFORMER |
| Other | KVA RATING WILL BE GREATER. |
| Other | MACHINE WEIGHT 80" UNIVERSAL 45,194 LBS. |
Do you have a Mazak INTEGREX 70 YB to sell?
We are actively seeking a 2001 MAZAK INTEGREX 70 YB CNC Multi-Tasking Machine. This impressive machine, designed for both turning and milling operations, features a maximum swing of 36.02 inches and a maximum cutting length of 78.15 inches. With a robust main spindle bore of 10.24 inches and a powerful 60 HP motor, the INTEGREX 70 YB is ideal for tackling a variety of complex machining tasks. The machine's 28-inch air chuck ensures secure workpiece handling while maximizing efficiency. Equipped with MAZATROL PC-FUSION CNC 640MT control, this multi-tasking machine allows for precision programming and operation. The X-axis travel of 39.96 inches, Z-axis travel of 80.1 inches, and Y-axis travel of +/- 5.91 inches provide the versatility needed for intricate machining.
Additionally, the machine includes a chip conveyor and a coolant system through the milling head, further enhancing its operational capabilities. As machine owners, you may be considering selling your INTEGREX 70 YB for various reasons. Perhaps you are upgrading to newer technology, downsizing your operations, or liquidating assets due to a plant closure. Whatever your reason, we understand that selling a used CNC machine can be a daunting process. At Superior Machine Tools, we aim to simplify that experience for you. We offer nationwide purchasing services and can handle all logistics involved in the sale.
Our team is committed to providing fast payments, ensuring that you receive your funds promptly after the sale. We value your time and aim to make the transition smooth and hassle-free. If you own a 2001 MAZAK INTEGREX 70 YB or similar models, we encourage you to reach out to us. Selling your machine to Superior Machine Tools means you are partnering with a reliable buyer who respects your needs and understands the value of your equipment. Let us help you turn your unused or underused machinery into cash today.
